Publishing LOD with a bent toward archivists

August 16th, 2014


eye candy by Eric

This essay provides an overview of linked open data (LOD) with a bent towards archivists. It enumerates a few advantages the archival community has when it comes to linked data, as well as some distinct disadvantages. It demonstrates one way to expose EAD as linked data through the use of XSLT transformations and then through a rudimentary triple store/SPARQL endpoint combination. Enhancements to the linked data publication process are then discussed. The text of this essay in the form of a handout as well as a number of support files is can also be found at http://infomotions.com/sandbox/lodlamday/.

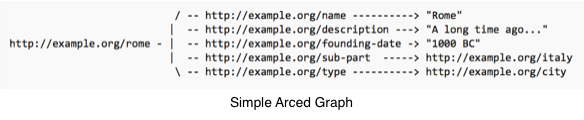

Review of RDF

The ultimate goal of LOD is to facilitate the discovery of new information and knowledge. To accomplish this goal, people are expected to make metadata describing their content available on the Web in one or more forms of RDF — Resource Description Framework. RDF is not so much a file format as a data structure. It is a collection of “assertions” in the form of “triples” akin to rudimentary “sentences” where the first part of the sentence is a “subject”, the second part is a “predicate”, and the third part is an “object”. Both the subjects and predicates are required to be Universal Resource Identifiers — URIs. (Think “URLs”.) The subject URI is intended to denote a person, place, or thing. The predicate URI is used to specify relationships between subjects and the objects. When verbalizing RDF assertions, it is usually helpful to prefix predicate URIs with a “is a” or “has a” phrase. For example, “This book ‘has a’ title of ‘Huckleberry Finn’” or “This university ‘has a’ home page of URL”. The objects of RDF assertions are ideally more URIs but they can also be “strings” or “literals” — words, phrases, numbers, dates, geo-spacial coordinates, etc. Finally, it is expected that the URIs of RDF assertions are shared across domains and RDF collections. By doing so, new assertions can be literally “linked” across the world of RDF in the hopes of establishing new relationships. By doing so new new information and new knowledge is brought to light.

Simple foray into publishing linked open data

Manifesting RDF from archival materials by hand is not an easy process because nobody is going to manually type the hundreds of triples necessary to adequately describe any given item. Fortunately, it is common for the description of archival materials to be manifested in the form of EAD files. Being a form of XML, valid EAD files must be well-formed and conform to a specific DTD or schema. This makes it easy to use XSLT to transform EAD files into various (“serialized”) forms of RDF such as XML/RDF, turtle, or JSON-LD. A few years ago such a stylesheet was written by Pete Johnston for the Archives Hub as a part of the Hub’s LOCAH project. The stylesheet outputs XML/RDF and it was written specifically for Archives Hub EAD files. It has been slightly modified here and incorporated into a Perl script. The Perl script reads the EAD files in a given directory and transforms them into both XML/RDF and HTML. The XML/RDF is intended to be read by computers. The HTML is intended to be read by people. By simply using something like the Perl script, an archive can easily participate in LOD. The results of these efforts can be seen in the local RDF and HTML directories. Nobody is saying the result is perfect nor complete, but it is more than a head start, and all of this is possible because the content of archives is often times described using EAD.

Triple stores and SPARQL endpoints

By definition, linked data (RDF) is structured data, and structured data lends itself very well to relational database applications. In the realm of linked data, these database applications are called “triple stores”. Database applications excel at the organization of data, but they are also designed to facilitate search. In the realm of relational databases, the standard query language is called SQL, and there is a similar query language for triples stores. It is called SPARQL. The term “SPARQL endpoints” is used denote a URL where SPARQL queries can be applied to a specific triple store.

4store is an open source triple store application which also supports SPARQL endpoints. Once compiled and installed, it is controlled and managed through a set of command-line applications. These applications support the sorts of things one expects with any other database application such as create database, import into database, search database, dump database, and destroy database. Two other commands turn on and turn off SPARQL endpoints.

For the purposes of LODLAM Training Day, a 4store triple store was created, filled with sample data, and made available as a SPARQL endpoint. If it has been turned on, then the following links ought to return useful information and demonstrating additional ways of publishing linked data:

Advantages and disadvantages

The previous sections demonstrate the ease at which archival metadata can be published as linked data. These demonstrations are not the the be-all nor end-all of linked data the publication process. Additional techniques could be employed. Exploiting content negotiation in response to a given URI is an excellent example. Supporting alternative RDF serializations is another example. It behooves the archivist to provide enhanced views of the linked data, which are sometimes called “graphs”. The linked data can be combined with the linked data of other publishers to implement even more interesting services, views, and graphs. All of these things are advanced techniques requiring the skills of additional people (graphic designers, usability experts, computer programmers, systems administrators, allocators of time and money, project managers, etc.). Despite this, given the tools outlined above, it is not too difficult to publish linked data now and today. Such are the advantages.

On the other hand, there are at least two distinct disadvantages. The most significant derives from the inherent nature of archival material. Archival material is almost always rare or unique. Because it is rare and unique, there are few (if any) previously established URIs for the people and things described in archival collections. This is unlike the world of librarianship, where the materials of libraries are often owned my multiple institutions. Union catalogs share authority lists denoting people and institutions. Shared URIs across domains is imperative for the idea of the Semantic Web to come to fruition. The archival community has no such collection of shared URIs. Maybe the community-wide implementation and exploitation of Encoded Archival Context for Corporate Bodies, Persons, and Families (EAC-CPF) can help resolve this problem. After all, it too is a form of XML which lends itself very will to XSLT transformation.

Second, and almost as importantly, the use of EAD is not really the best way manifest archival metadata for linked data publication. EADs are finding aids. They are essentially narrative essays describing collections as a whole. They tell stories. The controlled vocabularies articulated in the header do not necessarily apply to each of the items in the container list. For good reasons, the items in the container list are minimally described. Consequently, the resulting RDF statement come across rather thin and poorly linked to fuller descriptions. Moreover, different archivists put different emphases on different aspect of EAD description. This makes amalgamated collections of archival linked data difficult to navigate; the linked data requires cleaning and normalization. The solution to these problems might be to create and maintain archival collections in database applications, such as ArchivesSpace, and have linked data published from there. By doing so the linked data publication efforts of the archival community would be more standardized and somewhat centralized.

Summary

This essay has outlined the ease at which archival metadata in the form of EAD can be easily published as linked data. The result is far from perfect, but a huge step in the right direction. Publishing linked data is not an event, but rather an iterative process. There is always room for improvement. Starting today, publish your metadata as linked data.

Fun with Koha

July 19th, 2014

These are brief notes about my recent experiences with Koha.

Introduction

koha logoAs you may or may not know, Koha is a grand daddy of library-related open source software, and it is an integrated library system to boot. Such are no small accomplishments. For reasons I will not elaborate upon, I’ve been playing with Koha for the past number of weeks, and in short, I want to say, “I’m impressed.” The community is large, international, congenial, and supportive. The community is divided into a number of sub-groups: developers, committers, commercial support employees, and, of course, librarians. I’ve even seen people from another open source library system (Evergreen) provide technical support and advice. For the most part, everything is on the ‘Net, well laid out, and transparent. There are some rather “organic” parts to the documentation akin to an “English garden”, but that is going to happen in any de-centralized environment. All in all, and without any patronizing intended, “Kudos to Koha!”

Installation

Looking through my collection of tarballs, I see I’ve installed Koha a number of times over the years, but this time it was challenging. Sparing you all the details, I needed to use a specific version of MySQL (version 5.5), and I had version 5.6. The installation failure was not really Koha’s fault. It is more the fault of MySQL because the client of MySQL version 5.6 outputs a warning message to STDOUT when a password is passed on the command line. This message confused the Koha database initialization process, thus making Koha unusable. After downgrading to version 5.5 the database initialization process was seamless.

My next step was to correctly configure Zebra — Koha’s default underlying indexer. Again, I had installed from source, and my Zebra libraries, etc. were saved in a directory different from the configuration files created by the Koha’s installation process. After correctly updating the value of modulePath to point to /usr/local/lib/idzebra-2.0/ in zebra-biblios-dom.cfg, zebra-authorities.cfg, zebra-biblios.cfg, and zebra-authorities-dom.cfg I could successfully index and search for content. I learned this from a mailing list posting.

Koha “extras”

Koha comes (for free) with a number of “extras”. For example, the Zebra indexer can be deployed as both a Z39.50 server as well as an SRU server. Turning these things on was as simple as uncommenting a few lines in the koha-conf.xml file and opening a few ports in my firewall. Z39.50 is inherently unusable from a human point of view so I didn’t go into configuring it, but it does work. Through the use of XSL stylesheets, SRU can be much more usable. Luckily I have been here before. For example, a long time ago I used Zebra to index my Alex Catalogue as well as some content from the HathiTrust (MBooks). The hidden interface to the Catalogue sports faceted searching and used to support spelling corrections. The MBooks interface transforms MARCXML into simple HTML. Both of these interfaces are quite zippy. In order to get Zebra to recognize my XSL I needed to add an additional configuration directive to my koha-conf.xml file. Specifically, I need to add a docpath element to my public server’s configuration. Once I re-learned this fact, implementing a rudimentary SRU interface to my Koha index was easy and results are returned very fast. I’m impressed.

My big goal is to figure out ways Koha can expose its content to the wider ‘Net. To this end sKoha comes with an OAI-PMH interface. It needs to be enabled, and can be done through the Koha Web-based backend under Home -> Koha Administration -> Global Preferences -> General Systems Preferences -> Web Services. Once enabled, OAI sets can be created through the Home -> Administration -> OAI sets configuration module. (Whew!) Once this is done Koha will respond to OAI-PMH requests. I then took it upon myself to transform the OAI output into linked data using a program called OAI2LOD. This worked seamlessly, and for a limited period of time you can browse my Koha’s cataloging data as linked data. The viability of the resulting linked data is questionable, but that is another blog posting.

Ideas and next steps

Library catalogs (OPACs, “discovery systems”, whatever you want to call them) are not simple applications/systems. They are a mixture of very specialized inventory lists, various types of people with various skills and authorities, indexing, and circulation, etc. Then we — as librarians — add things like messages of the day, record exporting, browsable lists, visualizations, etc. that complicate the whole thing. It is simply not possible to create a library catalog in the “Unix way“. The installation of Koha was not easy for me. There are expenses with open source software, and I all but melted down my server during the installation process. (Everything is now back to normal.) I’ve been advocating open source software for quite a while, and I understand the meaning of “free” in this context. I’m not complaining. Really.

Now that I’ve gotten this far, my next step is to investigate the feasibility of using a different indexer with Koha. Zebra is functional. It is fast. It is multi-faceted (all puns intended). But configuring it is not straight-forward, and its community of support is tiny. I see from rooting around in the Koha source code that Solr has been explored. I have also heard through the grapevine that ElasticSearch has been explored. I will endeavor to explore these things myself and report on what I learn. Different indexers, with more flexible API’s may make the possibility of exposing Koha content as linked data more feasible as well.

Wish me luck.

Fun with ElasticSearch and MARC

June 22nd, 2014

For a good time I have started to investigate how to index MARC data using ElasticSearch. This posting outlines some of my initial investigations and hacks.

ElasticSearch seems to be an increasingly popular indexer. Getting it up an running on my Linux host was… trivial. It comes withe a full-fledged Perl interface. Nice! Since ElasticSearch takes JSON as input, I needed to serialize my MARC data accordingly, and MARC::File::JSON seems to do a fine job. With this in hand, I wrote three programs:

  1. index.pl – create an index of MARC records
  2. get.pl – retrieve a specific record from the index
  3. search.pl – query the index

I have some work to do, obviously. First of all, do I really want to index MARC in its raw, communications format? I don’t think so, but that is where I’ll start. Second, the search script doesn’t really search. Instead it simply gets all the records. This is because I really don’t know how to search yet; I don’t really know how to query fields like “245 subfield a”.

index.pl

#!/usr/bin/perl

# configure
use constant INDEX => 'pamphlets';
use constant MARC  => './pamphlets.marc';
use constant MAX   => 100;
use constant TYPE  => 'marc';

# require
use MARC::Batch;
use MARC::File::JSON;
use Search::Elasticsearch;
use strict;

# initialize
my $batch = MARC::Batch->new( 'USMARC', MARC );
my $count = 0;
my $e     = Search::Elasticsearch->new;

# process each record in the batch
while ( my $record = $batch->next ) {

  # debug
  print $record->title, "\n";

  # serialize the record into json
  my $json = &MARC::File::JSON::encode( $record );

  # increment
  $count++;

  # index; do the work
  $e->index(  index   => INDEX,
                type    => TYPE,
                id      => $count,
                body    => { "$json" }
    );

  # check; only do a few
  last if ( $count > MAX );

}

# done
exit;

get.pl

# configure
use constant INDEX => 'pamphlets';
use constant TYPE  => 'marc';

# require
use MARC::File::JSON;
use Search::Elasticsearch;
use strict;

# initialize
my $e = Search::Elasticsearch->new;

# get; do the work
my $doc = $e->get( index   => INDEX,
                   type    => TYPE,
                   id      => $ARGV[ 0 ]
);

# reformat and output; done
my $record = MARC::Record->new_from_json( keys( $doc->{ '_source' } ) );
print $record->as_formatted, "\n";
exit;

search.pl

# configure
use constant INDEX => 'pamphlets';

# require
use MARC::File::JSON;
use Search::Elasticsearch;
use strict;

# initialize
my $e = Search::Elasticsearch->new;

# search
my $results = $e->search(
  index => INDEX,
    body  => { query => { match_all => { $ARGV[ 0 ] } } }
);

# output
my $hits = $results->{ 'hits' }->{ 'hits' };
for ( my $i = 0; $i <= $#$hits; $i++ ) {

  my $record = MARC::Record->new_from_json( keys( $$hits[ $i ]->{ '_source' } ) );
  print $record->as_formatted, "\n\n";

}

# done
exit;

LiAM source code: Perl poetry

February 17th, 2014

#!/usr/bin/perl # Liam Guidebook Source Code; Perl poetry, sort of # Eric Lease Morgan <emorgan@nd.edu> # February 16, 2014 # done exit;

#!/usr/bin/perl # marc2rdf.pl – make MARC records accessible via linked data # Eric Lease Morgan <eric_morgan@infomotions.com> # December 5, 2013 – first cut; # configure use constant ROOT => ‘/disk01/www/html/main/sandbox/liam’; use constant MARC => ROOT . ‘/src/marc/’; use constant DATA => ROOT . ‘/data/’; use constant PAGES => ROOT . ‘/pages/’; use constant MARC2HTML => ROOT . ‘/etc/MARC21slim2HTML.xsl’; use constant MARC2MODS => ROOT . ‘/etc/MARC21slim2MODS3.xsl’; use constant MODS2RDF => ROOT . ‘/etc/mods2rdf.xsl’; use constant MAXINDEX => 100; # require use IO::File; use MARC::Batch; use MARC::File::XML; use strict; use XML::LibXML; use XML::LibXSLT; # initialize my $parser = XML::LibXML->new; my $xslt = XML::LibXSLT->new; # process each record in the MARC directory my @files = glob MARC . “*.marc”; for ( 0 .. $#files ) { # re-initialize my $marc = $files[ $_ ]; my $handle = IO::File->new( $marc ); binmode( STDOUT, ‘:utf8′ ); binmode( $handle, ‘:bytes’ ); my $batch = MARC::Batch->new( ‘USMARC’, $handle ); $batch->warnings_off; $batch->strict_off; my $index = 0; # process each record in the batch while ( my $record = $batch->next ) { # get marcxml my $marcxml = $record->as_xml_record; my $_001 = $record->field( ’001′ )->as_string; $_001 =~ s/_//; $_001 =~ s/ +//; $_001 =~ s/-+//; print ” marc: $marc\n”; print ” identifier: $_001\n”; print ” URI: http://infomotions.com/sandbox/liam/id/$_001\n”; # re-initialize and sanity check my $output = PAGES . “$_001.html”; if ( ! -e $output or -s $output == 0 ) { # transform marcxml into html print ” HTML: $output\n”; my $source = $parser->parse_string( $marcxml ) or warn $!; my $style = $parser->parse_file( MARC2HTML ) or warn $!; my $stylesheet = $xslt->parse_stylesheet( $style ) or warn $!; my $results = $stylesheet->transform( $source ) or warn $!; my $html = $stylesheet->output_string( $results ); &save( $output, $html ); } else { print ” HTML: skipping\n” } # re-initialize and sanity check my $output = DATA . “$_001.rdf”; if ( ! -e $output or -s $output == 0 ) { # transform marcxml into mods my $source = $parser->parse_string( $marcxml ) or warn $!; my $style = $parser->parse_file( MARC2MODS ) or warn $!; my $stylesheet = $xslt->parse_stylesheet( $style ) or warn $!; my $results = $stylesheet->transform( $source ) or warn $!; my $mods = $stylesheet->output_string( $results ); # transform mods into rdf print ” RDF: $output\n”; $source = $parser->parse_string( $mods ) or warn $!; my $style = $parser->parse_file( MODS2RDF ) or warn $!; my $stylesheet = $xslt->parse_stylesheet( $style ) or warn $!; my $results = $stylesheet->transform( $source ) or warn $!; my $rdf = $stylesheet->output_string( $results ); &save( $output, $rdf ); } else { print ” RDF: skipping\n” } # prettify print “\n”; # increment and check $index++; last if ( $index > MAXINDEX ) } } # done exit; sub save { open F, ‘ > ‘ . shift or die $!; binmode( F, ‘:utf8′ ); print F shift; close F; return; }

#!/usr/bin/perl # ead2rdf.pl – make EAD files accessible via linked data # Eric Lease Morgan <eric_morgan@infomotions.com> # December 6, 2013 – based on marc2linkedata.pl # configure use constant ROOT => ‘/disk01/www/html/main/sandbox/liam’; use constant EAD => ROOT . ‘/src/ead/’; use constant DATA => ROOT . ‘/data/’; use constant PAGES => ROOT . ‘/pages/’; use constant EAD2HTML => ROOT . ‘/etc/ead2html.xsl’; use constant EAD2RDF => ROOT . ‘/etc/ead2rdf.xsl’; use constant SAXON => ‘java -jar /disk01/www/html/main/sandbox/liam/bin/saxon.jar -s:##SOURCE## -xsl:##XSL## -o:##OUTPUT##’; # require use strict; use XML::XPath; use XML::LibXML; use XML::LibXSLT; # initialize my $saxon = ”; my $xsl = ”; my $parser = XML::LibXML->new; my $xslt = XML::LibXSLT->new; # process each record in the EAD directory my @files = glob EAD . “*.xml”; for ( 0 .. $#files ) { # re-initialize my $ead = $files[ $_ ]; print ” EAD: $ead\n”; # get the identifier my $xpath = XML::XPath->new( filename => $ead ); my $identifier = $xpath->findvalue( ‘/ead/eadheader/eadid’ ); $identifier =~ s/[^\w ]//g; print ” identifier: $identifier\n”; print ” URI: http://infomotions.com/sandbox/liam/id/$identifier\n”; # re-initialize and sanity check my $output = PAGES . “$identifier.html”; if ( ! -e $output or -s $output == 0 ) { # transform marcxml into html print ” HTML: $output\n”; my $source = $parser->parse_file( $ead ) or warn $!; my $style = $parser->parse_file( EAD2HTML ) or warn $!; my $stylesheet = $xslt->parse_stylesheet( $style ) or warn $!; my $results = $stylesheet->transform( $source ) or warn $!; my $html = $stylesheet->output_string( $results ); &save( $output, $html ); } else { print ” HTML: skipping\n” } # re-initialize and sanity check my $output = DATA . “$identifier.rdf”; if ( ! -e $output or -s $output == 0 ) { # create saxon command, and save rdf print ” RDF: $output\n”; $saxon = SAXON; $xsl = EAD2RDF; $saxon =~ s/##SOURCE##/$ead/e; $saxon =~ s/##XSL##/$xsl/e; $saxon =~ s/##OUTPUT##/$output/e; system $saxon; } else { print ” RDF: skipping\n” } # prettify print “\n”; } # done exit; sub save { open F, ‘ > ‘ . shift or die $!; binmode( F, ‘:utf8′ ); print F shift; close F; return; }

#!/usr/bin/perl # store-make.pl – simply initialize an RDF triple store # Eric Lease Morgan <eric_morgan@infomotions.com> # # December 14, 2013 – after wrestling with wilson for most of the day # configure use constant ETC => ‘/disk01/www/html/main/sandbox/liam/etc/’; # require use strict; use RDF::Redland; # sanity check my $db = $ARGV[ 0 ]; if ( ! $db ) { print “Usage: $0 <db>\n”; exit; } # do the work; brain-dead my $etc = ETC; my $store = RDF::Redland::Storage->new( ‘hashes’, $db, “new=’yes’, hash-type=’bdb’, dir=’$etc’” ); die “Unable to create store ($!)” unless $store; my $model = RDF::Redland::Model->new( $store, ” ); die “Unable to create model ($!)” unless $model; # “save” $store = undef; $model = undef; # done exit;

#!/user/bin/perl # store-add.pl – add items to an RDF triple store # Eric Lease Morgan <eric_morgan@infomotions.com> # # December 14, 2013 – after wrestling with wilson for most of the day # configure use constant ETC => ‘/disk01/www/html/main/sandbox/liam/etc/’; # require use strict; use RDF::Redland; # sanity check #1 – command line arguments my $db = $ARGV[ 0 ]; my $file = $ARGV[ 1 ]; if ( ! $db or ! $file ) { print “Usage: $0 <db> <file>\n”; exit; } # sanity check #2 – store exists die “Error: po2s file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-po2s.db’ ); die “Error: so2p file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-so2p.db’ ); die “Error: sp2o file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-sp2o.db’ ); # open the store my $etc = ETC; my $store = RDF::Redland::Storage->new( ‘hashes’, $db, “new=’no’, hash-type=’bdb’, dir=’$etc’” ); die “Error: Unable to open store ($!)” unless $store; my $model = RDF::Redland::Model->new( $store, ” ); die “Error: Unable to create model ($!)” unless $model; # sanity check #3 – file exists die “Error: $file not found.\n” if ( ! -e $file ); # parse a file and add it to the store my $uri = RDF::Redland::URI->new( “file:$file” ); my $parser = RDF::Redland::Parser->new( ‘rdfxml’, ‘application/rdf+xml’ ); die “Error: Failed to find parser ($!)\n” if ( ! $parser ); my $stream = $parser->parse_as_stream( $uri, $uri ); my $count = 0; while ( ! $stream->end ) { $model->add_statement( $stream->current ); $count++; $stream->next; } # echo the result warn “Namespaces:\n”; my %namespaces = $parser->namespaces_seen; while ( my ( $prefix, $uri ) = each %namespaces ) { warn ” prefix: $prefix\n”; warn ‘ uri: ‘ . $uri->as_string . “\n”; warn “\n”; } warn “Added $count statements\n”; # “save” $store = undef; $model = undef; # done exit; 10.5 store-search.pl – query a triple store # Eric Lease Morgan <eric_morgan@infomotions.com> # December 14, 2013 – after wrestling with wilson for most of the day # configure use constant ETC => ‘/disk01/www/html/main/sandbox/liam/etc/’; my %namespaces = ( “crm” => “http://erlangen-crm.org/current/”, “dc” => “http://purl.org/dc/elements/1.1/”, “dcterms” => “http://purl.org/dc/terms/”, “event” => “http://purl.org/NET/c4dm/event.owl#”, “foaf” => “http://xmlns.com/foaf/0.1/”, “lode” => “http://linkedevents.org/ontology/”, “lvont” => “http://lexvo.org/ontology#”, “modsrdf” => “http://simile.mit.edu/2006/01/ontologies/mods3#”, “ore” => “http://www.openarchives.org/ore/terms/”, “owl” => “http://www.w3.org/2002/07/owl#”, “rdf” => “http://www.w3.org/1999/02/22-rdf-syntax-ns#”, “rdfs” => “http://www.w3.org/2000/01/rdf-schema#”, “role” => “http://simile.mit.edu/2006/01/roles#”, “skos” => “http://www.w3.org/2004/02/skos/core#”, “time” => “http://www.w3.org/2006/time#”, “timeline” => “http://purl.org/NET/c4dm/timeline.owl#”, “wgs84_pos” => “http://www.w3.org/2003/01/geo/wgs84_pos#” ); # require use strict; use RDF::Redland; # sanity check #1 – command line arguments my $db = $ARGV[ 0 ]; my $query = $ARGV[ 1 ]; if ( ! $db or ! $query ) { print “Usage: $0 <db> <query>\n”; exit; } # sanity check #2 – store exists die “Error: po2s file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-po2s.db’ ); die “Error: so2p file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-so2p.db’ ); die “Error: sp2o file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-sp2o.db’ ); # open the store my $etc = ETC; my $store = RDF::Redland::Storage->new( ‘hashes’, $db, “new=’no’, hash-type=’bdb’, dir=’$etc’” ); die “Error: Unable to open store ($!)” unless $store; my $model = RDF::Redland::Model->new( $store, ” ); die “Error: Unable to create model ($!)” unless $model; # search #my $sparql = RDF::Redland::Query->new( “CONSTRUCT { ?a ?b ?c } WHERE { ?a ?b ?c }”, undef, undef, “sparql” ); my $sparql = RDF::Redland::Query->new( “PREFIX modsrdf: <http://simile.mit.edu/2006/01/ontologies/mods3#>\nSELECT ?a ?b ?c WHERE { ?a modsrdf:$query ?c }”, undef, undef, ‘sparql’ ); my $results = $model->query_execute( $sparql ); print $results->to_string; # done exit;

#!/usr/bin/perl # store-dump.pl – output the content of store as RDF/XML # Eric Lease Morgan <eric_morgan@infomotions.com> # # December 14, 2013 – after wrestling with wilson for most of the day # configure use constant ETC => ‘/disk01/www/html/main/sandbox/liam/etc/’; # require use strict; use RDF::Redland; # sanity check #1 – command line arguments my $db = $ARGV[ 0 ]; my $uri = $ARGV[ 1 ]; if ( ! $db ) { print “Usage: $0 <db> <uri>\n”; exit; } # sanity check #2 – store exists die “Error: po2s file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-po2s.db’ ); die “Error: so2p file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-so2p.db’ ); die “Error: sp2o file not found. Make a store?\n” if ( ! -e ETC . $db . ‘-sp2o.db’ ); # open the store my $etc = ETC; my $store = RDF::Redland::Storage->new( ‘hashes’, $db, “new=’no’, hash-type=’bdb’, dir=’$etc’” ); die “Error: Unable to open store ($!)” unless $store; my $model = RDF::Redland::Model->new( $store, ” ); die “Error: Unable to create model ($!)” unless $model; # do the work my $serializer = RDF::Redland::Serializer->new; print $serializer->serialize_model_to_string( RDF::Redland::URI->new, $model ); # done exit;

#!/usr/bin/perl # sparql.pl – a brain-dead, half-baked SPARQL endpoint # Eric Lease Morgan <eric_morgan@infomotions.com> # December 15, 2013 – first investigations # require use CGI; use CGI::Carp qw( fatalsToBrowser ); use RDF::Redland; use strict; # initialize my $cgi = CGI->new; my $query = $cgi->param( ‘query’ ); if ( ! $query ) { print $cgi->header; print &home; } else { # open the store for business my $store = RDF::Redland::Storage->new( ‘hashes’, ‘store’, “new=’no’, hash-type=’bdb’, dir=’/disk01/www/html/main/sandbox/liam/etc’” ); my $model = RDF::Redland::Model->new( $store, ” ); # search my $results = $model->query_execute( RDF::Redland::Query->new( $query, undef, undef, ‘sparql’ ) ); # return the results print $cgi->header( -type => ‘application/xml’ ); print $results->to_string; } # done exit; sub home { # create a list namespaces my $namespaces = &namespaces; my $list = ”; foreach my $prefix ( sort keys $namespaces ) { my $uri = $$namespaces{ $prefix }; $list .= $cgi->li( “$prefix – ” . $cgi->a( { href=> $uri, target => ‘_blank’ }, $uri ) ); } $list = $cgi->ol( $list ); # return a home page return <<EOF <html> <head> <title>LiAM SPARQL Endpoint</title> </head> <body style=’margin: 7%’> <h1>LiAM SPARQL Endpoint</h1> <p>This is a brain-dead and half-baked SPARQL endpoint to a subset of LiAM linked data. Enter a query, but there is the disclaimer. Errors will probably happen because of SPARQL syntax errors. Remember, the interface is brain-dead. Your milage <em>will</em> vary.</p> <form method=’GET’ action=’./’> <textarea style=’font-size: large’ rows=’5′ cols=’65′ name=’query’ /> PREFIX hub:<http://data.archiveshub.ac.uk/def/> SELECT ?uri WHERE { ?uri ?o hub:FindingAid } </textarea><br /> <input type=’submit’ value=’Search’ /> </form> <p>Here are a few sample queries:</p> <ul> <li>Find all triples with RDF Schema labels – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=PREFIX+rdf%3A%3Chttp%3A%2F%2Fwww.w3.org%2F2000%2F01%2Frdf-schema%23%3E%0D%0ASELECT+*+WHERE+%7B+%3Fs+rdf%3Alabel+%3Fo+%7D%0D%0A”>PREFIX rdf:<http://www.w3.org/2000/01/rdf-schema#> SELECT * WHERE { ?s rdf:label ?o }</a></code></li> <li>Find all items with MODS subjects – <code><a href=’http://infomotions.com/sandbox/liam/sparql/?query=PREFIX+mods%3A%3Chttp%3A%2F%2Fsimile.mit.edu%2F2006%2F01%2Fontologies%2Fmods3%23%3E%0D%0ASELECT+*+WHERE+%7B+%3Fs+mods%3Asubject+%3Fo+%7D’>PREFIX mods:<http://simile.mit.edu/2006/01/ontologies/mods3#> SELECT * WHERE { ?s mods:subject ?o }</a></code></li> <li>Find every unique predicate – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=SELECT+DISTINCT+%3Fp+WHERE+%7B+%3Fs+%3Fp+%3Fo+%7D”>SELECT DISTINCT ?p WHERE { ?s ?p ?o }</a></code></li> <li>Find everything – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=SELECT+*+WHERE+%7B+%3Fs+%3Fp+%3Fo+%7D”>SELECT * WHERE { ?s ?p ?o }</a></code></li> <li>Find all classes – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=SELECT+DISTINCT+%3Fclass+WHERE+%7B+%5B%5D+a+%3Fclass+%7D+ORDER+BY+%3Fclass”>SELECT DISTINCT ?class WHERE { [] a ?class } ORDER BY ?class</a></code></li> <li>Find all properties – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=SELECT+DISTINCT+%3Fproperty%0D%0AWHERE+%7B+%5B%5D+%3Fproperty+%5B%5D+%7D%0D%0AORDER+BY+%3Fproperty”>SELECT DISTINCT ?property WHERE { [] ?property [] } ORDER BY ?property</a></code></li> <li>Find URIs of all finding aids – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=PREFIX+hub%3A%3Chttp%3A%2F%2Fdata.archiveshub.ac.uk%2Fdef%2F%3E+SELECT+%3Furi+WHERE+%7B+%3Furi+%3Fo+hub%3AFindingAid+%7D”>PREFIX hub:<http://data.archiveshub.ac.uk/def/> SELECT ?uri WHERE { ?uri ?o hub:FindingAid }</a></code></li> <li>Find URIs of all MARC records – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=PREFIX+mods%3A%3Chttp%3A%2F%2Fsimile.mit.edu%2F2006%2F01%2Fontologies%2Fmods3%23%3E+SELECT+%3Furi+WHERE+%7B+%3Furi+%3Fo+mods%3ARecord+%7D%0D%0A%0D%0A%0D%0A”>PREFIX mods:<http://simile.mit.edu/2006/01/ontologies/mods3#> SELECT ?uri WHERE { ?uri ?o mods:Record }</a></code></li> <li>Find all URIs of all collections – <code><a href=”http://infomotions.com/sandbox/liam/sparql/?query=PREFIX+mods%3A%3Chttp%3A%2F%2Fsimile.mit.edu%2F2006%2F01%2Fontologies%2Fmods3%23%3E%0D%0APREFIX+hub%3A%3Chttp%3A%2F%2Fdata.archiveshub.ac.uk%2Fdef%2F%3E%0D%0ASELECT+%3Furi+WHERE+%7B+%7B+%3Furi+%3Fo+hub%3AFindingAid+%7D+UNION+%7B+%3Furi+%3Fo+mods%3ARecord+%7D+%7D%0D%0AORDER+BY+%3Furi%0D%0A”>PREFIX mods:<http://simile.mit.edu/2006/01/ontologies/mods3#> PREFIX hub:<http://data.archiveshub.ac.uk/def/> SELECT ?uri WHERE { { ?uri ?o hub:FindingAid } UNION { ?uri ?o mods:Record } } ORDER BY ?uri</a></code></li> </ul> <p>This is a list of ontologies (namespaces) used in the triple store as predicates:</p> $list <p>For more information about SPARQL, see:</p> <ol> <li><a href=”http://www.w3.org/TR/rdf-sparql-query/” target=”_blank”>SPARQL Query Language for RDF</a> from the W3C</li> <li><a href=”http://en.wikipedia.org/wiki/SPARQL” target=”_blank”>SPARQL</a> from Wikipedia</li> </ol> <p>Source code — <a href=”http://infomotions.com/sandbox/liam/bin/sparql.pl”>sparql.pl</a> — is available online.</p> <hr /> <p> <a href=”mailto:eric_morgan\@infomotions.com”>Eric Lease Morgan <eric_morgan\@infomotions.com></a><br /> January 6, 2014 </p> </body> </html> EOF } sub namespaces { my %namespaces = ( “crm” => “http://erlangen-crm.org/current/”, “dc” => “http://purl.org/dc/elements/1.1/”, “dcterms” => “http://purl.org/dc/terms/”, “event” => “http://purl.org/NET/c4dm/event.owl#”, “foaf” => “http://xmlns.com/foaf/0.1/”, “lode” => “http://linkedevents.org/ontology/”, “lvont” => “http://lexvo.org/ontology#”, “modsrdf” => “http://simile.mit.edu/2006/01/ontologies/mods3#”, “ore” => “http://www.openarchives.org/ore/terms/”, “owl” => “http://www.w3.org/2002/07/owl#”, “rdf” => “http://www.w3.org/1999/02/22-rdf-syntax-ns#”, “rdfs” => “http://www.w3.org/2000/01/rdf-schema#”, “role” => “http://simile.mit.edu/2006/01/roles#”, “skos” => “http://www.w3.org/2004/02/skos/core#”, “time” => “http://www.w3.org/2006/time#”, “timeline” => “http://purl.org/NET/c4dm/timeline.owl#”, “wgs84_pos” => “http://www.w3.org/2003/01/geo/wgs84_pos#” ); return \%namespaces; }

# package Apache2::LiAM::Dereference; # Dereference.pm – Redirect user-agents based on value of URI. # Eric Lease Morgan <eric_morgan@infomotions.com> # December 7, 2013 – first investigations; based on Apache2::Alex::Dereference # configure use constant PAGES => ‘http://infomotions.com/sandbox/liam/pages/’; use constant DATA => ‘http://infomotions.com/sandbox/liam/data/’; # require use Apache2::Const -compile => qw( OK ); use CGI; use strict; # main sub handler { # initialize my $r = shift; my $cgi = CGI->new; my $id = substr( $r->uri, length $r->location ); # wants RDF if ( $cgi->Accept( ‘text/html’ )) { print $cgi->header( -status => ’303 See Other’, -Location => PAGES . $id . ‘.html’, -Vary => ‘Accept’ ) } # give them RDF else { print $cgi->header( -status => ’303 See Other’, -Location => DATA . $id . ‘.rdf’, -Vary => ‘Accept’, “Content-Type” => ‘application/rdf+xml’ ) } # done return Apache2::Const::OK; } 1; # return true or die

LiAM SPARQL Endpoint

December 15th, 2013

I have implemented a brain-dead and half-baked SPARQL endpoint to a subset of LiAM linked data, but there is the disclaimer. Errors will probably happen because of SPARQL syntax errors. Your milage will vary.

Here are a few sample queries:

Source code — sparql.pl — is online.

EAD2RDF

November 10th, 2013

I have played with an XSL stylesheet called EAD2RDF with good success.

Archivists use EAD as their “MARC” records. EAD has its strengths and weakness, just like any metadata standard, but EAD is a flavor of XML. As such it lends itself to XSLT processing. EAD2RDF is a stylesheet written by Pete Johnston. After running it through an XSLT 2.0 processor, it outputs an RDF/XML file. (I have made a resulting RDF/XML file available for you to peruse.) The result validates against the W3C RDF Validator but won’t have a graph created, probably because there are so many triples in the result.

I think archivists as well as computer technologists working in archives ought to take a closer look at EAD2RDF.

OAI2LOD Server

November 10th, 2013

At first glance, a software package called OAI2LOD Server seems to work pretty well, and on a temporary basis, I have made one of my OAI repositories available as Linked Data — http://infomotions.com:2020/

OAI2LOD Server is a software package, written by Bernhard Haslhofer in 2008. Building, configuring, and running the server was all but painless. I think this has a great deal of potential, and I wonder why it has not been more widely exploited. For more information about the server, see “The OAI2LOD Server: Exposing OAI-PMH Metadata as Linked Data

TriLUG, open source software, and satisfaction

December 9th, 2011

This is posting about TriLUG, open source software, and satisfaction for doing a job well-done.

A long time ago, in a galaxy far far away, I lived in Raleigh (North Carolina), and a fledgling community was growing called the Triangle Linux User’s Group (TriLUG). I participated in a few of their meetings. While I was interested in open source software, I was not so interested in Linux. My interests were more along the lines of the application stack, not necessarily systems administration nor Internet networking.

I gave a presentation to the User’s Group on the combined use of PHP and MySQL — “Smart HTML pages with PHP“. Because of this I was recruited to write a Web-based membership application. Since flattery will get you everywhere with me, I was happy to do it. After a couple of weeks, the application was put into place and seemed to function correctly. That was a bit more than ten years ago, probably during the Spring of 2001.

The other day I got an automated email message from the User’s Group. The author of the message wanted to know if I wanted to continue my membership? I replied how that was not necessary since I had long since moved away to northern Indiana.

I then got to wondering whether or not the message I received had been sent by my application. It was a long shot, but I enquired anyway. Sure enough, I got a response from Jeff Schornick, a TriLUG board member, who told me “Yes, your application was the tool that had been used.” How satisfying! How wonderful to know that something I wrote more than ten years ago was still working.

Just as importantly, Jeff wanted to know about open source licensing. I had not explicitly licensed the software, something that I only learned was necessary from Dan Chudnov later. After a bit of back and forth, the original source code was supplemented with the GNU Public License, packaged up, and distributed from a Git repository. Over the years the User’s Group had modified it to overcome a few usability issues, and they wanted to distribute the source code using the most legitimate means possible.

This experience was extremely enriching. I originally offered my skills, and they returned benefits to the community greater than the expense of my time. The community then came back to me because they wanted to express their appreciation and give credit where credit was due.

Open source software not necessarily about computer technology. It is just as much, if not more, about people and the communities they form.

Use & understand: A DPLA beta-sprint proposal

September 1st, 2011

This essay describes, illustrates, and demonstrates how the Digital Public Library of America (DPLA) can build on the good work of others who support the creation and maintenance of collections and provide value-added services against texts — a concept we call “use & understand”.

This document is available in a three of formats: 1) HTML – for viewing on a desktop Web browser, 2) PDF – for printing, the suggested format, and 3) ePub – for reading on your portable device.

Eric Lease Morgan <emorgan@nd.edu>
University of Notre Dame

September 1, 2011

Table of Contents

Executive summary

This Digital Public Library of America (DPLA) beta-sprint proposal “stands on the shoulders of giants” who have successfully implemented the processes of find & get — the traditional functions of libraries. We are sure the DPLA will implement the services of find & get very well. To supplement, enhance, and distinguish the DPLA from other digital libraries, we propose the implementation of “services against text” in an effort to support use & understand.

Globally networked computers combined with an abundance of full text, born-digital materials has made the search engines of Google, Yahoo, and Microsoft a reality. Advances in information retrieval have made relevancy ranking the norm as opposed to the exception. All of these things have made the problems of find & get less acute than they used to be. The problems of find & get will never be completely resolved, but they seem adequately addressed for the majority of people. Enter a few words into a search box. Click go. And select items of interest.

Use & understand is an evolutionary step in the processes and functions of a library. These processes and functions enable the reader to ask and answer questions of large and small sets of documents relatively easily. Through the use of various text mining techniques, the reader can grasp quickly the content of documents, extract some of their meaning, and evaluate them more thoroughly when compared to the traditional application of metadata. Some of these processes and functions include: word/phrase frequency lists, concordances, histograms illustrating the location of words/phrases in a text, network diagrams illustrating what author say “in the same breath” when they mention a given word, plotting publication dates on a timeline, measuring the weight of a concept in a text, evaluating texts based on parts-of-speech, supplementing texts with Wikipedia articles, and plotting place names on a world maps.

We do not advocate the use of these services as replacements for “close” reading. Instead we advocate them as tools to supplement learning, teaching, and scholarship – functions of any library.


Use & understand: A video introduction

Introduction and assumptions

Libraries are almost always a part of a larger organization, and their main functions can be divided into collection building, conservation & preservation, organization & classification, and public service. These functions are very much analogous to the elements of the DPLA articulated by John Palfrey: community, content, metadata, code, and tools & services.

This beta-Sprint proposal is mostly about tools & services, but in order to provide the proposed tools & services, we make some assumptions about and build upon the good work of people working on community, content, metadata, and code. These assumptions follow.

First, the community the DPLA encompasses is just about everybody in the United States. It is not only about the K-12 population. It is not only about students, teachers, and scholars in academia. It is not only about life-long learners, the businessperson, or municipal employees. It is about all of these communities at once and at the same time because we believe all of these communities have more things in common than they have differences. The tools & services described in this proposal can be useful to anybody who is able to read.

Second, the content of the DPLA is not licensed, much of it is accessible in full-text, and freely available for downloading and manipulation. More specifically, this proposal assumes the collections of the DPLA include things like but not necessarily limited to: digitized versions of public domain works, the full-text of open access scholarly journals and/or trade magazines, scholarly and governmental data sets, theses & dissertations, a substantial portion of the existing United States government documents, the archives of selected mailing lists, and maybe even the archives of blog postings and Twitter feeds. Moreover, we assume the DPLA is not merely a metadata repository, but also makes immediately available plain text versions of much of its collection.

Third, this proposal does not assume very many things regarding metadata beyond the need for the most basic of bibliographic information such as unique identifiers, titles, authors, subject/keyword terms, and location codes such as URLs. It does not matter to this proposal how the bibliographic metadata is encoded (MARC, XML, linked data, etc.). On the other hand, this proposal will advocate for additional bibliographic metadata, specifically, metadata that is quantitative in nature. These additions are not necessary for the fulfillment of the proposal, but rather side benefits because of it.

Finally, this proposal assumes the code & infrastructure of the DPLA supports the traditional characteristics of a library. In other words, it is assumed the code & infrastructure of the DPLA provide the means for the creation of collections and the discovery of said items. As described later, this proposal is not centered on the processes of find & get. Instead this proposal assumes the services of find & get are already well-established. This proposal is designed to build on the good work of others who have already spent time and effort in this area. We hope to “stand on the shoulders of giants” in this regard.

Given these assumptions about community, content, metadata, and infrastructure, we will now describe how the DPLA can exploit the current technological environment to provide increasingly useful services to its clientele. Through the process we hope to demonstrate how libraries could evolve and continue to play a meaningful role in our society.

Find & get

While it comes across as trite, with the advent of ubiquitous and globally networked computers, the characteristics of data and information have fundamentally changed. More specifically, since things like books and journals — the traditional meat and potatoes of libraries — no longer need to be manifested in analog forms, their digital manifestations lend themselves to new functionality. For example, digital versions of books and journals can be duplicated exactly, and they are much less limited to distinct locations in space and time. Similarly, advances in information retrieval have made strict Boolean logic applied to against relational databases less desirable to the reader than relevancy ranking algorithms and the application of term frequency/inverse document frequency models against indexes. Combined together these things have made the search engines of Google, Yahoo, and Microsoft a reality. Compared to twenty years ago, this has made the problem of find & get much less acute.

While the problem of find & get will never completely be resolved, many readers (not necessarily librarians) feel the problem is addressed simply enough. Enter a few words into a search box, click Go, and select items of interest. We don’t know about you, but we can find plenty of data & information. The problem now is what to do with it once it is identified.

We are sure any implementation of the DPLA will include superb functionality for find & get. In fact, our proposal assumes such functionality will exist. Some infrastructure will be created allowing for the identification of relevant content. At the very least this content will be described using metadata and/or the full-text will be mirrored locally. This metadata and/or full-text will be indexed and a search interface applied against it. Search results will probably be returned in any number of ordered lists: relevancy, date, author, title, etc. The interface may very well support functionality based on facets. The results of these searches will never be perfect, but in the eyes of most readers, the results will probably be good enough. This being the case, our proposal is intended to build on this good work and enable the reader to do things with content they identify. Thus we propose to build on the process of find & get to support a process we call use & understand.

Use & understand

The problem of find & get is always a means to an end, and very rarely the end itself. People want to do things with the content they find. We call these things “services against texts”, and they are denoted by action verbs including but not limited to:

* analyze * annotate * cite * compare & contrast * confirm * count & tabulate words, phrases, and ideas * delete * discuss * evaluate * find opposite * find similar * graph & visualize * learn from * plot on a map * plot on a timeline * purchase * rate * read * review * save * share * summarize * tag * trace idea * transform

We ask ourselves, “What services can be provisioned to make the sense of all the content one finds on the Internet or in a library? How can the content of a digital work be ‘read’ in such a way that key facts and concepts become readily apparent? And can this process be applied to an entire corpus and/or a reader’s personal search results?” Thus, we see the problem of find & get evolving into the problem of use & understand.

In our opinion, the answers to these questions lie in the combination of traditional library principles with the application of computer science. Because libraries are expected to know the particular information needs of their constituents, libraries are uniquely positioned to address the problem of use & understand. What do people do with the data and information they find & get from libraries, or for that matter, any other place? In high school and college settings, students are expected to read literature and evaluate it. They are expected to compare & contrast it with similar pieces of literature, extract themes, and observe how authors use language. In a more academic setting scholars and researchers are expected to absorb massive amounts of non-fiction in order to keep abreast of developments in their fields. Each disciplinary corpus is whittled down by peer-review. It is reduced through specialization. Now-a-days the corpus is reduced even further through the recommendation processes of social networking. The resulting volume of content is still considered overwhelming by many. Use & understand is a next step in the information flow. It comes after find & get, and it is a process enabling the reader to better ask and answer questions of an entire collection, subcollection, or individual work. By applying digital humanities computing process, specifically text mining and natural language processing, the process of use & understand can be supported by the DPLA. The examples in the following sections demonstrate and illustrate how this can be done.

Again, libraries are almost always a part of a larger organization, and there is an expectation libraries serve their constituents. Libraries do this in any number ways, one of which is attempting to understanding the “information needs” of the broader organization to provide both just-in-time as well as just-in-case collections and services. We are living, working, and learning in an environment of information abundance, not scarsity. Our production economy has all but migrated to a service economy. One of the fuels of service economies is data and information. As non-profit organizations, libraries are unable to compete when it comes to data provision. Consequently libraries may need to refocus and evolve. By combining its knowledge of the reader with the content of collections, libraries can fill a growing need. Because libraries are expected to understand the partiular needs of their particular clientele, libraries are uniquely positioned to fill this niche. Not Google. Not Yahoo. Not Microsoft.

Examples

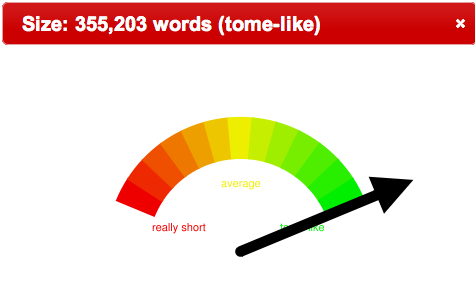

Measure size

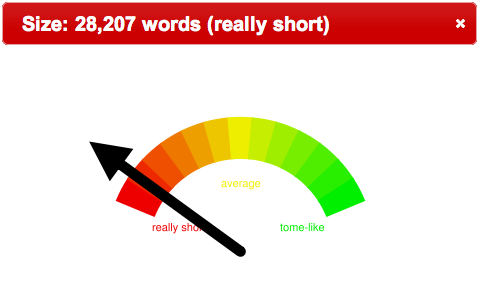

One of the simplest and most rudimentary services against texts the DPLA could provide in order to promote use & understand is to measure the size of documents in terms of word counts in addition to page counts.

Knowing the size of a document is important to the reader because it helps them determine the time necessary to consume the document’s content as well as implies the document’s depth of elaboration. In general, shorter books require less time to read, and longer books go into greater detail. But denoting the sizes of books in terms of page counts is too ambiguous to denote length. For any given book, a large print addition will contain more pages than the same book in paperback form, which will be different again from its first edition hard cover manifestation.

Not only can much of the ambiguity of document lengths be eliminated if they were denoted with word counts, but if bibliographic descriptions were augmented with word counts then meaningful comparisons between texts could easily be brought to light.

Suppose the DPLA has a collection of one million full-text items. Suppose the number of words in each item were counted and saved in bibliographic records. Thus, search results could then be sorted by length. Once bibliographic records were supplemented with word counts it would be possible to calculate the average length of a book in the collection. Similarly, the range of lengths could be associated with a relative scale such as: tiny books, short books, average length books, long books, and tome-like books. Bibliographic displays could then be augmented with gauge-like graphics to illustrate lengths.

Such was done against the Alex Catalogue of Electronic Texts. There are (only) 14,000 full-text documents in the collection, but after counting all the words in all the documents it was determined that the average length of a document is about 150,000 words. A search was then done against the Catalogue for Charles Dickens’s A Christmas Carol, Oliver Twist and David Copperfield, and the lengths of the resulting documents were compared using gauge-like graphics, as illustrated below:

A Christmas Carol

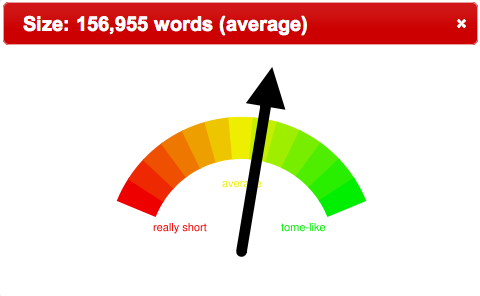

Oliver Twist
David Copperfield

At least a couple of conclusions can be quickly drawn from this comparison. A Christmas Carol is much shorter than David Copperfield, and Oliver Twist is an average length document.

There will certainly be difficulties counting the number of words in documents. Things will need to be considered in order to increase accuracy, things like: whether or not the document in question has been processed with optical character recognition, whether or not things like chapter headers are included, whether or not back-of-the-book indexes are included, whether nor not introductory materials are included. All of this also assumes a parsing program can be written which accurately extracts “words” from a document. The later is, in fact, fodder for an entire computer science project.

Despite these inherent difficulties, denoting the number of words in a document and placing the result in bibliographic records can help foster use & understand. We believe counting the number of words in a document will result in a greater number of benefits when compared to costs.

Measure difficulty

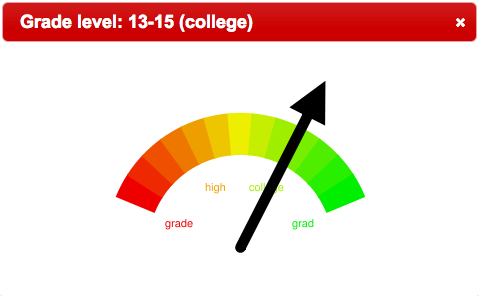

Measuring the inherent difficulty — readability score — of texts enables the reader to make judgements about those texts, and in turn, fosters use & understand. By including such measurements in the bibliographic records and search results, the DPLA will demonstrate ways it can “save the time of the reader”.

In the last century J. Peter Kincaid, Rudolf Flesch, and Robert Gunning worked both independently as well as collaboratively to create models of readability. Based on a set of factors (such as but not limited to: lengths of documents measured in words, the number of paragraphs in documents, the number of sentences in paragraphs, the number of words in sentences, the complexity of words, etc.) numeric values were calculated to determined the reading levels of documents. Using these models things like Dr. Seuss books are consistently determined to be easy to read while things like insurance policies are difficult. Given the full-text of a document in plain text form, it is almost trivial to compute any number of readability scores. The resulting values could be saved in bibliographic records, and these values could be communicated to the reader with the use of gauge-like graphics.

In a rudimentary way, the Alex Catalogue of Electronic texts has implemented this idea. For each item in the Catalogue the Fog, Flesch, and Kincaid readability scores have been calculated and saved to the underlying MyLibrary database. Searches were done against the Catalogue for Charles Dickens’s David Copperfield, Henry David Thoreau’s Walden, and Immanual Kant’s Fundamental Principles Of The Metaphysics Of Morals. The following graphics illustrate the readability scores of each. We believe the results are not surprising, but they are illustrative of this technique’s utility:

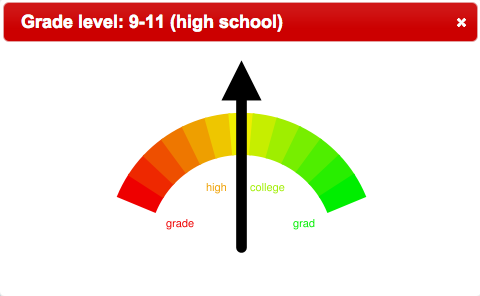

readability-dickens
David Cooperfield
Walden
Metaphysics of Morals

If readability scores were integrated into bibliographic search engines (“catalogs”), then it would be possible to limit search results by reading level or even sort search results by them. Imagine being able to search a library catalog for all items dealing with Neo-Platonism, asking for shorter items as opposed to longer items, and limiting things further by readability score.

Readability scores are not intended to be absolute. Instead they are intended to be used as guidelines. If the reader is a novice when it comes to particular topic, and the reader is of high school age, that does not mean they are unable to read college level material. Instead, the readability scores would be used to set the expectations of the reader and help them make judgements before they begin reading a book.

Side bar on quantitative bibliographic data

Bibliographic systems are notoriously qualitative in nature making the process of compare & contrast between bibliographic items very subjective. If there were more quantitative data associated with bibliographic records, then mathematical processes could be applied against collections as a whole, subsets of the collection, or even individual items.

Library catalogs are essentially inventory lists denoting what a library owns (or licenses). For the most part, catalogs are used to describe the physical nature of a library collection: authors, titles, publication dates, pagination and size, notes (such as “Includes index.”), and subject terms. Through things like controlled vocabularies and authority lists, the nature of a collection can be posited, and some interesting questions can be answered. Examples include: what is the average age of the items in the collection, what are the collection’s major subject areas, who are the predominate authors of the works in the collection. These are questions whose answers are manifested now-a-days through faceted browse interfaces, but they are questions of the collection as a whole or subsets of the collection, not individual works. They are questions librarians find interesting, not necessarily readers who want to evaluate the significance of a given work.

If the bibliographic systems were to contain quantitative data, then the bibliographic information systems would be more meaningful and more useful. Dates are a very good example. The dates (years) in a library catalog denote when the item in hand (a book) was published, not when the idea in the book was manifested. Consequently, if Plato’s Dialogs were published today, then its library catalog record would have a value of 2011. While such a thing is certainly true, it is misleading. Plato did not write the Dialogs this year. They were written more than 2,500 years ago. Given our current environment, why can’t a library catalog include this sort of information?

Suppose the reader wanted to read all the works of Henry David Thoreau. Suppose the library catalog had accurately denoted the all the items in its collection by this author with the authority term, “Thoreau, Henry David”. Suppose the reader did an author search for “Thoreau, Henry David” and a list of twenty-five items was returned. Finally, suppose the reader wanted to begin by reading Thoreau’s oldest work first and progress to his latest. Using a library catalog, such a thing would not be possible because the dates in bibliographic records denote the date of publication, not the date of first conception or manifestation.

Suppose the reader wanted to plot on a timeline when Thoreau’s works were published, and the reader wanted to compare this with the complete works of Longfellow or Walt Whitman. Again, such a thing would not be possible because the dates in a library catalog denote publication dates, not when ideas were originally manifested. Why shouldn’t a library catalog enable the reader to easily create timelines?

To make things even more complicated, publication dates are regularly denoted as strings, not integers. Examples include: [1701], 186?, 19–, etc. These types of values are ambiguous. Their meaning and interpretation is bound to irregularly implemented “syntactical sugar”. Consequently, without all but heroic efforts, it is not easy to do any sort of compare & contrast evaluation when it comes to dates.

The DPLA has the incredible opportunity to make a fresh start when it comes to the definition of library catalogs. We know the DPLA will not want to reinvent the wheel. At the same time we believe the DPLA will want to exploit the current milieu, re-evaluate the possibilities of computer technology, and consequently refine and evolve the meaning of “catalog”. Traditional library catalogs were born in an era of relative information scarcity. Today we are dealing with problems of abundance. Library catalogs need to do many things differently in order to satisfy the needs/desires of the current reader. “Next-generation library catalogs” can do so much more than provide access to local collections. Facilitating ways to evaluate collections, sub-collections, or individual items through the use of quantitative analysis is just one example.

Measure concept

By turning a relevancy ranking algorithm on its head, it is be possible to measure the existence of concepts of a given work. If this were done for many works, then new comparisons between works would be possible, and again, making it possible for the reader to easily compare & contrast items in a corpus or search results. Of all the services against texts examples in this proposal, we know this one is the most avant-garde.

Term frequency/inverse document frequency (TFIDF) is a model at the heart of many relevancy ranking algorithms. Mathematically stated, TFIDF equals:

( c / t ) * log( d / f )

where:

  • c = number of times the query terms appear in a document
  • t = total number of words in a document
  • d = total number of documents in a corpus
  • f = total number of documents containing the query terms

In other words, TFIDF calculates relevancy (“aboutness”) by multiplying the ratio of query words and document sizes to the ratio of number of documents in a corpus and total frequency of query terms. Thus, if there are three documents each containing the word “music” three times, but one of them is 100 words long and the other two are 200 words long, then the first document is considered more relevant than the other two.

Written language — which is at the very heart of library content — is ambiguous, nuanced, and dynamic. Few, if any, concepts can be completely denoted by a single word or phrase. Instead, a single concept may be better described using a set of words or phrases. For example, music might be denoted thusly:

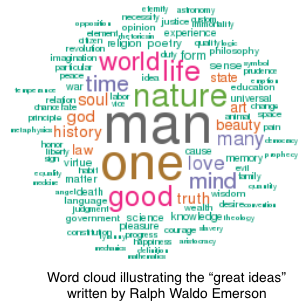

art, Bach, Baroque, beat, beauty, blues, composition, concert, dance, expression, guitar, harmony, instrumentation, key, keyboard, melody, Mozart, music, opera, percussion, performance, pitch, recording, rhythm, scale, score, song, sound, time, violin

If any document used some or all of these words with any degree of frequency, then it would probably be safe to say the document was about music. This “aboutness” could then be calculated by summing the TFIDF scores of all the music terms in a given document — a thing called the “document overlap measure”. Thus, one document might have a total music “aboutness” measure of 105 whereas another document might have a measure of 55.

We used a process very similar to the one outlined above in an effort to measure the “greatness” of the set of books called The Great Books Of The Western World. Each book in the set was evaluated in terms of it use of the 102 “great ideas” enumerated in the set’s introduction. We summed the computed TFIDF values of each great idea in each book, a value we call the Great Ideas Coefficient. Through this process we determined the “greatest” book in the set was Aristotleʼs Politics because it alluded to the totality of “great ideas” more than the others. Furthermore, we determined that Shakespeare wrote seven of the top ten books when it comes to the idea of love. The following figure illustrates the result of these comparisons. The bars above the line represent books greater than the hypothetical average great book, and the bars below the line are less great than the others.

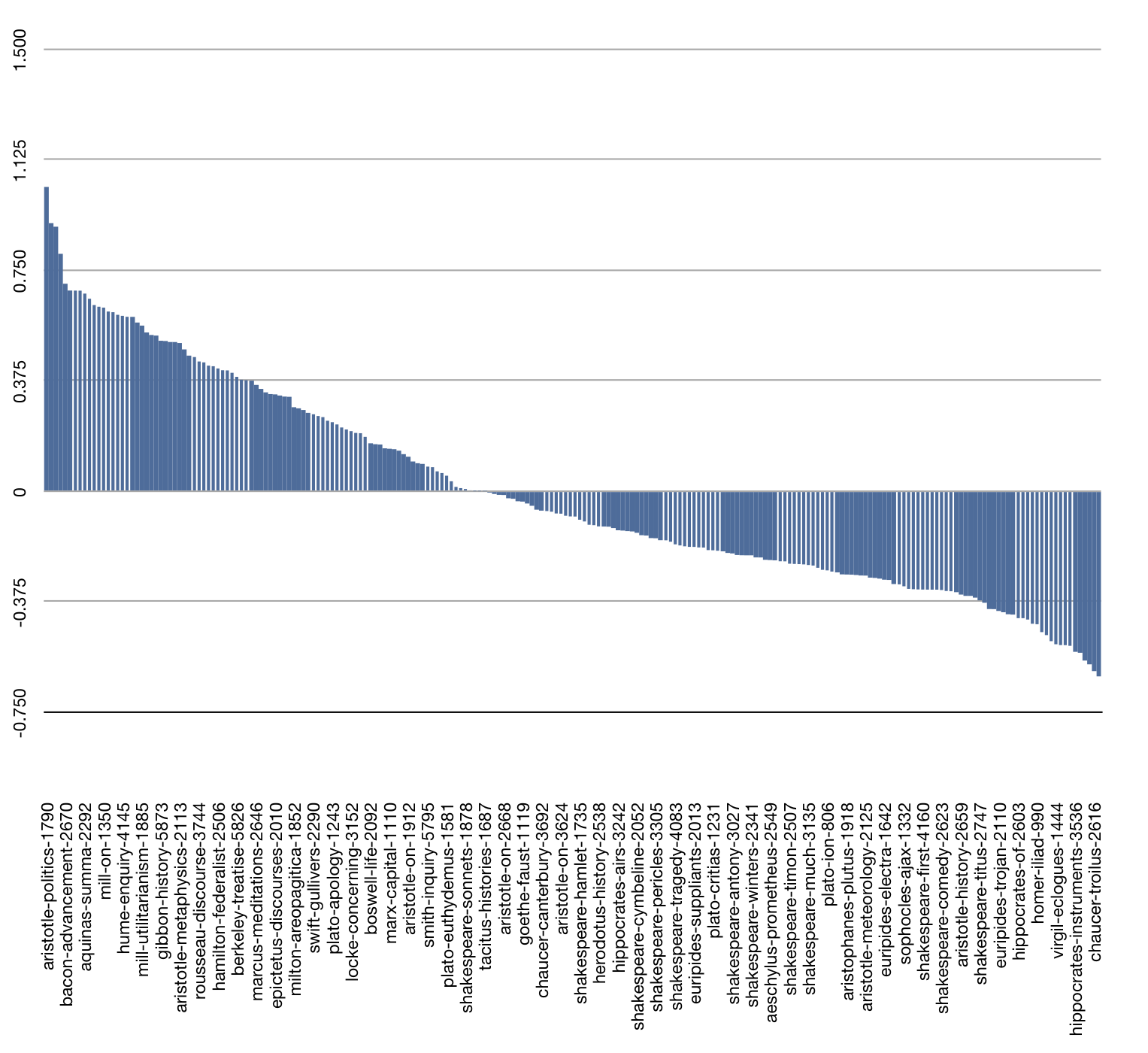

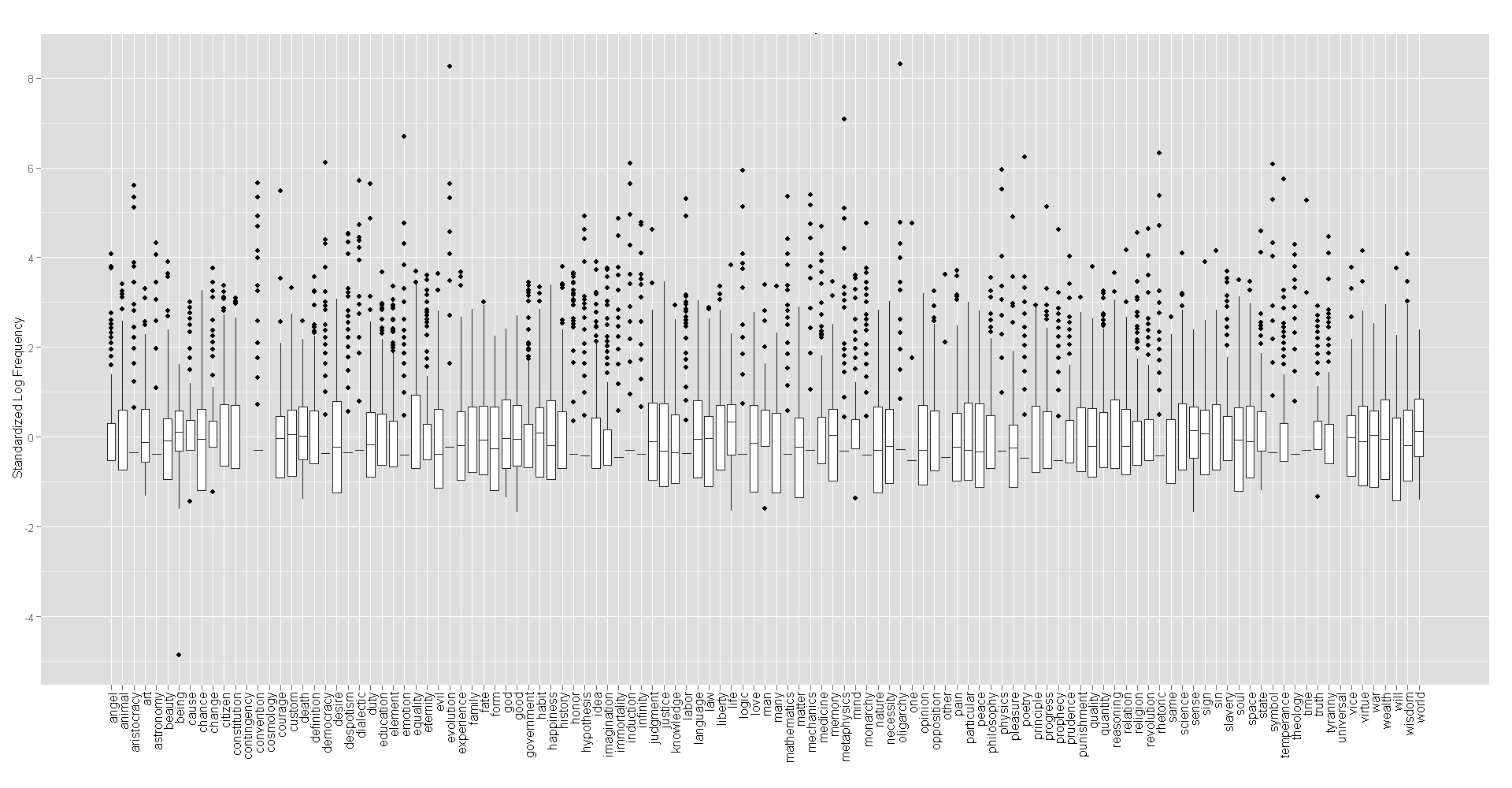

great-books
Measuring the “greatness” of The Great Books of the Western World

The DPLA could implement very similar services against texts in one and/or two ways. First, it could denote any number of themes (like music or “great ideas”) and calculate coefficients denoting the aboutness of those themes for every book in the collection. Readers could then limit their searches by these coefficients or sort their search results accordingly. Find all books with subjects equal to philosophy. Sort the result by the philosophy coefficient.

Second, and possibly better, the DPLA could enable readers to denote their own more specialized and personalized themes. These themes and their aboutness coefficients could then be applied, on-the-fly, to search results. For example, find all books with subject terms equal to gardening, and sort the result by the reader’s personal definition of biology.

As stated earlier, written language is ambiguous and nuanced, but at the same time it is, to some degree, predicable. If it were not predicable, then no one would be able to understand another. Because of this predicability, language, to some degree, can be quantified. Once quantified, it can be measured. Once measured it can be sorted and graphed, and thus new meanings can be expressed and evaluated. The coefficients described in this section, like the measurements of length and readability, are to be taken with a grain of salt, but they can help the reader use & understand library collections, sub-collections, and individual items.

Plot on a timeline

Plotting things on a timeline is an excellent way to put events into perspective, and when written works are described with dates, then they are amenable to visualizations.

The DPLA could put this idea into practice by applying it against search results. The reader could do a search in the “catalog”, and the resulting screen could have a link labeled something like “Plot on a timeline”. By clicking the link the dates of search results could be extracted from the underlying metadata, plotted on a timeline, and displayed. At the very least such a function would enable the reader to visualize when things were published and answer rudimentary questions such as: are there clusters of publications, do the publications span a large swath of time, did one particular author publishing things on regular basis?

The dates in traditional bibliographic metadata denote the publication of an item, as mentioned previously. Consequently the mapping of monographs may not be useful as desired. On the other hand, the dates associated with things of a serial nature (blog postings, twitter feeds, journal articles, etc.) are more akin to dates of conception. We imagine the DPLA systematically harvesting, preserving, and indexing freely available and open access serial literature. This content is much more amenable to plotting on a timeline as illustrated below:

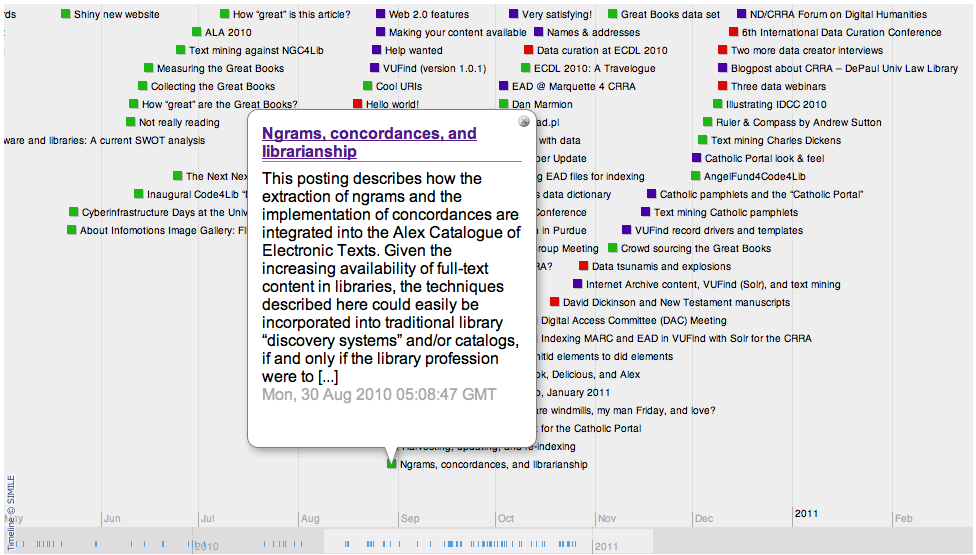

timeline
Timeline illustrating when serial literature was published

The timeline was created by aggregating selected RSS feeds, parsing out the dates, and plotting them accordingly. Different colored items represent different feeds. Each item in the timeline is hot providing the means to read the items’ abstracts and optionally viewing the items’ full text.

Plotting things on a timeline is another way the DPLA can build on the good work of find & get and help the reader use & understand.

Count word and phrase frequencies

Akin to traditional back-of-the-book indexes, word and phrase frequency tabulations are one of the simplest and most expedient ways of providing access to and overviews of a text. Like tables of contents and indexes, word and phrase frequecies increase a text’s utility and make texts easier to understand.

Back-of-the-book indexes are expensive to create and the product of an individual’s perspective. Moreover, back-of-the-book indexes are not created for fiction. Why not? Given the full-text of a work any number of back-of-the-book index-like displays could be created to enhance the reader’s experience. For example, by simply tabulating the occurrences of every word in a text (sans, maybe, stop words), and then displaying the resulting list alphabetically, the reader can have a more complete back-of-the-book index generated for them without the help of a subjective indexer. The same tabulation could be done again but instead of displaying the content alphabetically, the results could be ordered by frequency as in a word cloud. In either case each entry in the “index” could be associated with an integer denoting the number of times the word (or phrase) occurs in the text. The word (or phrase) could then be linked to a concordance (see below) in order to display how the word (or phrase) was used in context.

Take for example, Henry David Thoreaus’s Walden. This is a piece of non-fiction about a man who lives alone in the woods by a pond for just about two years. In the book’s introduction Ralph Waldo Emerson describes Thoreau as a man with a keen sense of physical space and an uncanny ability for measurement. The book itself describes one person’s vision of what it means to be human. Upon the creation and display of the 100 most frequently used two-word phrases (bigrams), these statements about the book are born out. Notice the high frequency of quantitative references as well as reference to men:

Compare Walden to James Joyce’s Ulysses, a fictional work describing a day in the life of Leopold Bloom as he walks through Dublin. Notice how almost every single bigram is associated with the name of a person

Interesting? Some people may react to these illustrations and say, “So what? I already knew that.” To which we reply, “Yes, but what about those people who haven’t read these texts?” Imagine being able to tabulate the word frequencies against any given set of texts — a novel, a journal article, a piece of non-fiction, all of the works by a given author or in a given genre. The results are able to tell the reader things about the works. For example, it might alert the reader to the central importance of a person named Bloom. When Bloom is mentioned in the text, then maybe the reader ought to be extra attention to what is being said. Frequency tabulations and word cloud can also alert the reader to what is not said in a text. Apparently religion is not a overarching theme in either of the above examples.

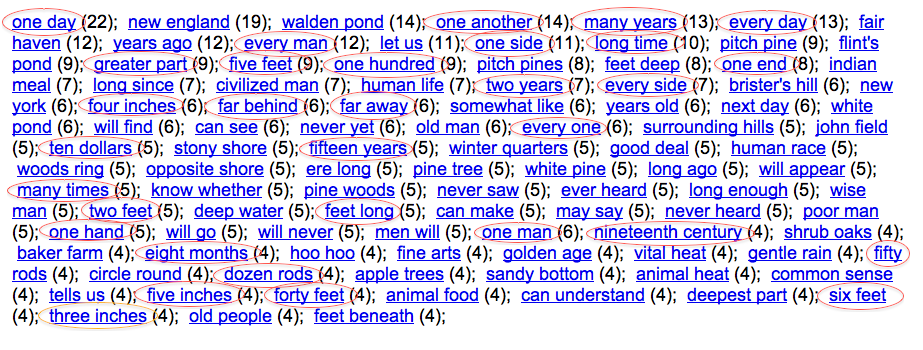

frequency walden
The 100 most frequent two-word phrases in Walden

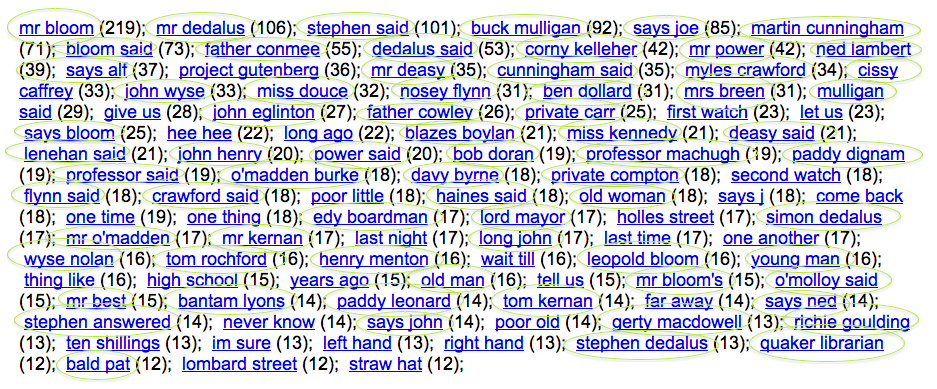

frequency ulysses
The 100 most frequent two-word phrases in Ulysses

It is possible to tabulate word frequencies across texts. Again, using A Christmas Carol, Oliver Twist, and David Copperfield as examples, we discover the 6-word phrase “taken with a violent fit of” appears in both David Copperfield and A Christmas Carol. Moreover, the bigram “violent fit” appears on all three works. Specifically, characters in these three Dickens stories have violent fits of laughter, crying, trembling, and coughing. By concatenating the stories together and applying concordancing methods to them (described below) we see there are quite a number of violent things in the three stories:

  n such breathless haste and violent agitation, as seemed to betoken so
  ood-night, good-night!' The violent agitation of the girl, and the app
  sberne) entered the room in violent agitation. 'The man will be taken,
  o understand that, from the violent and sanguinary onset of Oliver Twi
  one and all, to entertain a violent and deeply-rooted antipathy to goi
  eep a little register of my violent attachments, with the date, durati
  cal laugh, which threatened violent consequences. 'But, my dear,' said
  in general, into a state of violent consternation. I came into the roo
  artly to keep pace with the violent current of her own thoughts: soon
  ts and wiles have brought a violent death upon the head of one worth m
   There were twenty score of violent deaths in one long minute of that
  id the woman, making a more violent effort than before; 'the mother, w
   as it were, by making some violent effort to save himself from fallin
  behind. This was rather too violent exercise to last long. When they w
   getting my chin by dint of violent exertion above the rusty nails on
  en who seem to have taken a violent fancy to him, whether he will or n
  peared, he was taken with a violent fit of trembling. Five minutes, te
  , when she was taken with a violent fit of laughter; and after two or
  he immediate precursor of a violent fit of crying. Under this impressi
  and immediately fell into a violent fit of coughing: which delighted T
  of such repose, fell into a violent flurry, tossing their wild arms ab
   and accompanying them with violent gesticulation, the boy actually th
  ght I really must have laid violent hands upon myself, when Miss Mills
   arm tied up, these men lay violent hands upon him -- by doing which,
   every aggravation that her violent hate -- I love her for it now -- c
   work himself into the most violent heats, and deliver the most wither
  terics were usually of that violent kind which the patient fights and
   me against the donkey in a violent manner, as if there were any affin
   to keep down by force some violent outbreak. 'Let me go, will you,--t
  hands with me - which was a violent proceeding for him, his usual cour
  en.' 'Well, sir, there were violent quarrels at first, I assure you,'
  revent the escape of such a violent roar, that the abused Mr. Chitling
  t gradually resolved into a violent run. After completely exhausting h
  , on which he ever showed a violent temper or swore an oath, was this
  ullen, rebellious spirit; a violent temper; and an untoward, intractab
  fe of Oliver Twist had this violent termination or no. CHAPTER III REL
  in, and seemed to presage a violent thunder-storm, when Mr. and Mrs. B
  f the theatre, are blind to violent transitions and abrupt impulses of
  ming into my house, in this violent way? Do you want to rob me, or to

These observations simply beg other questions. Is violence a common theme in Dickens’ works? What other adjectives are used to a greater or lesser degree in Dickens’ works? How do the use of these adjectives differ from other authors of the same time period or within the canon of English literature?

While works of fiction are the basis of most of the examples, there is no reason why similar processes couldn’t be applied to non-fiction as well. We also understand that the general reader will not be interested in these sorts of services against texts. Instead we see these sorts of services more applicable to students in high school and college. We also see these sorts of services being applicable to the scholar or researcher who needs to “read” large numbers of journal article. Finally, we do not advocate the use of these sorts of tools as a replacement for traditional “close” reading. These tools are supplements and additions to the reading process just as tables of contents and back-of-the-book indexes are today.

Display in context

Concordances — one of the oldest literary tools in existence — have got to be some of the more useful services against texts a library could provide because they systematically display words and concepts within the context of the larger written work making it very easy to compare & contrast usage. Originally implemented by Catholic priests as early as 1250 to study religious texts, concordances (sometimes called “key word in context” or KWIC indexes) trivialize the process of seeing how a concept is expressed in a work.

As an example of how concordances can be used to analyze texts, we asked ourselves, “How do Plato, Aristotle, and Shakespeare differ in their definition of man?” To answer this question we amassed all the works of the authors, searched each for the phrase “man is”, and displayed the results in a concordance-like fashion. From the results the reader can see how the definitions of Plato and Aristotle are very similar but much different from Shakespeare’s:

Plato’s definitions

  stice, he is met by the fact that man is a social being, and he tries to harmoni
  ption of Not-being to difference. Man is a rational animal, and is not -- as man
  ss them. Or, as others have said: Man is man because he has the gift of speech;
  wise man who happens to be a good man is more than human (daimonion) both in lif
  ied with the Protagorean saying, 'Man is the measure of all things;' and of this

Aristotle’s definitions

  ronounced by the judgement 'every man is unjust', the same must needs hold good
  ts are formed from a residue that man is the most naked in body of all animals a
  ated piece at draughts. Now, that man is more of a political animal than bees or
  hese vices later. The magnificent man is like an artist; for he can see what is
  lement in the essential nature of man is knowledge; the apprehension of animal a

Shakespeare’s definitions

   what I have said against it; for man is a giddy thing, and this is my conclusio
   of man to say what dream it was: man is but an ass, if he go about to expound t
  e a raven for a dove? The will of man is by his reason sway'd; And reason says y
  n you: let me ask you a question. Man is enemy to virginity; how may we barricad
  er, let us dine and never fret: A man is master of his liberty: Time is their ma

We do not advocate the use of concordances as the be-all and end-all of literary analysis but rather a pointer to bigger questions. Think how much time and energy would have been required if the digitized texts of each of these authors was not available, and if computers could not be applied against them. Concordances, as well as the other services against texts outlined in this proposal, make it easier to ask questions of collections, sub-collections, and individual works. This ease-of-use empowers the reader to absorb, observe, and learn from texts in ways that was not possible previously. We do not advocate these sort of services against texts as replacements for traditional reading processes, but rather we advocate them as alternative and supplemental tools for understanding the human condition or physical environment as manifested in written works.

Herein lies one of the main points of our proposal. By creatively exploiting the current environment where full-text abounds and computing horsepower is literally at everybody’s fingertips, libraries can assist the reader to “read” texts in new and different ways — ways that make it easier to absorb larger amounts of information and ways to understand it from new and additional perspectives. Concordances are just one example.

Display the proximity of a given word to other words

Visualizing the words frequently occurring near a given word is often descriptive and revealing. With the availability of full-text content, creating such visualization is almost trivial and have the potencial for greatly enhancing the reader’s experience. This enhanced reading process is all but impossible when the written word is solely accessible in analog forms, but in a digital form the process is almost easy.

For example, first take the word woodchuck as found in Henry David Thoreau’s Walden. Upon reading the book the reader learns of his literal distaste for the woodchuck. They eat is beans, and he wants to skin them. Compare the same author’s allusions to woodchucks in his work Two Weeks On The Concord And Merrimack Rivers. In this work, when woodchucks are mentioned he also alludes to other small animals such as foxes, minks, muskrats, and squirrels. In other words, the connotations surrounding woodchucks and between the two books are different as illustrated by the following network diagrams:

frequency walden

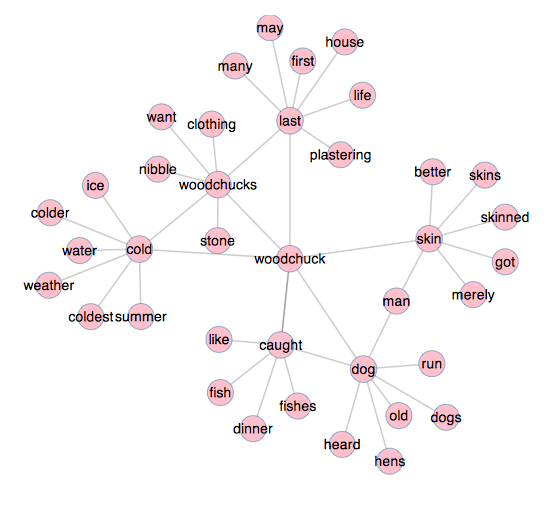

“woodchuck” in Walden
frequency walden

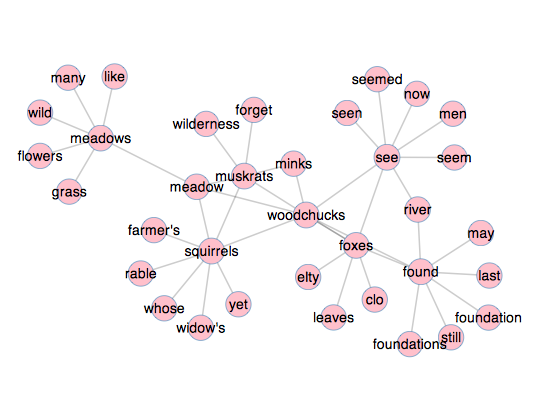

“woodchuck” in Rivers

The given word — woodchuck — is in the center. Each of the words connected to the given word are the words appearing most frequently near the given word. This same process is then applied to the connected words. Put another way, these network diagrams literally illustrate what an author says, “in the same breath” when they use a given word. Such visualizations are simply not possible through the process of traditional reading without spending a whole lot of effort. The DPLA could implement the sort of functionality described in this section and make the reader’s experience richer. It demonstrates how libraries can go beyond access (a problem that is increasingly not a problem) and move towards use & understand.

We do not advocate the use of this technology to replace traditional analysis, but rather to improve upon it. This technology, like all of the examples in the proposal, makes it easier to find interesting patterns for further investigation.

Display location of word in a text

Sometimes displaying where in a text, percentage-wise, a word or phrase exists can raise interesting questions, and by providing tools to do such visualizations the DPLA will foster the ability to more easily ask interesting questions.

For example, what comes to mind when you think of Daniel Defoe’s Robinson Curose? Do you think of a man shipwrecked on an island and the cannibal named Friday? Ask yourself, when in the story is the man shipwrecked and when does he meet Friday? Early in the story? In the middle? Towards the end? If you guessed early in the story, then you would be wrong because most of the story takes place on a boat, and only three-quarters of the way through the book does Friday appear, as illustrated by the following histogram:

We all know that Herman Melville’s book Moby Dick is about a sailor hunting a great white whale. Looking at a histogram of where the word “white” appears in the story, we see a preponderance of its occurrence forty percent the way through the book. Why? Upon looking at the book more closely we see that one of the chapters is entitled “The Whiteness of the Whale”, and it is almost entirely about the word “white”. This chapter appears about forty percent through the text. Who ever heard of an entire book chapter whose theme was a color?

robinson-crusoe

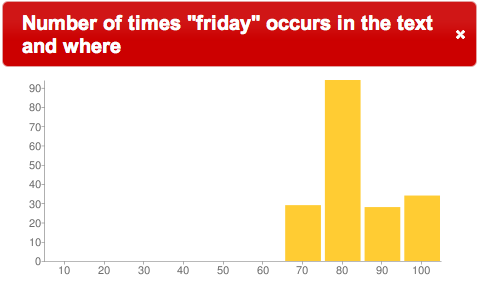

“friday” in Crusoe
moby dick
“white” in Moby Dick

In a Catholic pamphlet entitled Letters of an Irish Catholic Layman the word “catholic” is one of the more common and appears frequently in the text towards the beginning as well as the end

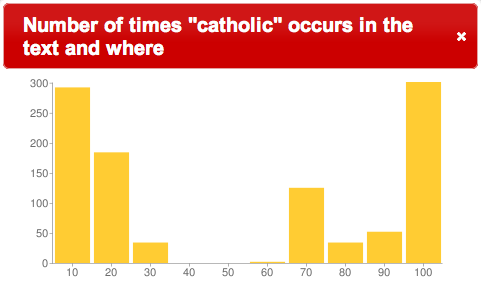

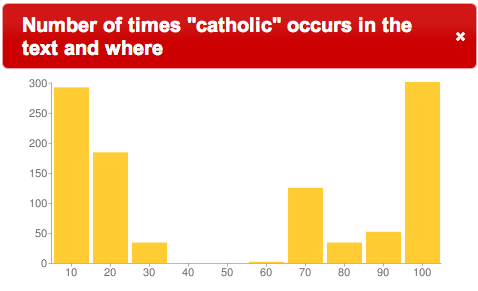

catholic
“catholic” in Layman
lake erie

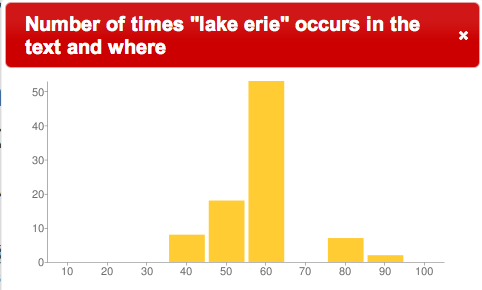

“lake erie” in Layman

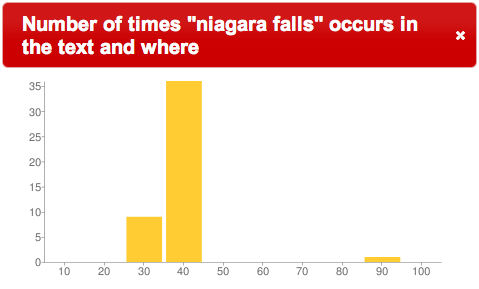

niagraa

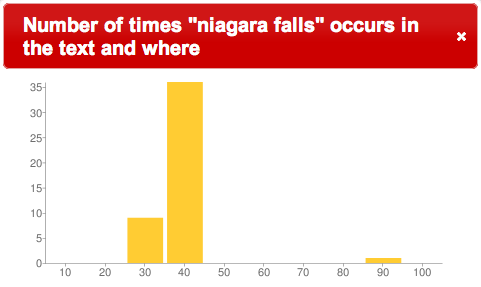

“niagara falls” in Layman

After listing the most common two-word phrases in the book we see that there are many references to places in upper New York state:

two word phrases
The 100 most frequently used two-word phrases in Letters of an Irish Catholic Layman

Looking more closely at the locations of “Lake Erie” and “Niagra Falls” in the text, we see that these things are referenced in the places where the word “catholic” is not mentioned

Does the author go off on a tangent? Are there no catholics in these areas? The answers to the questions, and the question of why are left up to the reader, but the important point is the ability to quickly “read” the texts in ways that were not feasible when the books were solely in analog form. Displaying where in a text words or phrases occur literally illustrates new ways to view the content of libraries. These are examples of how the DPLA can build on find & get and increase use & understand.

Elaborate upon and visualize parts-of-speech analysis

Written works can be characterized through parts-of-speech analysis. This analysis can be applied to the whole of a library collection, subsets of the collection, or individual works. The DPLA has the opportunity to increase the functionality of a library by enabling the reader to elaborate upon and visualize parts-of-speech analysis. Such a process will facilitate greater use of the collection and improve understanding of it.

Because the English language follows sets of loosely defined rules, it is possible to systematically classify the words and phrases of written works into parts-of-speech. These include but are not limited to: nouns, pronouns, verbs, adjectives, adverbs, prepositions, punctuation, etc. Once classified, these parts-of-speech can be tabulated and quantitative analysis can begin.

Our own foray’s into parts-of-speech analysis, where the relative percentage use of parts-of-speech were compared, proved fruitless. But the investigation inspired other questions whose answers may be more broadly applied. More specifically, students and scholars are often times more interested in what an author says as opposed to how they say it. Such investigations can gleaned not so much from gross parts-of-speech measurements but rather the words used to denote each parts-of-speech. For example, the following table lists the 10 most frequently used pronouns and the number of times they occur in four works. Notice the differences:

Walden Rivers Northanger Sense
I (1,809) it (1,314) her (1,554) her (2,500)
it (1,507) we (1,101) I (1,240) I (1,917)
my (725) his (834) she (1,089) it (1,711)
he (698) I (756) it (1,081) she (1,553)
his (666) our (677) you (906) you (1,158)
they (614) he (649) he (539) he (1,068)
their (452) their (632) his (524) his (1,007)
we (447) they (632) they (379) him (628)
its (351) its (487) my (342) my (598)
who (340) who (352) him (278) they (509)

While the lists are similar, they are characteristic of work from which they came. The first — Walden — is about an individual who lives on a lake. Notice the prominence of the word “I” and “my”. The second — Rivers — is written by the same author as the first but is about brothers who canoe down a river. Notice the higher occurrence of the word “we” and “our”. The later two works, both written by Jane Austin, are works with females as central characters. Notice how the words “her” and “she” appear in these lists but not in the former two. It looks as if there are patterns or trends to be measured here.

If the implementation of the DPLA were to enable the reader to do this sort of parts-of-speech analysis against search results, then the search results may prove to be more useful.

Nouns and pronouns play a special role in libraries because they are the foundation of controlled vocabularies, authority lists, and many other reference tools. Imagine being able to extract and tabulate all the nouns (things, names, and places) from a text. A word cloud like display would convey a lot of meaning about the text. On the other hand, a simple alphabetical list of the result could very much function like a back-of-the-book index. Each noun or noun phrase could be associated with any number of functions such as but not limited to:

  • look-up in a controlled vocabulary list in order to find more
  • look-up in an authority list in order to find more
  • show in context of the given work (concordance)
  • elaborate upon using a dictionary, thesaurus, encyclopedia, etc.
  • plot on a map

We demonstrated the beginnings of the look-up functions in a Code4Lib Journal article called “Querying OCLC Web Services for Name, Subject, and ISBN“. The concordance functionality is described above. The elaboration service is common place in today’s ebook readers. Through an interface designed for mobile devices, we implemented a combination of the elaborate and plot on a map services as a prototype. In this implementation the reader is presented with a tiny collection of classic works. The reader is then given the opportunity to browse the names or places index. After the reader selects a specific name or place the application displays a descriptive paragraph of the selection, an image of the selection, and finally, hypertext links to a Wikipedia article or a Google Maps display.

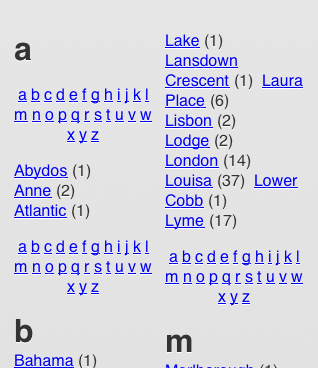

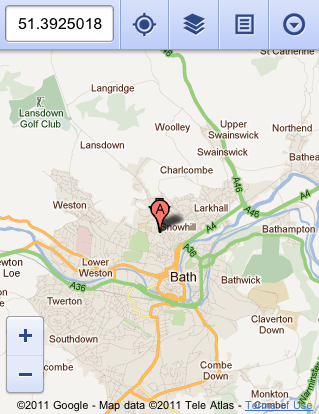

name place name place name place name place name place

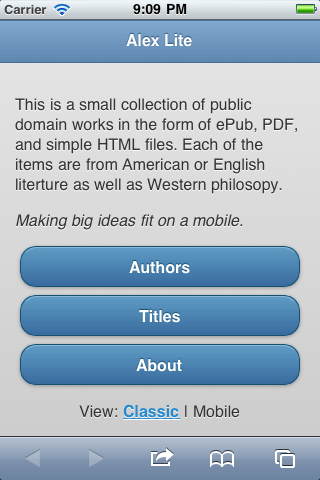

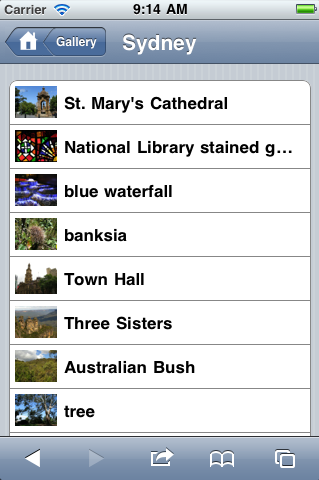

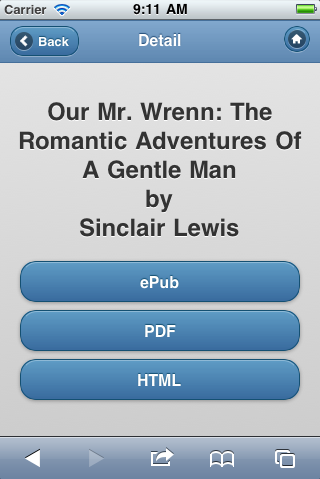

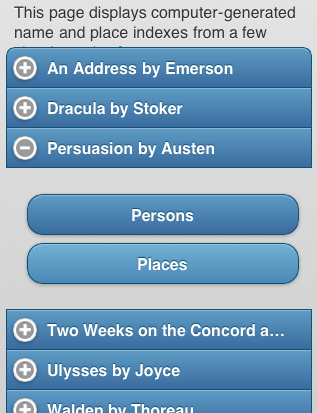

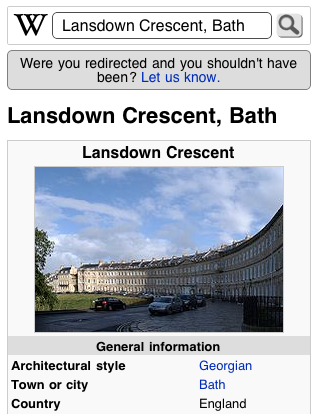

Screen shots of services against texts on a mobile device

Given the amount of full text content that is expected to be in or linked from the DPLA’s collection, there is so much more potential functionality for the reader. The idea of a library being a storehouse of books and journals is rapidly become antiquated. Because content is so readily available on the ‘Net, there is a need for libraries to evolve beyond its stereotypical function. By combining a knowledge of what readers do with information with the possibilities for full text analysis, the DPLA will empower the reader to more easily ask and answer questions of texts. And in turn, make it easier for the reader to use & understand what they are reading.

Disclaimer

People may believe the techiques described herein run contrary to the traditional processes of “close” reading. From our point of view, nothing could be further from the truth. We sincerely believe the techniques described in this proposal suppliment and enhance the reading process.

We are living in an age where we feel like we are drowning in data and information. But according to Ann Blair this is not a new problem. In her book, Too Much to Know, Blair chronicles in great detail the ways scholars since the 3rd Century have dealt with information overload. While they seem obvious in today’s world, they were innovations in their time. They included but were not limited to: copying texts (St. Jerome in the 3rd Century), creating concordances (Hugh St. Cher in the 13th Century), and filing wooden “cards” in a “catalog” (Athanasius Kircher 17th Century).

jerome
St. Jerome
hugh st cher
Hugh St. Cher
kircher
Athanasius Kircher

Think of all the apparatus associated with a printed book. Books have covers, and sometimes there are dust jackets complete with a description of the book and maybe the author. On the book’s spine is the title and publisher. Inside the book there are cover pages, title pages, tables of contents, prefaces & introductions, tables of figures, the chapters themselves complete with chapter headings at the top of every page, footnotes & references & endnotes, epilogues, and an index or two. These extras — tables of contents, chapter headings, indexes, etc. — did not appear in books with the invention of the codex. Instead their existence was established and evolved over time.

In scholarly detail, Blair documents how these extras — as well as standard reference works like dictionaries, encyclopedias, and catalogs — came into being. She asserts the creation of these things became necessary as the number and lengths of books grew. These tools made the process of understanding the content of books easier. They reenforced ideas, and made the process of returning to previously read information faster. Accordingl to Blair, not everybody thought these tools — especially reference works — were a good idea. To paraphrase, “People only need a few good books, and people should read them over and over again. Things like encyclopedias only make the mind weaker since people area not exercising their memories.” Despite these claims, reference tools and the aparatus of printed books continue to exist and our venerable “sphere of knowledge” continues to grow.

Nobody can claim undertanding of a book if they read only the table of contents, flip through the pages, and glance at the index. Yes, they will have some understanding, but it will only be tertiary. We see the tools described in this proposal akin to tables of contents and back-of-the-book indexes. They are tools to find, get, use, and understand the data, information, and knowledge a book contains. They are a natural evolution considering the existence of books in digital forms. The services against texts described in this proposal enhance and supplement the reading process. They make it easier to compare & contrast the content of single books or an entire corpus. They make it faster and easier to extract pertinate information. Like a back-of-the-book index, they make it easier to ask questions of a text and get answers quickly. The tools described in this proposal are not intended to be end-all and be-all of textual analysis. Instead, they are intended to be pointers to interesting ideas, and it is left up to the reader to flesh out and confirm the ideas after closer reading.

Digital humanities investigations and specifically text mining computing techniques like the ones in this proposal can be viewed as modern-day processes for dealing with and taking advantage of information overload. Digital humanists use computers to evaluate all aspects of human expression. Writing. Music. Theator. Dance. Etc. Text mining is a particular slant on the digital humanities applying this evaluation process against sets of words. We are simply advocating these proceses become integrated with library collections and services.

Software

This section lists the software used to create our Beta-Sprint Propoal examples. All of the software is open source or freely accessible. None of the software is one-of-a-kind because each piece could be replaced by something else providing similar functionality.

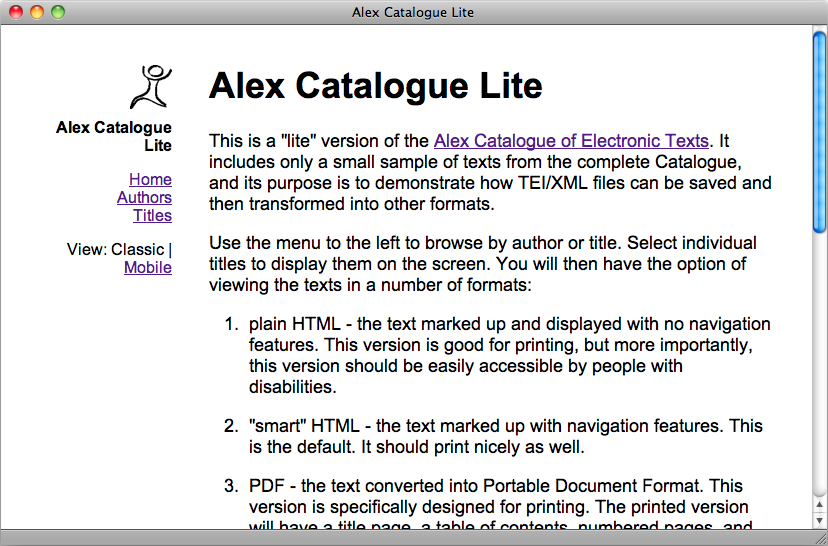

  • Alex Catalogue of Electronic Texts – This is a collection and full-text index of approximately 14,000 public domain documents from the areas of American and English literature as well as Western philosophy. This “digital library”, created and maintined by the author since 1994, is a personal “sandbox” and laboratory for the implementation of new ideas in librarianship.
  • Google Charts – Implemented through a Javascript API (application programmer interface), Google Charts enabled us to create the histograms in the “display location of word in a text service”. It also provided the guage-like graphics for the “measure size” and “measure difficulty” services.
  • Google Maps – Another Javascript API, Google Maps was a part of the “plot on a map” service.
  • Lingua::Concordance – A Perl module, Lingua::Concordance was used to implement the “display in context” service. This module was written by the author.
  • Lingua::EN::Ngram – Another Perl module written by the author, Lingua::EN::Ngram was used to count and tabulate the words and n-length phrases in a given text. It plays a crucial role “count word and phrase frequencies” service.
  • Lingua::Fathom – This Perl module formed the basis of the “measure size” and “measure difficulty” services since its primary purpose is to calculate Fog, Flesch, and Kincaid readability scores.
  • Lingua::Stem::Snowball – This Perl module plays a role in the “measure concept” service. Given words as input, it outputs the words’ roots (or “stems”). These roots were then searched against the index of Alex Catalogue to determine the number of documents (f) containing the root. This value was then used to calculate TFIDF.
  • Lingua::TreeTagger – This a Perl interface to set of cross-platform binary applications whose purpose is to classify parts-of-speech. Lingua::TreeTagger was used to compare & contrast the ways pronouns were used in four classic works of literature.
  • MyLibrary – This is a digital library framework written in Perl. At its core are modules to manage library resources, librarians, and patron descriptions. Inter-relationships between resources, librarians, and patrons can be controlled through the creation and maintenance of facet/term combinations. MyLibrary was co-written by the author and implemented the concept of facets before faceted browse became popular. MyLibrary, in combination with Solr, forms the functional basis of the Alex Catalogue.
  • Protovis – This is the Javascript library used to visualize the “display the proximity of a given word to other words” service.
  • SIMILE Widgets Timeline – This is a Javascript library used to display timelines. It was used in the “plot on a timeline” service.
  • Solr – Solr is probably the most popular open source indexer in use by the library community, if not else where. It is used to index the full-text of the Alex Catalogue. It was also used to determine the value of f in the “measure concept” service.
  • Stanford Named Entity Recognizer – This is the set of Java programs used to extract the names and places from a document. These names and places were then linked to Wikipedia or plotted on a map — the “elaborate upon and visualize parts-of-speech” service.

This short list of software can be used to create a myriad of enhanced library services and tools, but the specific pieces of software listed above are not so important in and of themselves. Instead, they represent types of software which already exist and are freely available for use by anybody. Services against texts facilitating use & understand can be implemented with a wide variety of software applications. The services against texts outlined in this proposal are not limited to the software listed in this section.

Implementation how-to’s

Putting into practice the services against text described in this proposal would not be a trivial task, but process is entirely feasible. This section outlines a number of implementation how-to’s.

Measurement services

The measurement services (size, readability, and concept) would idealy be done against texts as they were added to the collection. The actual calculation of the size and readability scores are not difficult. All that is needed is the full text of the documents and software to do the counting. (Measuring concepts necessitates additional work since TFIDF requires a knowledge of the collection as a whole; measuring concepts can only be done once the bulk of the collection has been built. Measuring concepts is also a computationally intensive process.)

Instead, the challenge includes denoting locations to store the metadata, deciding whether or not to index the metadata, and figuring out how to display the metadata to the reader. The measurements themselves will be integers or decimal numbers. If MARC were the container for the bibliogrpahic data, then any one of a number of local notes could be used for storage. If a relational database were used, then additional fields could be used. If the DPLA wanted to enable the reader to limit or sort search results by any of the measurments, then the values will need to be indexed. We would be willing to guess the underlying indexer for the DPLA will be Solr, since it seems to be the current favorite. Indexing the measurements in Solr will be as easy as creating the necessary fields to a Solr configuration file, and adding the measurements to the fields as the balance of the bibliographic data is indexed. We would not suggest creating any visualizations of the measurements ahead of time, but rather on-the-fly and only as they were needed; the visualizations could probably be implemented using Javascript and embedded into the DPLA’s “catalog”.

Timeline services

Like the measurements, plotting the publication dates or dates of conception on a timeline can be implemented using Javascript and embedded into the DPLA’s “catalog”. For serial literature (blogs, open access journal articles, Twitter feeds, etc.) the addition of meaningful dates will have already been done. For more more traditional library catalog materials (books), the addition of dates of conception will be labor intensive. Therefore such a thing might not be feasible. On the other hand, this might be a great opportunity to practice a bit of crowdsourcing. Consider making a game out of the process, and try to get people outside the DPLA to denote when Plato, Thoreau, Longfellow, and Whitman wrote their great works.

Frequency, concordance, proximity, and locations in a text services

Implementing the frequency, concordance, proximity, and locations in a text services require no preprocessing. Instead these services can all be implemented on-the-fly by a program linked from the DPLA’s “catalog”. These services will require a single argument (a unique identifier) and some optional input parameters. Given a unique identifier, the program can look up basic bibliographic information from the catalog including the URL where the full-text resides, retrieve the full-text, and do the necessary processing. This URL could point to the local file system, or, if the network was deemed fast and reliable, the URL could point to the full-text in remote repositories such as the Internet Archive or the HathiTrust. These specific services against texts have been implemented in the Catholic Research Resources Alliance “Catholic Portal” application using “Analyze using text mining techniques” as the linked text. This is illustrated below:

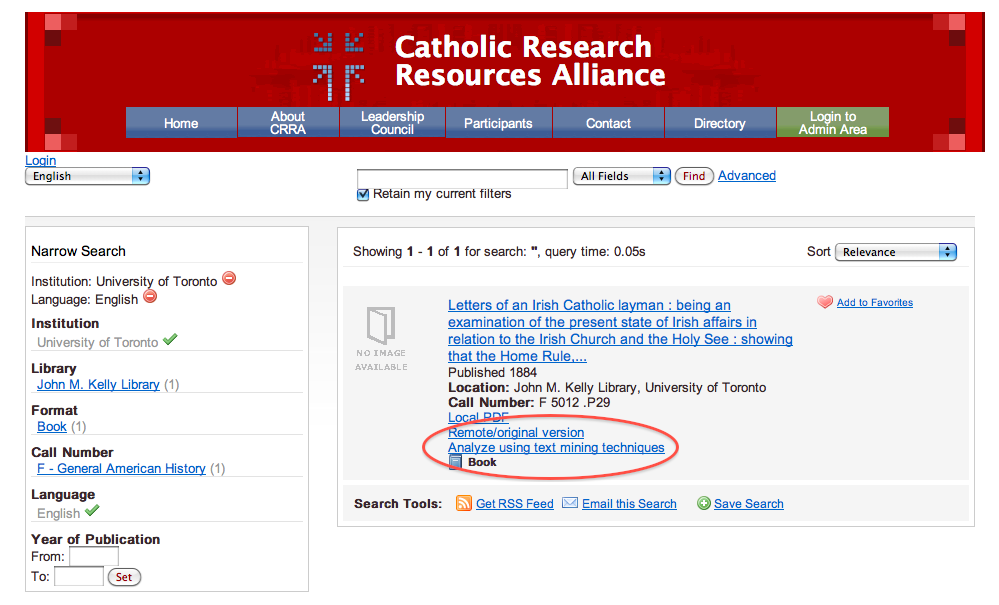

crra

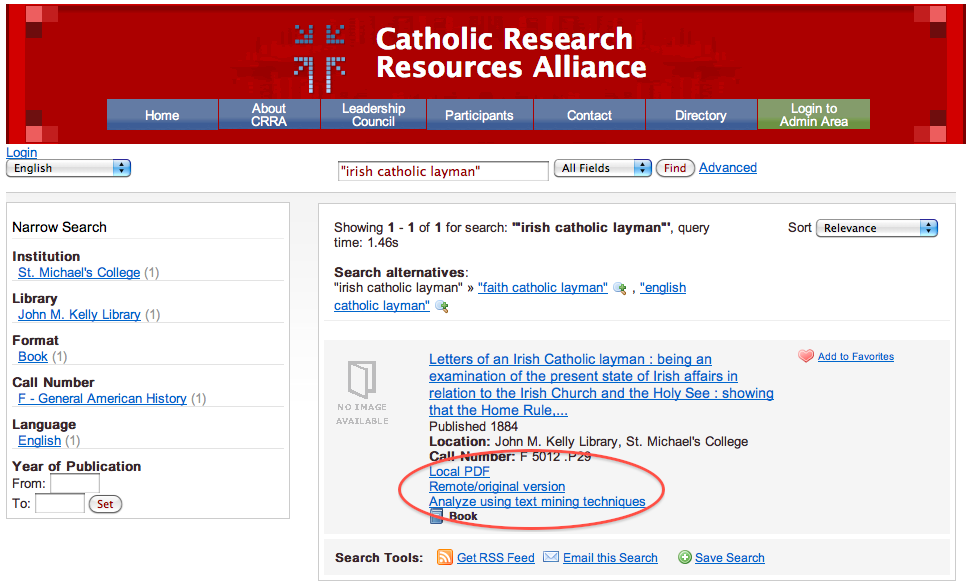

Screen shot of the “Catholic Portal”

By the middle of September 2011 we expect the Hesburgh Libraries at the University of Notre Dame will have included very similar links in their catalog and “discovery system”. These links will provide access to frequency, concordance, and locations in a text services for sets of digitized Catholic pamphlets.

Parts-of-speech services

Based on our experience, the parts-of-speech services will require pre-processing. This is because the process of classifying words into categories of parts-of-speech is a time- and computing-intensive process. It does not seem feasible to extract the parts-of-speech from a document in real time.

To overcome this limitation, we classified our small sample of texts and saved the result in easily parsable text files. Our various scripts were then applied against these surrogates as opposed to the original documents. It should be noted that these surrogates, while not only computationally expensive, were also expensive in terms of disk space consuming more than double the space of the original.

We suggest one or two alternative strategies for the DPLA. First, determine what particular items from the DPLA’s collection may be the more popular. Once determined, have those items pre-processed outputting the surrogate files. These pre-processed items can then be used for demonstration purposes and generate interest in the parts-of-speech services. Second, when readers want to use these services against items that have not been pre-processed, then have the readers select their items, supply an email address, process the content, and notifiy the readers when the surrogates have been created. This second approach is akin to the just-in-time approach to collection development as opposed to the just-in-case philosophy.

Priorities

Obviously, we think all of the services against texts outlined above are useful, but practically speaking, it is not feasible to implement all of them once. Instead we advocate the following phased approach:

  1. Word/phrase frequency, concordance, proximity, and locations in a text services – We suggest these services be implemented first, mostly because they can be written outside any “discovery system” hosted by the DPLA. Second, these services are the root of many of the other services, so it will be easier to build the others once these have been made available.
  2. Measurments of size and readability – Calculating the values of size and readability on-the-fly is possible but is limiting in functionality. Pre-processing these values is relatively easy, and incorporating the result into the “discovery system” has many benefits. This is why we see these two services as the second highest priority.
  3. Plot dates of publication on a timeline – Plotting dates will be easy enough if the content in question is of a serial nature and the dates represent “dates of conception”. But we are not sure content of a serial nature (blog postings, open access journal literature, Twitter feeds, etc.) will be included in the DPLA’s collection. Consequently, we suggest this service be implemented third.
  4. Parts-of-speech analysis – Implementing services based on parts-of-speech will almost certainly require pre-processing as increase local storage requirements. While these costs are withing the DPLA’s control, they are expenses that may inhibit implementation feasibility. That is why they are listed fourth in the priority order.
  5. After crowdsourcing the content, plot dates of conception on a timeline – We think this is one of the easier and more interesting services, especially if the dates in question are “dates of conception” for books, but alas, this data is not readily available. After figuring out how to acquire dates of conception for traditional catalog-like material — through something like crowdsourcing — implementing this service my be very enlightinging.
  6. Measure ideas – This is probably the most avant-garde service described in the proposal. Its implementation can only be done after the bulk of the DPLA’s collection has been created. Furthermore, calculating TFIDF for a set of related keyword is computationally expensive. This can be a truly useful and innovative service, especially if the reader were able to create a personal concept for comparison. But because of the time and expense, we advocate this service be implemented last.

Quick links

This section lists most of the services outlined in the proposal as well as links to blog postings and example implementations.

Word frequencies, concordances

These URLs point to services generating word frequencies, concordances, histograms illustrating word locations, and network diagrams illustrating word proximities for Walden and Ulysses.

Word/phrase locations

Using the text mining techniques built into the “Catholic Portal” the reader can see where the words/phrases “catholic”, “lake erie”, and “niagara falls” are used in the text.

Proximity displays

Using network diagrams, the reader can see what words Thoreau uses “in the same breath” when he mentions the word “woodchuck”. These proximity displays are also incorporated into just about every item in the Alex Catalogue

Plato, Aristotle, and Shakespeare

This blog posting first tabulates the most frequently used words by the authors, as well as their definitions of “man” and a “good man”.

Catholic Portal

The “Portal” is collection of rare, uncommon, and infrequently held materials brought together to facilitate Catholic studies. It includes some full text materials, and they are linked to text mining services.

Measuring size

In this blog posting a few works by Charles Dickens are compared & contrasted. The comparisons include size and word/phrase usage.

Plot on a timeline

This blog posting describes how a timeline was created by plotting the publication dates of RSS feeds.

Lookup in Wikipedia and plot on a map

After extracting the names and places from a text, this service grabs Linked Data from DBedia, displays a descriptive paragraph, and allows the reader to look the name or place up in Wikipedia and/or plot it on a world map. This service is specifically designed for mobile devices.

Parts-of-speech analysis

This blog posting elaborates on how various parts of speech were used in a number of selected classic works.

Measuring ideas

The “greatness” of the Great Books was evaluated in a number of blog postings, and the two listed here give a good overview of the methodology.

Summary

In our mind, the combination of digital humanities computing techniques — like all the services against texts outined above — and the practices of librarianship would be a marriage made in heaven. By supplementing the DPLA’s collections with full text materials and then enhancing its systems to facilitate text mining and natural language processing, the DPLA can not only make it easier for readers to find data and information, but it can also make that data and information easier to use & understand.

We know the ideas outlined in this proposal are not typical library functions. But we also apprehend the need to take into account the changing nature of the information landscape. Digital content lends itself to a myriad of new possibilities. We are not saying analog forms of books and journals are antiquated nor useless. No, far from it. Instead, we believe the library profession has figured out pretty well how to exploit and take advantage of that medium and its metadata. On the other hand, the posibilities for full text digital content are still mostly unexplored and represent a vast untapped potencial. Building on and expanding on the education mission of libraries, services against texts may be a niche the profession — and the DPLA — can help fill. The services & tools described in this proposal are really only examples. Any number of additional services against texts could be implemented. We are only limited by our ability to think of action words denoting the things people want to do with texts once they find & get them. By augmenting a library’s traditional functions surrounding collection and sevices with the sorts of things described above, the role of libraries can expand and evolve to include use & understand.

About the author

Eric Lease Morgan considers himself to be a librarian first and a computer user second. His professional goal is to discover new ways to use computers to provide better library service. He has a BA in Philosophy from Bethany College in West Virginia (1982), and an MIS from Drexel University in Philadelphia (1987).

While he has been a practicing librarian for more than twenty years he has been writing software for more than thirty. He wrote his first library catalog in 1989, and it won him an award from Computers in Libraries Magazine. In a reaction to the “serials pricing crisis” he implemented the Mr. Serials Process to collect, organize, archive, index, and disseminate electronic journals. For these efforts he was awarded the Bowker/Ulrich’s Serials Librarianship Award in 2002. An advocate of open source software and open access publishing since before the phrases were coined, just about all of his software and publications are freely available online. One of his first pieces of open source software was a database-driven application called MyLibrary, a term which has become a part of the library vernacular.

As a member of the LITA/ALA Top Technology Trends panel for more than ten years, as well as the owner/moderator of a number of library-related mailing lists (Code4Lib, NGC4Lib, and Usability4Lib), Eric has his fingers on the pulse of the library profession. He coined the phrase “‘next-generation’ library catalog”. More recently, Eric has been applying text mining and other digital humanities computing techniques to his Alex Catalogue of Electronic Texts which he has been maintaining since 1994. Eric relishes all aspects of librarianship. He even makes and binds his own books. In his spare time, Eric plays blues guitar and Baroque recorder. He also enjoys folding origami, photography, growing roses, and fishing.

Raising awareness of open access publications

August 2nd, 2011

I was asked the other day about ways to make people aware of open access journal publications, and this posting echoes much of my response.

Thanks again for taking the time this morning to discuss some of the ways open-access journals are using social media and other technology to distribute content and engage readers. I am on the board of [name deleted] recently transitioned to an open access format, and we are looking to maximize the capabilities of this new, free, and on-line format. To that end, any additional insights you might be able to share about effective social media applications for open-access sources, or other exemplary electronic journals you may be able to recommend, would be most helpful.

As you know, I have not been ignoring you as much as I have been out of town. Thank you for your patience.

I am only able to share my personal experiences here, and they are not intended to be standards of best practices. Yet, here are some ideas:

  • Exploit RSS – RSS is an XML technology used to syndicate content. It is the foundation of blogs. Do what you can to make sure your journal content is syndicated via RSS. This way people can “subscribe” to your journal and they will get alerts when new content becomes available.
  • Create a mailing list – On your journal’s site, allow people to submit their email addresses. Keep these email addresses in a list (database) and when new issues of your journal are created, send messages to the people in the list. Do not use the list for any other purpose.
  • Advertise – Identify mailing lists where discussions take place surrounding the topic of your journal. When your journal creates new issues, send a table of contents sort of message to the mailing lists.
  • Blog about your journal – If you or any of your colleagues who edit the journal blog, then write up things you find interesting in your journal in your blog. As long as your write up are sincere, people will not see this sort of things as self-promotion.
  • Use Facebook & Twitter – Do you and your editorial colleagues use Facebook or Twitter? Maybe your journal can have a Facebook page and/or a Twitter account. In either case, post messages about your journal on social networks.
  • Exploit SEO – SEO is code for “search engine optimization” which itself is code for “make it easy for Google to crawl your site”. If Google can easily crawl your site, then your content will more likely appear in Google search results, and therefore you will get more exposure.
  • Be regular – Publishing serial publications (blogs, journal articles, etc.) is difficult, but I believe your readers will build up trust for you if you make content available on a consistent basis. Otherwise, I think your publication will loose credibility.
  • Make your content searchable – When people come to your website, make sure people can easily search & browse the backfires. People will say, “I remember seeing an article on that topic at… I wonder if I can find it again?” Put another way, make sure your website is “usable”.
  • Allow for comments – While the articles you publish go through some sort of review, make it possible for the readership to comment as well. We no longer live in isolation, nor are we governed by the centralized elite. It is increasingly about the wisdom of the crowd.

The right software makes many of the tasks I outlined easier. I suggest you take a look at Open Journal Systems.

Good luck, and I commend you for going the open access route.

Poor man’s restoration

July 25th, 2011

This posting describes a poor man’s restoration process.

Yesterday, I spent about an hour and a half writing down a work/professional to-do list intended to span the next few months. I prioritized things, elaborated on things, and felt I like had the good beginnings of an implementable plan.

I put the fruits of my labors into my pocket and then went rowing around in my boat. After my swim and on the way back to the dock I realized my to-do list was still in my pocket. Sigh. After pulling it out I and seeing the state it was in, I decided to try to salvage it. Opening it up was difficult. Naturally, the paper tore, but I laid it down as flat as I could. I went home to get a few pieces of paper to support and sandwich my soaked to-do list. For the next few hours, as the paper dried in the hot weather we are experiencing, I continually flipped and turned the to-do list so it would not stick to its supports.


Page #1

Page #2

This morning, after the list was was a dry as it was going to be, I photographed both sides of it, did my best color-correct the image, converted the whole thing into a PDF file, and printed the result. While the it looks like heck, the time I spent salvaging my intellectual efforts were much shorter than the time I would have spent recreating the list. Like a blues, such recreations are never exactly the same as the originals. But it would have been a whole lot better if I hadn’t gone swimming with my to-do list in the first place.

I might not have done this restoration process in the “best” way, but that does not detract from the effort itself. I really do enjoy all aspects of library work.

My DPLA Beta-Sprint Proposal: The movie

July 22nd, 2011

Please see my updated and more complete Digital Public Library of America Beta-Sprint Proposal. The following posting is/was a precursor.

The organizers of the Digital Public Library of America asked the Beta-Sprint Proposers to create a video outlining the progress of their work. Below is the script of my video as well as the video itself. Be gentle with me. Video editing is difficult.

Introduction

My name is Eric Morgan. I am a Digital Projects Librarian here at the University of Notre Dame, and I am going to outline, ever so briefly, my Digital Public Library of America Beta-Sprint Proposal. In a nutshell, the Proposal describes, illustrates, and demonstrates how the core functionality of a library can move away from “find & get” and towards “use & understand”.

Find & get

With the advent of ubiquitous and globally networked computers, the characteristics of data and information have fundamentally changed. More specifically, things like books and journals — the traditional meat and potatoes of libraries — no longer need to be manifested in analog forms, and their digital manifestations lend themselves to new functionality. For example, digital versions of books and journals can be duplicated exactly, and they are much less limited to distinct locations in space and time. This, in turn, has made things like the search engines of Google, Yahoo, and Microsoft a reality. Compared to twenty years ago, this has made the problem of find & get much less acute. While the problem of find & get will never completely be resolved, many people feel the problem is addressed simply enough. Enter a few words into a search box, click Go, and select items of interest.

Use & undertand

The problem of find & get is always a means to an end, and not the end itself. People want to do things with the content they find. I call these things “services against texts” and they are denoted by action verbs such as analyze, annotate, cite, compare & contrast, confirm, delete, discuss, evaluate, find opposite, find similar, graph & visualize, learn from, plot on a map, purchase, rate, read, review, save, share, summarize, tag, trace idea, or transform. Thus, the problem of find & get is evolving into the problem of use & understand. I ask myself, “What services can be provisioned to make the sense of all the content one finds on the Internet or in a library?” In my opinion, the answer lies in the combination of traditional library principles and the application of computer science. Because libraries are expected to know the particular information needs of their constituents, libraries are uniquely positioned to address the problem of use & understand. Not Google. Not Yahoo. Not Microsoft.

Examples

How do we go about doing this? We begin by exploiting the characteristics of the increasingly available of full text content. Instead of denoting the length of a book by the number of pages it contains, we measure it by the number of words. Thus, we will be able to unambiguously compare & contrast the lengths of documents. By analyzing the lengths of paragraphs, the lengths of sentences, and the lengths of words in a document, we will be able to calculate readability scores, and we will be better able to compare & contrast the intended reading levels of a book or article. By tabulating the words or phrases in multiple documents and then comparing those tabulations with each other libraries will make it easier for readers to learn about the similarities and differences between items in a corpus. Such a service will enable people to answer questions like, “How does the use of the phrase ‘good man’ differ between Plato, Aristotle, and Shakespeare?” If there were tools aware of the named people and places in a document, then a reader’s experience could be enriched with dynamic annotations and plots on a world map. Our ability to come up with ideas for additional services against texts is only limited by our imagination and our ability to understand the information needs of our clientele. My Beta Sprint Proposal demonstrates how many of these ideas can be implemented today and with the currently available technology.

Thank you

Thank you for the opportunity to share some of my ideas about the Digital Public Library of America, my Beta Sprint Proposal, and the role of libraries in the near future.

DPLA Beta Sprint Submission

June 20th, 2011

I decided to give it a whirl and particpate in the DPLA Beta Sprint, and below is my submission:

DPLA Beta Sprint Submission

My DPLA Beta Sprint submission will describe and demonstrate how the digitized versions of library collections can be made more useful through the application of text mining and various other digital humanities computing techniques.

Full text content abounds, and full text indexing techniques have matured. While the problem of discovery will never be completely solved, it is much less acute than it was even a decade ago. Whether the library profession or academia believes it or not, most people do not feel as if they have a problem finding data, information, and knowledge. To them it is as easy as entering a few words or phrases into a search box and clicking Go.

It is now time to move beyond the problem of find and spend increased efforts trying to solve the problem of use. What does one do with all the information they find and acquire? How can it be put into the context of the reader? What actions can the reader apply against the content they find? How can it be compared & contrasted? What makes one piece of information — such as a book, an article, a chapter, or even a paragraph — more significant than another? How might the information at hand be used to solve problems or create new insights?

There is no single answer to these questions, but this submission will describe and demonstrate one set of possibilities. It will assume the existence of full text content of just about any type — such as books the Internet Archive, open access journals, or blog postings. It will outline how these texts can be analyzed to find patterns, extract themes, and identify anomalies. It will describe how entire corpora or search results can be post-processed to not only refine the discovery process but also make sense of the results and enable the reader to quickly grasp the essence of textual documents. Since actions speak louder than words, this submission will also present a number of loosely joined applications demonstrating how this analysis can be implemented through Web browsers and/or portable computing devices such as tablet computers.

By exploiting the current environment — full text content coupled with ubiquitous computing horsepower — the DPLA can demonstrate to the wider community how libraries can remain relevant in the current century. This submission will describe and demonstrate a facet of that vision.

Next-generation library catalogs, or ‘Are we there yet?’

June 1st, 2011

Next-generation library catalogs are really indexes, not catalogs, and increasingly the popular name for such things is “discovery system”. Examples include VuFind, Primo combined with Primo Central, Blacklight, Summon, and to a lesser extent Koha, Evergreen, OLE, and XC. While this may be a well-accepted summary of the situation, I really do not think it goes far enough. Indexers address the problem of find, but in my opinion, find is not the problem to be solved. Everybody can find. Most people believe Google has all but solved that problem. Instead, the problem to solve is use. Just as much as people want to find information, they want to use it, to put it into context, and to understand it. With the advent of so much full text content, the problem of find is much easier to solve than it used to be. What is needed is a “next-generation” library catalog including tools and interfaces designed to make the use and understanding of information easier. Both the “Catholic Portal” and the discovery systems of the Hesburgh Libraries at the University of Notre Dame are beginning to implement some of these ideas. When it comes to “next-generation” library catalogs we might ask the question, “Are we there yet?”. I think the answer is, “No, not yet.”

This text was originally written for a presentation to the Rare Books and Manuscripts Section of the American Library Association during a preconference meeting, June 23, 2011. It is available in a number of formats including this blog posting, a one-page PDF document intended as a handout, and an ePub file.

Numbers of choices

There are currently a number of discovery systems from which a library can choose, and it is very important to note that they have more things in common than differences. VuFind, Primo combined with Primo Central, Summon, and Blacklight are all essentially indexer/search engine combinations. Even more, they all use same “free” and open source software — Lucene — at their core. All of them take some sort of bibliographic data (MARC, EAD, metadata describing journal articles, etc.), stuff it into a data structure (made up authors, titles, key words, and control numbers), index it in the way the information retrieval community has been advocating for at least the past twenty years, and finally, provide a way to query the index with either one-box-one-button or fielded interfaces. Everything else — facets, cover art, reviews, favorites, etc. — is window dressing. When and if any sort of OCLC/EBSCOHost combination manifests itself, I’m sure the underlying technology will be very similar.

Koha, Evergreen, and OLE (Open Library Environment) are more traditional integrated library systems. They automate traditional library processes. Acquisitions. Cataloging. Serials Control. Circulation. Etc. They are database applications, not indexers, designed to manage an inventory. Search — the “OPAC” — is one of these processes. The primary difference between these applications and the integrated library systems of the recent past is their distribution mechanism. Koha and Evergreen are open source software, and therefore as “free as a free kitten”. OLE is still in development, but will be distributed as open source. Everything else is/was licensed for a fee.

When talking about “next-generation” library catalogs and “discovery systems”, many people allude to the Extensible Catalog (XC) which is not catalog nor an index. More accurately, it is system enabling and empowering the library community to manage and transform its bibliographic data on a massive scale. It offer ways for a library to harvest content from OAI-PMH data repositories (such as library catalogs), do extensive find/replace or enhancement operations against the harvested data, expose the result via OAI-PMH again, and finally, support the NCIP protocol so the circulation status of items found in an index can be determined. XC is middleware designed to provide functionality between an integrated library system and discovery system.

Find is not the problem

With the availability of wide-spread full text indexing, the need to organize content according to a classification system — to catalog items — has diminished. This need is not negated, but it is not as necessary as it used to be. In the past, without the availability of wide-spread full text indexing, classification systems provided two functions: 1) to organize the collection into a coherent whole with sub-parts, and 2) to surrogate physical items enumerated in a list. The aggregate of metadata elements — whether they be titles, authors, contributors, key words, subject terms, etc. — acted as “dummies” for the physical item containing the information. They are/were pointers to the book, the journal article, the piece of sheet music, etc. With the advent of wide-spread full text indexing, these two functions are not needed as much as they were in the past. Through the use of statistical analysis and direct access to the thing itself, indexers/search engines make the organization and discovery of information easier and less expenses. Note, I did not say “better”, just simpler and with greater efficiency.

Because wide-spread full text indexing abounds, the problem of find is not as acute as it used to be. In my opinion, it is time to move away from the problem of find and towards the problem of use. What does a person do with the information once they find and acquire it? Does it make sense? Is it valid? Does it have a relationship other things, and if so, then what is that relationship and how does it compare? If these relationships are explored, then what new knowledge might one uncover, or what existing problem might be solved? These are the questions of use. Find is a means to an end, not the end itself. Find is a library problem. Use the problem everybody else wants to solve.

True, classification systems provide a means to discover relationships between information objects, but the predominate classification systems and processes employed today are pre-coordinated and maintained by institutions. As such they posit realities that may or may not match the cognitive perception of today’s readers. Moreover, they are manually applied to information objects. This makes the process literally slow and laborious. Compared to post-coordinated and automated techniques, the manual process of applying classification to information objects is deemed expensive and of diminishing practical use. Put another way, the application of classification systems against information objects today is like icing on a cake, leather trim in a car, or a cherry on a ice cream sundae. They make their associated things richer, but they are not essencial their core purpose. They are extra.

Text mining

Through the use of a process called text mining, it is possible to provide new services against individual items in a collection as well as to collections as a whole. Such services can make information more useful.

Broadly defined, text mining is an automated process for analyzing written works. Rooted in linguistics, it makes the assumption that language — specifically written language — adheres to sets of loosely defined norms, and these norms are manifested in combinations of words, phrases, sentences, lines of a poem, paragraphs, stanzas, chapters, works, corpora, etc. Additionally, linguistics (and therefore text mining) also assumes these manifestations embody human expressions, meanings, and truth. By systematically examining the manifestations of written language as if they were natural objects, the expressions, meanings, and truths of a work may be postulated. Such is the art and science of text mining.

The process of text mining begins with counting, specifically, counting the number of words (n) in a document. This results in a fact — a given document is n words long. By comparing n across a given corpus of documents, new facts can be derived, such as one document is longer than another, shorter than another, or close to an average length. Once words have been counted they can be tallied. The result is a list of words and their associated frequencies. Some words occur often. Others occur infrequently. The examination of such a list tells a reader something about the given document. The comparison of frequency lists between documents tells the reader even more. By comparing the lengths of documents, the frequency of words, and their existence in an entire corpus a reader can learn of the statistical significance of given words. Thus, the reader can begin to determine the “aboutness” of a given document. This rudimentary counting process forms the heart of most relevancy ranking algorithms of indexing applications and is called “term frequency inverse document frequency” or TFIDF.

Not only can words be tallied but they can be grouped into different parts-of-speech (POS): nouns, pronouns, verbs, adjectives, adverbs, prepositions, function (“stop”) words, etc. While it may be interesting to examine the proportional use of each POS, it may be more interesting to examine the individual words in each POS. Are the personal pronouns singular or plural? Are they feminine or masculine? Are the names of places centered around a particular geographic location? Do these places exist in the current time, a time in the past, or a time in future? Compared to other documents, is there a relatively higher or lower use of color words, action verbs, names of famous people, or sets of words surrounding a particular theme? Knowing the answers to these questions can be quite informative. Just as these processes can be applied to words they can be applied to phrases, sentences, paragraphs, etc. The results can be charted, graphed, and visualized. They can be used to quickly characterize single documents or collections of documents.

The results of text mining processes are not to be taken as representations of truth, any more than the application of Library of Congress Subject Headings completely denote the aboutness of text. Text mining builds on the inherent patterns of language, but language is fluid and ambiguous. Therefore the results of text mining lend themselves to interpretation. The results of text mining are intended to be indicators, guides, and points of reference, and all of these things are expected to be interpreted and then used to explain, describe, and predict. Nor is text mining intended to be a replacement for the more traditional process of close reading. The results of text mining are akin to a book’s table of contents and back-of-the-book index. They outline, enumerate, and summarize. Text mining does the same. It is a form of analysis and a way to deal with information overload.

Assuming the availability of increasing numbers of full text information objects, a library’s “discovery system” could easily incorporate text mining for the purposes of enhancing the traditional cataloging process as well as increasing the usefulness of found material. In my opinion, this is the essence of a true “next-generation” library catalog.

Two examples

An organization called the Catholic Research Resources Alliance (CRRA) brings together rare, uncommon, and infrequently held materials into a thing colloquially called the “Catholic Portal”. The content for the Portal comes from a variety of metadata formats (MARC, EAD, and Dublin Core) harvested from participating member institutions. Besides supporting the Web 2.0 features we have all come to expect, it also provides item level indexing of finding aids, direct access to digitized materials, and concordancing services. The inclusion of concordance features makes the Portal more than the usual discovery system.

For example, the St. Michael’s College at the University of Toronto is a member of the CRRA. They have been working with the Internet Archive for a number years, and consequently measurable portions of their collection have been digitized. After being given hundreds of Internet Archive unique identifiers, a program was written which mirrored digital content and bibliographic descriptions (MARC records) locally. The MARC records were ingested into the Portal (an implementation of VuFind), and search results were enhanced to include links to both the locally mirrored content as well as the original digital surrogate. In this way, the Portal is pretty much just like any other discovery system. But the bibliographic displays go further because they contain links to text mining interfaces.

the catholic portal

The “Catholic Portal”

Through these interfaces, the reader can learn many things. For example, in a book called Letters Of An Irish Catholic Layman the word “catholic” is one of the most frequently used. Using the concordance, the reader can see that “Protestants and Roman Catholics are as wide as the poles asunder”, and “good Catholics are not alarmed, as they should be, at the perverseness with which wicked men labor to inspire the minds of all, but especially of youth, with notions contrary to Catholic doctrine”. This is no big surprise, but instead a confirmation. (No puns intended.) On the other hand, some of the statistically most significant two-word phrases are geographic identities (“upper canada”, “new york”, “lake erie”, and “niagara falls”) . This is interesting because such things are not denoted in the bibliographic metadata. Moreover, a histogram plotting where in the document “niagra fals” occurs can be juxtaposed with a similar histogram for the word “catholic”. Why does the author talk about Catholics when they do not talk about upstate New York? Text mining makes it easier to bring these observations to light in a quick and easy-to-use manner.

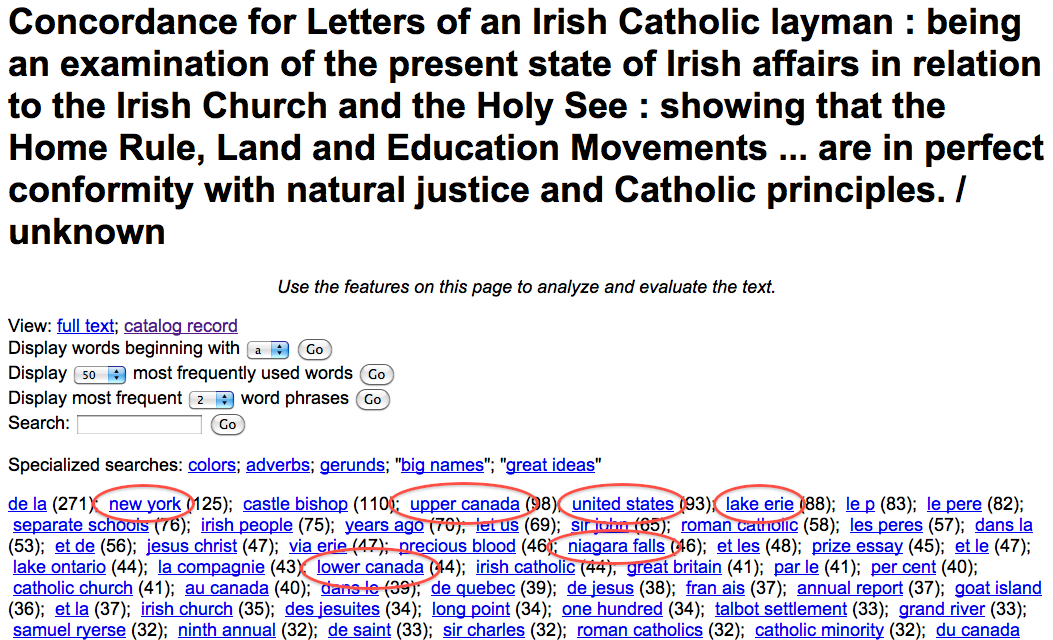

concordance

Concordance highlighting geographic two-word phrases

where is catholic

Where the word “catholic” is located in the text

niagra falls

Where “niagra falls” is located in the text

Some work being done in the The Hesburgh Libraries at the University of Notre Dame is in the same vein. Specifically, the Libraries is scanning Catholic pamphlets, curating the resulting TIFF images, binding them together to make PDF documents, embedding the results of OCR (optical character recognition) into the PDFs, saving the PDFs on a Web server, linking to the PDFs from the catalog and discovery system, and finally, linking to text mining services from the catalog and discovery system. Consequently, once found, the reader will be able to download a digitized version of a pamphlet, print it, read it in the usual way, and analyze it for patterns and meanings in ways that may have been overlooked through the use of traditional analytic methods.

Are we there yet?

Are we there yet? Has the library profession solved the problem of “next-generation” library catalogs and discovery systems? In my opinion, the answer is, “No.” To date the profession continues to automate its existing processes without truly taking advantage of computer technology. The integrated library systems are more open than they used to be. Consequently control over the way they operate is being transfered from vendors to the library community. The OPACs of yesterday are being replaced with the discovery systems of today. They are easier to use and better meet readers’ desires. They are not perfect. They are not catalogs. But they do make the process of find more efficient.

On the other hand, our existing systems do not take advantage of the current environment. They do not exploit the wide array and inherent functionality of available full text literature. Think of the millions of books freely available from the Internet Archive, Google Books, the HathiTrust, and Project Gutenberg. Think of the thousands of open access journal titles. Think about all the government documents, technical reports, theses & dissertations, conference proceedings, blogs, wikis, mailing list archives, and even “tweets” freely available on the Web. Even without the content available through licensing, this content has the makings of a significant library of any type. The next step is to provide enhanced services against this content — services that go beyond discovery and access. Once done, the library profession moves away from being a warehouse to an online place where data and information can be put into context, used to address existing problems, and/or create new knowledge.

The problem of find as reached the point of diminishing returns. The problem of use is now the problem requiring a greater amount of the profession’s attention.

Fun with RSS and the RSS aggregator called Planet

May 25th, 2011

This posting outlines how I refined a number of my RSS feeds and then aggregated them into a coherent whole using Planet.

Many different RSS feeds

I have, more or less, been creating RSS (Real Simple Syndication) feeds since 2002. My first foray was not really with RSS but rather with RDF. At that time the functions of RSS and RDF were blurred. In any event, I used RDF as a way of syndicating randomly selected items from my water collection. I never really pushed the RDF, and nothing really became of it. See “Collecting water and putting it on the Web” for details.

In December of 2004 I started marking up my articles, presentations, and travelogues in TEI and saving the result in a database. The webified version of these efforts was something called Musings on Information and Librarianship. I described the database supporting the process is a specific entry called “My personal TEI publishing system“. A program — make-rss.pl — was used to make the feed.

Since then blogs have become popular, and almost by definition, blogs support RSS in a really big way. My RSS was functional, but by comparison, everybody else’s was exceptional. For many reasons I started drifting away from my personal publishing system in 2008 and started moving towards WordPress. This manifested itself in this blog — Mini-Musings.

To make things more complicated, I started blogging on other sites for specific purposes. About a year ago I started blogging for the “Catholic Portal”, and more recently I’ve been blogging about research data management/curation — Days in the Life of a Librarian — at the University of Notre Dame.

In September of 2009 I started implementing a reading list application. Print an article. Read it. Draw and scribble on it. (Read, “Annotate it.”) Scan it. Convert it into a PDF document. Do OCR against it. Save the result to a Web-accessible file system. Do data entry against a database to describe it. Index the metadata and extracted OCR. And finally, provide a searchable/browsable interface to the whole lot. The result is a fledgling system I call “What’s Eric Reading?” Since I wanted to share my wealth (after all, I am a librarian) I created an RSS feed against this system too.

I was on a roll. I went back to my water collection and created a full-fledged RSS feed against it as well. See the simple Perl script — water2rss.pl — to see how easy it is.

Ack! I now have six different active RSS feeds, not counting the feeds I can get from Flickr and YouTube:

  1. Catholic Portal
  2. Life of a Librarian
  3. Mini-musings
  4. Musings
  5. What’s Eric Reading?
  6. Water collection

That’s too many, even for an ego surfer like myself. What to do? How can I consolidate these things? How can I present my writings in a single interface? How can I make it easy to syndicate all of this content in a standards-compliant way?

Planet

The answer to my questions is/was Planet — “an awesome ‘river of news’ feed reader. It downloads news feeds published by web sites and aggregates their content together into a single combined feed, latest news first.”

A couple of years ago the Code4Lib community created an RSS “planet” called Planet Code4Lib — “Blogs and feeds of interest to the Code4Lib community, aggregated.” I think it is maintained by Jonathan Rochkind, but I’m not sure. It is pretty nice since it brings together the RSS feeds from quite a number of library “hackers”. Similarly, there is another planet called Planet Cataloging which does the same thing for library cataloging feeds. This one is maintained by Jennifer W. Baxmeyer and Kevin S. Clarke. The combined planets work very well together, except when individual blogs are in both aggregations. When this happens I end up reading the same blog postings twice. Not a big deal. You get what you pay for.

After a tiny bit of investigation, I decided to use Planet to aggregate and serve my RSS feeds. Installation and configuration was trivial. Download and unpack the distribution. Select an HTML template. Edit a configuration file denoting the location of RSS feeds and where the output will be saved. Run the program. Tweak the template. Repeat until satisfied. Run the program on a regular basis, preferably via cron. Done. My result is called Planet Eric Lease Morgan.

Planet Eric Lease Morgan

The graphic design may not be extraordinarily beautiful, but the content is not necessarily intended to be read via an HTML page. Instead the content is intended to be read from inside one’s favorite RSS reader. Planet not only aggregates content but syndicates it too. Very, very nice.

What I learned

I learned a number of things from this process. First I learned that standards evolve. “Duh!”

Second, my understanding of open source software and its benefits was re-enforced. I would not have been able to do nearly as much if it weren’t for open source software.

Third, the process provided me with a means to reflect on the processes of librarianship. My particular processes for syndicating content needed to evolve in order to remain relevant. I had to go back and modify a number of my programs in order for everything to work correctly and validate. The library profession seemingly hates to do this. We have a mindset of “Mark it and park it.” We have a mindset of “I only want to touch book or record once.” In the current environment, this is not healthy. Change is more the norm than not. The profession needs to embrace change, but then again, all institutions, almost by definition, abhor change. What’s a person to do?

Forth, the process enabled me to come up with a new quip. The written word read transcends both space and time. Fun!?

Finally, here’s an idea for the progressive librarians in the crowd. Use the Planet software to aggregate RSS fitting your library’s collection development policy. Programatically loop through the resulting links to copy/mirror the remote content locally. Curate the resulting collection. Index it. Integrate the subcollection and index into your wider collection of books, jourals, etc. Repeat.

Book reviews for Web app development

May 15th, 2011

This is a set of tiny book reviews covering the topic of Web app development for the iPhone, iPad, and iPod Touch.

Unless you’ve been living under a rock for the past three or four years, then you know the increasing popularity of personal mobile computing devices. This has manifested itself through “smart phones” like the iPhone and “tablet computers” like the iPad and to some extent the iPod Touch. These devices, as well as other smart phones and tablet computers, get their network connections from the ether, their screens are smaller than the monitors of desktop computers, and they employ touch screens for input instead of keyboards and mice. All of these things significantly change the user’s experience and thus their expectations.

As a librarian I am interested in providing information services to my clientele. In this increasingly competitive environment where the provision of information services includes players like Google, Amazon, and Facebook, it behooves me to adapt to the wider environment of my clientele as opposed to the other way around. This means I need to learn how to provide information services through mobile computing devices. Google does it. I have to do it too.

Applications for mobile computing devices fall into two categories: 1) native applications, and 2) “Web apps”. The former are binary programs written in compiled languages like Objective-C (or quite possibly Java). These types of applications are operating system-specific, but they are also able to take full advantage of the underlying hardware. This means applications for things like iPhone or iPad can interoperate with the devices’ microphone, camera, speakers, geo-location functions, network connection, local storage, etc. Unfortunately, I don’t know any compiled languages to any great degree, and actually I have little desire to do so. After all, I’m a lazy Perl programmer, and I’ve been that way for almost twenty years.

The second class of applications are Web apps. In reality, these things are simply sets of HTML pages specifically designed for mobiles. These “applications” have the advantage of being operating system independent but are dead in the water without the existence of a robust network connection. These applications, in order to be interactive and meet user expectations, also need to take full advantage of CSS and Javascript, and when it comes to Javascript it becomes imperative to learn and understand how to do AJAX and AJAX-like data acquisition. If I want to provide information services through mobile devices, then the creation of Web apps seems much more feasible. I know how to create well-formed and valid HTML. I can employ the classic LAMP stack to do any hard-core computing. There are a growing number of CSS frameworks making it easy to implement the mobile interface. All I have to do is learn Javascript, and this is not nearly as difficult as it used to be with the emergence of Javascript debuggers and numerous Javascript libraries. For me, Web apps seem to be the way to go.

Over the past couple of years I went out and purchased the following books to help me learn how to create Web apps. Each of them are briefly described below, but first, here’s a word about WebKit. There are at least three HTML frameworks driving the majority of Web browsers these days. Gecko which is the heart of Firefox, WebKit which is the heart of Safari and Chrome, and whatever Microsoft uses as the heart of Internet Explorer. Since I do not own any devices that run the Android or the Windows operating systems, all of my development is limited to Gecko or WebKit based browsers. Luckily, WebKit seems to be increasing in popularity, and this makes it easier for me to rationalize my development in iPhone, iPad, and iPod Touch. The books reviewed below also lean in this direction.

  • Beginning iPhone And iPad Web Apps (2010, 488 pgs.) by Chris Apers and Daniel Paterson – This is one my more recent purchases and I think I like this book the best. First and foremost, it is the most agnostic of all the books, even though some of the examples use WebKit. True to its title, it describes the use of HTML5, CSS, and Javascript to implement mobile interfaces. This includes whole chapters to the use of vector graphics and fonts, audio and video content, special effects with (WebKit-specific) CSS, touch and gesture events with Javascript, location-aware programming, and client-side data storage. Moreover, this book is the best of the bunch when it comes to describing how mobile interfaces are different from browser-based interfaces. Mobile interfaces are not just smaller versions of their older siblings! If you are going to buy one book, then buy this one. I think it will serve you for the longest period of time.
  • Building iPhone Apps With HTML, CSS, and Javascript (2010, 166 pgs.) by Jonathan Stark – Being shorter than the previous book, this one is not as thorough but still covers all the bases. On the other hand, unlike the previous title, it does describe how to use a Javascript library for mobile (JQTouch), and how to use PhoneGap to convert a Web app into a native application with many of the native application benefits. This book is a quick read and a good introduction.
  • Dashcode For Dummies (2011, 436 pgs.) by Jesse Feiler – Dashcode is a development environment originally designed to facilitate the creation of Macintosh OS X dashboard widgets. As you may or may not know, these widgets are self-contained HTML/Javascript/CSS files intended to support simple utility functions. Tell the time. Display the weather. Convert currencies. Render XML files. Etc. Dashcode evolved and now enables the developer to create Web apps for the Macintosh family of i-devices. I bought this book because I own these devices, and I thought the book might help me exploit their particular characteristics. It does not. Dashcode includes no internal links to the underlying hardware. This book describes how to use Dashcode very well, but Dashcode applications are not really the kind I want to create. I suppose I could use Dashcode to create the skin of my application but the overhead may be excessive and the result may be too device dependent.
  • Developing Hybrid Applications For The iPhone (2009, 195 pgs.) by Lee S. Barney – By introducing the idea of a “hybrid” application, this book picks up where the Dashcode book left off. It does this by describing two Javascript packages (QuickConnectiPhone and PhoneGap) allowing the developer to interact with the underlying hardware. I’ve read this book a couple of times, I’ve looked over it a few more, and in the end I am still challanged. I’m excited about accessing things like hardware’s camera, GPS funcationality, and file system, but after reading this book I’m still confused on actually how to do it. The content of this book is an advanced topic to be tackled after the basics have been mastered.
  • Safari And WebKit Development For iPhone OS 3.0 (2010, 383 pgs.) by Richard Wagner – This book is practical, and the one I relied upon the most, but only before I bought Beginning iPhone And iPad Web Apps. It gives an overview of WebKit, Javascript, and CSS. It advocates Web app frameworks like iUI, iWebKit, and UIUIKit. It describes how to design interfaces for the small screen of iPhone and iPod Touch. It has a chapter the specific Javascript events supported by iPhone and iPod Touch. Like a couple of the other books, it describes how to use the HTML5 canvas to render graphics. I was excited to learn how to interact with the phone, maps, and SMS functions of the devices, but learned that this is done simply through specialized URLs. When the book talks about “offline applications” it is really talking about local database storage — another feature of HTML5. A couple things I should have explored but haven’t yet include bookmarklets and data URLs. The book describes how to take advantage of these concepts. This book is really a second edition of similar book with a different title but written by the same author in 2008. Its content is not as current as it could be, but the fundamentals are there.

Based on the things I’ve learned from these books, I’ve created several mobile interfaces. Each of them deserve their own blog posting so I will only outline them here:

  1. iMobile – A rough mobile interface to much of the Infomotions domain. Written a little more than a year ago, it combines backend Perl scripts with the iUI Javascript framework to render content. Now that I look back on it, the hacks there are pretty impressive, if I do say so myself. Of particular interest is the image gallery which gets its content from OAI-PMH data stored on the server, and my water collection which reads an XML file of my own design and plots where the water was collected on a Google map. iMobile was created from the knowledge I gained from Safari And WebKit Development For iPhone OS 3.0.
  2. DH@ND – The home page for a fledgling initiative called Digital Humanities at the University of Notre Dame. The purpose of the site is to support sets of tools enabling students and scholars to simultaneously do “close reading” and “distant reading”. It was built using the principles gleaned from the books above combined with a newer Javascript framework called JQueryMobile. There are only two things presently of note there. The first is Alex Lite for Mobile, a mobile interface to a tiny catalogue of classic novels. Browse the collection by author or title. Download and read selected books in ePub, PDF, or HTML formats. The second is Geo-location. After doing named-entity extraction against a limited number of classic novels, this interface displays a word cloud of place names. The user can then click on place names and have them plotted on a Google Map.

Remember, the sites listed above are designed for mobile, primarly driven by the WebKit engine. If you don’t use a mobile device to view the sites, then your milage will vary.

Image Gallery
Image Gallery
Water Collection
Water Collection
Alex Lite
Alex Lite
Geo-location
Geo-Location

Web app development is beyond a trend. It has all but become an expectation. Web app implementation requires an evolution in thinking about Web design as well as an additional skill set which includes advanced HTML, CSS, and Javascript. These are not your father’s websites. There are a number of books out there that can help you learn about these topics. Listed above are just a few of them.

Alex Lite (version 2.0)

April 11th, 2011

This posting describes Alex Lite (version 2.0) — a freely available, standards-compliant distribution of electronic texts and ebooks.

Alex LIte browser version
Alex Lite in a browser
Alex Lite webapp
Alex Lite on a mobile

A few years ago I created the first version of Alex Lite. Its primary purpose was to: 1) explore and demonstrate how to transform a particular flavor of XML (TEI) into a number of ebook formats, and 2) distribute the result on a CD-ROM. The process was successful. I learned a lot of about XSLT — the primary tool for doing this sort of work.

Since then two new developments have occurred. First, a “standard” ebook format has emerged — ePub. Based on XHTML, this standard specifies packaging up numerous XML files into a specialized ZIP archive. Software is intended to uncompress the file and display the result. Second, mobile devices have become more prevalent. Think “smart phones” and iPads. These two things have been combined to generate an emerging ebook market. Consequently, I decided to see how easy it would be to transform my TEI files into ePub files, make them available on the Web as well as a CD-ROM, and finally implement a “Webapp” for using the whole thing.

Alex Lite (version 2.0) is the result. There you will find a rudimentary Web browser-based “catalogue” of electronic texts. Browsable by authors and titles (no search), a person can read as many as eigthy classic writings in the forms of HTML, PDF, and ePub files. Using just about any mobile device, a person should be able to use a differnt interface to the collection with all of the functionality of the original. The only difference is the form factor, and thus the graphic design.

The entire Alex Lite distribution is designed to be given away and used as a stand-alone “library”. Download the .zip file. Uncompress it (about 116 MB). Optionally save the result on your Web server. Open the distribution’s index.html file with your browser or mobile. Done. Everything is included. Supporting files. HTML files. ePub files. PDF’s. Since all the files have been run through validators, a CD of Alex Lite should be readable for quite some time. Give away copies to your friends and relatives. Alex Lite makes a great gift.

Computers and their networks are extremely fragile. If they were to break, then access to much of world’s current information would suddently become inaccessible. Creating copies of content, like Alex Lite, are a sort of insurance against this catastrophe. Marking-up content in forms like TEI make it realatively easy to migrate ideas forward. TEI is just the information, not display nor container. Using XSLT it is possible to create different containers and different displays. Having copies of content locally enables a person to control their own destiny. Linking to content only creates maintenance nightmares.

Alex Lite is a fun little hack. Share it with your friends, and use it to evolve your definition of a library.

Where in the world is the mail going?

March 23rd, 2011

For a good time, I geo-located the subscribers from a number of mailing lists, and then plotted them on a Google map. In other words, I asked the question, “Where in the world is the mail going?” The answer was sort of surprising.

I moderate/manage three library-specific mailing lists: Usability4Lib, Code4Lib, and NGC4Lib. This means I constantly get email messages from the LISTSERV application alerting me to new subscriptions, unsubscriptions, bounced mail, etc. For the most part the whole thing is pretty hands-off, and all I have to do is manually unsubscribe people because their address changed. No big deal.

It is sort of fun to watch the subscription requests. They are usually from places within the United States but not always. I then got to wondering, “Exactly where are these people located?” Plotting the answer on a world map would make such things apparent. This process is called geo-location. For me it is easily done by combining a Perl module called Geo::IP with the Google Maps API. The process was not too difficult and implemented in a program called domains2map.pl:

  1. get a list of all the subscribers to a given mailing list
  2. remove all information but the domain of the email addresses
  3. get the latitude and longitude for a given domain — geo-locate the domain
  4. increment the number of times this domain occurs in the list
  5. got to Step #3 for each item in the list
  6. build a set of Javascript objects describing each domain
  7. insert the objects into an HTML template
  8. output the finished HTML

The results are illustrated below.

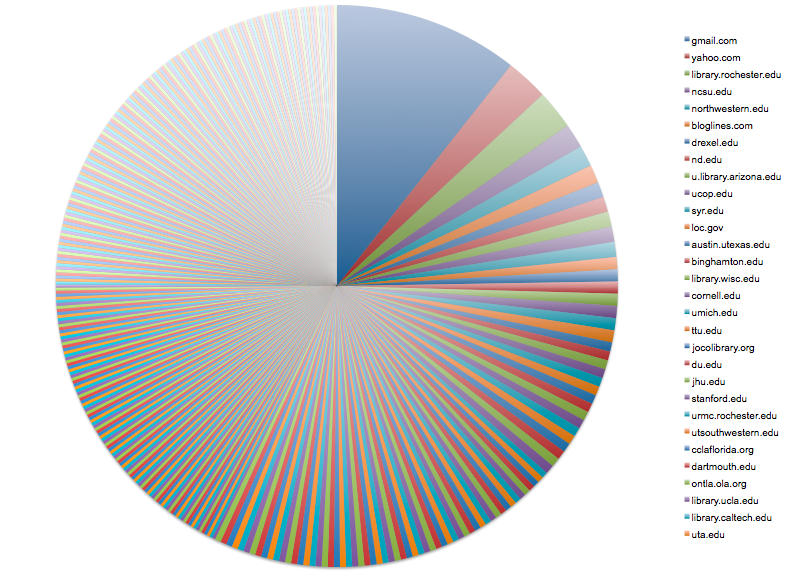

Usability4Lib – 600 subscribers
usability4lib

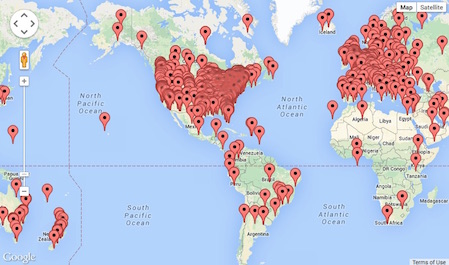

interactive map
usability4lib
pie chart
Code4Lib – 1,700 subscribers
code4lib
interactive map
code4lib
pie chart

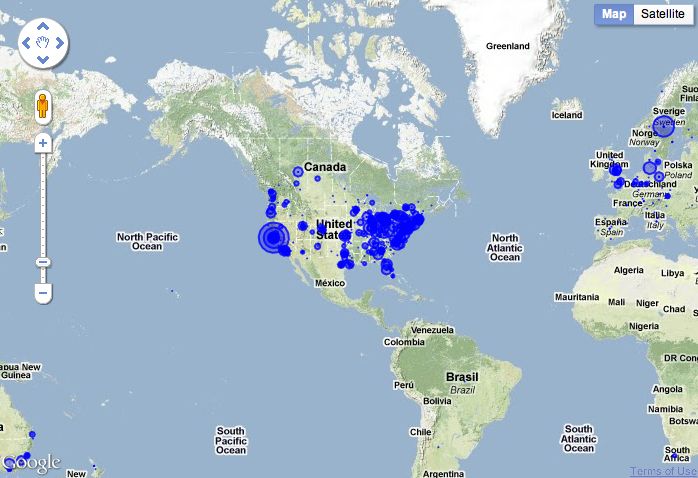

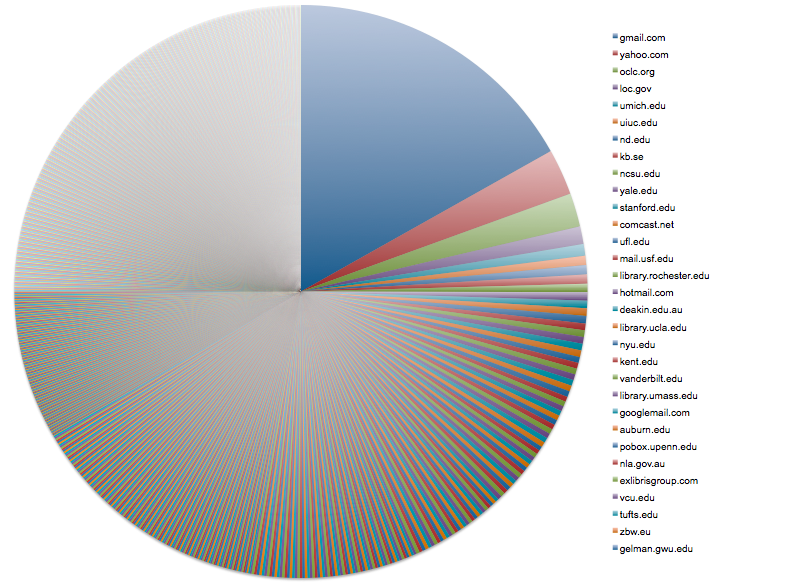

NGC4Lib – 2,100 subscribers
ngc4lib
interactive map
ngc4lib
pie chart

It is interesting to note how many of the subscribers seem to be located in Mountain View (California). This is because many people use Gmail for their mailing list subscriptions. The mailing lists I moderate/manage are heavily based in the United States, western Europe, and Australia — for the most part, English-speaking countries. There is a large contingent of Usability4Lib subscribers located in Rochester (New York). Gee, I wonder why. Even though the number of subscribers to Code4Lib and NGC4Lib is similar, the Code4Libbers use Gmail more. NGC4Lib seems to have the most international subscription base.

In the interest of providing “access to the data behind the chart”, you can download the data sets: code4lib.txt, ngc4lib.txt, and usability4lib.txt. Fun with Perl, Google Maps, and mailing list subscriptions.

For something similar, take a gander at my water collection where I geo-located waters of the world.

Constant chatter at Code4Lib

March 20th, 2011

As illustrated by the chart, it seems as if the chatter was constant during the most recent Code4Lib conference.

For a good time and in the vein of text mining, I made an effort to collect as many tweets with the hash tag #c4l11 as well as the backchannel log files. (“Thanks, lbjay!”). I then parsed the collection into fields (keys, author identifiers, date stamps, and chats/tweets), and stuffed them into a database. I then created a rudimentary tab-delimited text file consisting of a key (representing a conference event), a start time, and an end time. Looping through this file I queried my database returning the number of chats and tweets associated with each time interval. Lastly, I graphed the result.

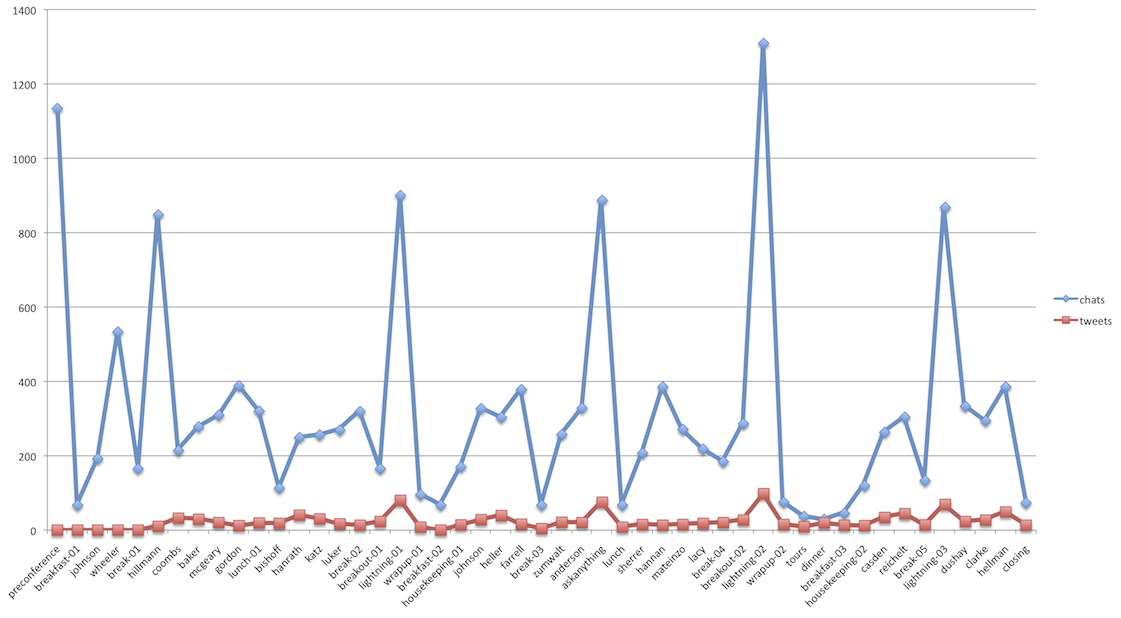

chatter at code4lib
Constant chatter at Code4Lib, 2011

As you can see there are a number of spikes, most notably associated with keynote presentations and Lightning Talks. Do not be fooled, because each of these events are longer than balance of the events in the conference. The chatter was rather constant throughout Code4Lib 2011.

When talking about the backchannel, many people say, “It is too distracting; there is too much stuff there.” I then ask myself, “How much is too much?” Using the graph as evidence, I can see there are about 300 chats per event. Each event is about 20-30 minutes long. That averages out to 10ish chats per minute or 1 item every 6 seconds. I now have a yardstick. When the chat volume is equal to or greater than 1 item every 6 seconds, then there is too much stuff for many people to follow.

The next step will be to write a program allowing people to select time ranges from the chat/tweet collection, extract the associated data, and apply analysis tools against them. This includes things like concordances, lists of frequently used words and phrases, word clouds, etc.

Finally, just like traditional books, articles, microforms, and audio-visual materials things things like backchannel log files, tweets, blogs, and mailing list archives are forms of human expression. Do what degree do these things fall into the purview of library collections? Why (or why not) should libraries actively collect and archive them? If it is within our purview, then what do libraries need to do differently in order build such collections and take advantage of their fulltext nature?

How “great” are the Great Books?

March 16th, 2011

In this posting I present two quantitative methods for denoting the “greatness” of a text. Through this analysis I learned that Aristotle wrote the greatest book. Shakespeare wrote seven of the top ten books when it comes to love. And Aristophanes’s Peace is the most significant when it comes to war. Once calculated, this description – something I call the “Great Ideas Coefficient” – can be used as a benchmark to compare & contrast one text with another.

Research questions

In 1952 Robert Maynard Hutchins et al. compiled a set of books called the Great Books of the Western World. [1] Comprised of fifty-four volumes and more than a couple hundred individual works, it included writings from Homer to Darwin. The purpose of the set was to cultivate a person’s liberal arts education in the Western tradition. [2]

To create the set a process of “syntopical reading” was first done. [3]. (Syntopical reading is akin to the emerging idea of “distant reading” [4], and at the same time complementary to the more traditional “close reading”.) The result was an enumeration of 102 “Great Ideas” commonly debated throughout history. Through the syntopical reading process, through the enumeration of timeless themes, and after thorough discussion with fellow scholars, the set of Great Books was enumerated. As stated in the set’s introductory materials:

…but the great books posses them [the great ideas] for a considerable range of ideas, covering a variety of subject matters or disciplines; and among the great books the greatest are those with the greatest range of imaginative or intellectual content. [5]

Our research question is then, “How ‘great’ are the Great Books?” To what degree do they discuss the Great Ideas which apparently define their greatness? If such degrees can be measured, then which of the Great Books are greatest?

Great Ideas Coefficient defined

To measure the greatness of any text – something I call a Great Ideas Coefficient – I apply two methods of calculation. Both exploit the use of term frequency inverse document frequency (TFIDF).

TFIDF is a well-known method for calculating statistical relevance in the field of information retrieval (IR). [6] Query terms are supplied to a system and compared to the contents of an inverted index. Specifically, documents are returned from an IR system in a relevancy ranked order based on: 1) the ratio of query term occurrences and the size of the document multiplied by 2) the ratio of the number of documents in the corpus and the number of documents containing the query terms. Mathematically stated, TFIDF equals:

(c/t) * log(d/f)

where:

  • c = number of times the query terms appear in a document
  • t = total number of words in a document
  • d = total number of documents in a corpus
  • f = total number of documents containing the query terms

For example, suppose a corpus contains 100 documents. This is d. Suppose two of the documents contain a given query term (such as “love”). This is f. Suppose also the first document is 50 words long (t) and contains the word love once (c). Thus, the first document has a TFIDF score of 0.034:

(1/50) * log(100/2) = 0.0339

Where as, if the second document is 75 words long (t) and contains the word love twice (c), then the second document’s TFIDF score is 0.045:

(2/75) * log(100/2) = 0.0453

Thus, the second document is considered more relevant than the first, and by extension, the second document is probably more “about” love than the first. For our purposes relevance and “aboutness” are equated with “greatness”. Consequently, in this example, when it comes to the idea of love, the second document is “greater” than the first. To calculate our first Coefficient I sum all 102 Great Idea TFIDF scores for a given document, a statistic called the “overlap score measure”. [7] By comparing the resulting sums I can compare the greatness of the texts as well as examine correlations between Great Ideas. Since items selected for inclusion in the Great books also need to exemplify the “greatest range of imaginative or intellectual content”, I also produce a Coefficient based on a normalized mean for all 102 Great Ideas across the corpus.

Great Ideas Coefficient calculated

To calculate the Great Ideas Coefficient for each of the Great Books I used the following process:

  1. Mirrored versions of Great Books – By searching and browsing the Internet 222 of the 260 Great Books were found and copied locally, giving us a constant (d) equal to 222.
  2. Indexed the corpus – An inverted index was created. I used Solr for this. [8]
  3. Calculated TFIDF for a given Great Idea – First the given Great Idea was stemmed and searched against the the index resulting in a value for f. Each Great Book was retrieved from the local mirror whereby the size of the work (t) was determined as well as the number of times the stem appeared in the work (c). TFIDF was then calculated.
  4. Repeated Step #3 for each of the Great Ideas – Go to Step #3 each of the Great Ideas.
  5. Summed each of the TFIDF scores – The Great Idea TFIDF scores were added together giving us our first Great Ideas Coefficient for a given work.
  6. Saved the result – Each of the individual scores as well as the Great Ideas Coefficient was saved to a database.
  7. Returned to Step #3 for each of the Great Books – Go to Step #3 each of the other works in the corpus.

The end result was a file in the form of a matrix with 222 rows and 104 columns. Each row represents a Great Book. Each column is a local identifier, a Great Ideas TFIDF score, and a book’s Great Ideas Coefficient. [9]

The Great Books analyzed

Sorting the matrix according to the Great Ideas Coefficient is trivial. Upon doing so I see that Kant’s Introduction To The Metaphysics Of Morals and Aristotle’s Politics are the first and second greatest books, respectively. When the matrix is sorted by the love column, I see Plato’s Symposium come out as number one, but Shakespeare claims seven of the top ten items with his collection of Sonnets being the first. When the matrix is sorted by the war column, then Aristophanes’s Peace is the greatest.

Unfortunately, denoting overall greatness in the previous manner is too simplistic because it does not fit the definition of greatness posited by Hutchins. The Great Books are expected to be great because they exemplify the “greatest range of imaginative or intellectual content”. In other words, the Great Books are great because they discuss and elaborate upon a wide spectrum of the Great Ideas, not just a few. Ironically, this does not seem to be the case. Most of the Great Books have many Great Idea scores equal to zero. In fact, at least two of the Great Ideas – cosmology and universal – have TFIDF scores equal to zero across the entire corpus, as illustrated by Figure 1. This being the case, I might say that none of the Great Books are truly great because none of them significantly discuss the totality of the Great Ideas.

box plots of great ideas
Figure 1 – Box plot scores of Great Ideas

To take this into account and not allow the value of the Great Idea Coefficient to be overwhelmed by one or two Great Idea scores, I calculated the mean TFIDF score for each of the Great Ideas across the matrix. This vector represents an imaginary but “typical” Great Book. I then compared the Great Idea TFIDF scores for each of the Great Books with this central quantity to determine whether or not it is above or below the typical mean. After graphing the result I see that Aristotle’s Politics is still the greatest book with Hegel’s Philosophy Of History being number two, and Plato’s Republic being number three. Figure 2 graphically illustrates this finding, but in a compressed form. Not all works are listed in the figure.

normalized great books
Figure 2 – Individual books compared to the “typical” Great Book

Summary

How “great” are the Great Books? The answer depends on what qualities a person wants to measure. Aristotle’s Politics is great in many ways. Shakespeare is great when it comes to the idea of love. The calculation of the Great Ideas Coefficient is one way to compare & contrast texts in a corpus – “syntopical reading” in a digital age.

Notes

[1] Hutchins, Robert Maynard. 1952. Great books of the Western World. Chicago: Encyclopædia Britannica.

[2] Ibid. Volume 1, page xiv.

[3] Ibid. Volume 2, page xi.

[4] Moretti, Franco. 2005. Graphs, maps, trees: abstract models for a literary history. London: Verso, page 1.

[5] Hutchins, op. cit. Volume 3, page 1220.

[6] Manning, Christopher D., Prabhakar Raghavan, and Hinrich Schütze. 2008. An introduction to information retrieval. Cambridge: Cambridge University Press, page 109.

[7] Ibid.

[8] Solr – http://lucene.apache.org/solr/

[9] This file – the matrix of identifiers and scores – is available at http://bit.ly/cLmabY, but a more useful and interactive version is located at http://bit.ly/cNVKnE

Code4Lib Conference, 2011

March 12th, 2011

This posting documents my experience at the 2011 Code4Lib Conference, February 8-10 in Bloomington (Indiana). In a sentence, the Conference was well-organized, well-attended, and demonstrated the over-all health and vitality of this loosely structured community. At the same time I think the format of the Conference will need to evolve if it expects to significantly contribute to the library profession.

student center
student center
computers
computers
Code4Libbers
Code4Libbers

Day #1 (Tuesday, February 8)

The Conference officially started on Tuesday, February 8 after the previous day’s round of pre-conference activities. Brad Wheeler (Indiana University) gave the introductory remarks. He alluded to the “new normal”, and said significant change only happens when there are great leaders or financial meltdowns such as the one we are currently experiencing. In order to find stability in the current environment he advocated true dependencies and collaborations, and he outlined three tensions: 1) innovation versus solutions at scale, 2) local-ness and cloudiness, and 3) propriety verus open. All of these things, he said, are false dichotomies. “There needs to be a balance and mixture of all these tension.” Wheeler used his experience with Kuali as an example and described personal behavior, a light-weight organization, and local goals as the “glue” making Kuali work. Finally, he said the library community needs to go beyond “toy” projects and create something significant.

The keynote address, Critical collaborations: Programmers and catalogers? Really?, was given by Diane Hillman (Metadata Management). In it she advocated greater collaboration between the catalogers and coders. “Catalogers and coders do not talk with each other. Both groups get to the nitty-gritty before their is an understanding of the problem.” She said change needs to happen, and it should start within our own institutions by learning new skills and having more cross-departmental meetings. Like Wheeler, she had her own set of tensions: 1) “cool” services versus the existing online public access catalog, and 2) legacy data versus prospective data. She said both communities have things to learn from each other. For example, catalogers need to learn to use data that is not created by catalogers, and catalogers need not always look for leadership from “on high”. I asked what the coders needed to learn, but I wasn’t sure what the answer was. She strongly advocated RDA (Resource Description and Access), and said, “It is ready.” I believe she was looking to the people in the audience as people who could create demonstration projects to show to the wider community.

Karen Coombs (OCLC) gave the next presentation, Visualizing library data. In it she demonstrated a number of ways library information can be graphed through the use of various mash-up technologies: 1) a map of holdings, 2) QR codes describing libraries, 3) author timelines, 4) topic timelines, 5) FAST headings in a tag cloud, 6) numbers of libraries, 7) tree relationships between terms, and 8) pie charts of classifications. “Use these things to convey information that is not a list of words”.

In Hey, Dilbert, where’s my data?”, Thomas Barker (University of Pennsylvania) described how he is aggregating various library data sets into a single source for analysis — http://code.google.com/p/metridoc/

Tim McGeary (Lehigh University) shared a Kuali update in Kuali OLE: Architecture of diverse and linked data. OLE (Open Library Environment) is the beginnings of an open source library management system. Coding began this month (February) with goals to build community, implement a “next-generation library catalog”, re-examine business operations, break away from print models of doing things, create an enterprise-level system, and reflect the changes in scholarly work. He outlined the structure of the system and noted three “buckets” for holding different types of content: 1) descriptive — physical holdings, 2) semantic — conceptual content, and 3) relational — financial information. They are scheduled to release their first bits of code by July.

Cary Gordon (The Cherry Hill Company) gave an overview of Drupal 7 functionality in Drupal 7 as a rapid application development tool. Of most interest to me was the Drupal credo, “Sacrifice the API. Preserve the data.” In the big scheme of things, this makes a lot of sense to me.

After lunch first up was Josh Bishoff (University of Illinois) with Enhancing the mobile experience: mobile library services at Illinois. The most important take-away was the importance between a mobile user experience and a desktop user experience. They are not the same. “This is not a software problem but rather an information architecture problem.”

Scott Hanrath (University of Kansas) described his participation in the development of Anthologize in One week, one tool: Ultra-rapid open sources development among strangers. He enumerated the group’s three criteria for success: 1) usefulness, 2) low walls & high ceilings, and 3) feasibility. He also attributed the project’s success to extraordinary outreach efforts — marketing, good graphic design, blurbs, logos, etc.

cabin
cabin
graveyard
graveyard
church
chruch

VuFind beyond MARC: Discovering everything else by Demian Katz (Villanova University) described how VuFind supports the indexing of non-MARC metadata through the use of “record drivers”. Acquire metadata. Map it to Solr fields. Index it while denoting it as a special metadata type. Search. Branch according to metadata type. Display. He used Dublin Core OAI-PMH metadata as an example.

The last formal presentation of the day was entitled Letting in the light: Using Solr as an external search component by Jay Luker and Benoit Thiell (Astrophysics Data System). ADS is a bibliographic information system for astronomers. It uses a pre-print server originally developed at CERN. They desired to keep much of the functionality of the original server as possible but enhance it with Solr indexing. They described how they hacked the two systems to allow the searching and retrieving of millions of records at a time. Of all the presentations at the Conference, this one was the most computer science-like.

The balance of the day was given over to breakout sessions, lightning talks, a reception in the art museum, and craft beer drinking in the hospitality suite. Later that evening I retired to my room and hacked on Twitter feeds. “What do library programmers do for a good time?”

Day #2 (Wednesday, February 9)

The next day began with a presentation by my colleagues at Notre Dame, Rick Johnson and Dan Brubakerhorst. In A Community-based approach to developing a digital exhibit at Notre Dame using the Hydra Framework, they described how they are building and maintaining a digital library framework based on a myriad of tools: Fedora, Active Fedora, Solr, Hydrangia, Ruby, Blacklight. They gave examples of ingesting EAD files. They are working on an ebook management application. Currently they are building a digitized version of city plans.

I think the most inspiring presentation was by Margaret Heller (Dominican University) and Nell Tayler (Chicago Underground) called Chicago Underground Library’s community-based cataloging system. Tayler began and described a library of gray literature. Poems. Comics. All manner of self publications were being collected and loosely cataloged in order to increase the awareness of the materials and record their existence. The people doing the work have little or no cataloging experience. They decided amongst themselves what metadata they were going to use. They wanted to focus on locations and personal characteristics of the authors/publishers of the material. They whole thing reminded me of the times I suggested cataloging local band posters because somebody will find everything interesting at least once.

Gabriel Farrell (Drexel University) described the use of a non-relational database called CouchDB in Beyond sacrilege: A CouchApp catalog. With a REST-ful interface, complete with change log replication and different views, CouchApp seems to be cool as well as “kewl”.

Matt Zumwalt (MediaShelf) in Opinionated metadata: Bringing a bit o sanity to the world of XML metdata described OM which looked like a programatic way of working with XML in Ruby but I thought his advice on how to write good code was more interesting. “Start with people’s stories, not the schema. Allow the vocabulary to reflect the team. And talk to the other team members.”

Ben Anderson (eXtensible Catalog) in Enhancing the performance of extensibility of XC’s metadata services toolkit outlined the development path and improvements to the Metadata Services Toolkit (MST). He had a goal of making the MST faster and more robust, and he did much of this by taking greater advantage of MySQL as opposed to processing various things in Solr.

wires
wires
power supply
power supply
water cooler
water cooler

In Ask Anything! a.k.a. the ‘Human Search Engine moderated by Dan Chudnov (Library of Congress) a number of people stood up, asked the group a question, and waited for an answer. The technique worked pretty well and enabled many people to identify many others who: 1) had similar problems, or 2) offered solutions. For better or for worse, I asked the group if they had any experience with issues of data curation, and I was “rewarded” for my effort with the responsibility to facilitate a birds-of-a-feather session later in the day.

Standing in for Mike Grave, Tim Shearer (University of North Carolina at Chapel Hill) presented GIS on the cheap. Using different content from different sources, Grave is geo-tagging digital objects by assigning them latitudes and longitudes. Once this is done, his Web interfaces read the tagging and place the objects on a map. He is using a Javascript library called Open Layers for the implementation.

In Let’s get small: A Microservices approach to library websites by Sean Hannan (Johns Hopkins University) we learned how a myriad of tools and libraries are being used by Hannan to build websites. While the number of tools and libraries seemed overwhelming I was impressed at the system’s completeness. He was practicing the Unix Way when it comes to website maintenance.

When a person mentions the word “archives” at a computer conference, one of the next words people increasingly mention is “forensics”, and Mark Matienzo (Yale University) in Fiwalk with me: Building emergent pre-ingest workflows for digital archival records using open source-forensic software described how he uses forensic techniques to read, organize, preserve digital media — specifically hard drives. He advocated a specific workflow for doing his work, a process for analyzing the disk’s content with a program called Gumshoe, and Advanced Forensic Framework 4 (AFF4) for doing forensics against file formats. Ultimately he hopes to write an application binding the whole process together.

I paid a lot of attention to David Lacy (Villanova University) when he presented (Yet another) home-grown digital library system, built upon open source XML technologies and metadata standards because the work he has done directly effects a system I am working on colloquially called the “Catholic Portal”. In his system Lacy described a digital library system complete with METS files, a build process, an XML database, and an OAI-PMH server. Content is digitized, described, and ingested into VuFind. I feel embarrassed that I had not investigated this more thoroughly before.

Break-out (birds-of-a-feather) sessions were up next and I facilitated one on data curation. Between ten and twelve of us participated, and in a nutshell we outlined a whole host of activities and issues surrounding the process of data management. After listing them all and listening to the things discussed more thoroughly by the group I was able to prioritize. (“Librarians love lists.”) At the top was, “We won’t get it right the first time”, and I certainly agree. Data management and data curation are the new kids on the block and consequently represent new challenges. At the same time, our profession seems obsessed with the creation of processes, implementations, and not evaluating the processes as needed. In our increasingly dynamic environment, such a way of thinking is not feasible. We will have to practice. We will have to show our ignorance. We will have to experiment. We will have to take risks. We will have to innovate. All of these things assume imperfection from the get go. At the same time the issues surrounding data management have a whole lot in common with issues surrounding just about any other medium. The real challenge is the application of our traditional skills to the current environment. A close second in the priorities was the perceived need for cross-institutional teams — groups of people including the office of research, libraries, computing centers, legal counsel, and of course researchers who generate data. Everybody has something to offer. Everybody has parts of the puzzle. But no one has all the pieces, all the experience, nor all the resources. Successful data management projects — defined in any number of ways — require skills from across the academe. Other items of note on the list included issues surrounding: human subjects, embargoing, institution repository versus discipline repositories, a host of ontologies, format migration, storage and back-up versus preservation and curation, “big data” and “little data”, entrenching one’s self in the research process, and unfunded mandates.

text mining
text mining

As a part of the second day’s Lighting Talks I shared a bit about text mining. I demonstrated how the sizes of texts — measured in words — could be things we denote in our catalogs thus enabling people to filter results in an additional way. I demonstrated something similar with Fog, Flesch, and Kincaid scores. I illustrated these ideas with graphs. I alluded to the “colorfulness” of texts by comparing & contrasting Thoreau with Austen. I demonstrated the idea of “in the same breath” implemented through network diagrams. And finally, I tried to describe how all of these techniques could be used in our “next generation library catalogs” or “discovery systems”. The associated video, here, was scraped from the high quality work done by the University of Indiana. “Thanks guys!”

At the end of the day we were given the opportunity to visit the University’s data center. It sounded a lot like a busman’s holiday to me so I signed up for the 6 o’clock show. I got on the little bus with a few other guys. One was from Australia. Another was from Florida. They were both wondering whether or not the weather was cold. It being around 10° Fahrenheit I had to admit it was. The University is proud of their data center. It can withstand tornado-strength forces. It is built into the side of a hill. It is only have full, if that, which is another way of saying, “They have a lot of room to expand.” We saw the production area. We saw the research area. I was hoping to see lots of blinking lights and colorful, twisty cables, but the lights were few and the cables were all blue. We saw Big Red. I wanted to see where the network came in. “It is over there, in that room”. Holding up my hands I asked, “How big is the pipe?”. “Not very large,” was the reply, “and the fiber optic cable is only the size of a piece of hair.” It thought the whole thing was incongruous. All this infrastructure and it literally hangs on the end of a thread. One of the few people I saw employed by the data center made a comment while I was taking photographs. “Those are the nicest packaged cables you will ever see.” She was very proud of her handiwork, and I was happy to take a few pictures of them.

Big Red
Big Red
generator
generator
wires
wires

Day #3 (Thursday, February 10)

The last day of the conference began with a presentation by Jason Casden and Joyce Chapman (North Carolina State University Libraries) with Building a open source staff-facing tablet app for library assessment. In it they first described how patron statistics were collected. Lots of paper. Lots of tallies. Lots of data entry. Little overall coordination. To resolve this problem they created a tablet-based tool allowing the statistics collector to roam through the library, quickly tally how many people were located where and doing what, and update a centralized database rather quickly. Their implementation was an intelligent use of modern technology. Kudos.

Ian Mulvany (Medeley) was a bit of an entrepreneur when he presented Medeley’s API and university libraries: Three example to create value on behalf of Jan Reichelt. His tool, Medeley, is intended to solve real problems for scholars: making them more efficient as writers, and more efficient as discoverers. To do this he provides a service where PDF files are saved centrally, analyzed for content, and enhanced through crowd sourcing. Using Medeley’s API things such as reading lists, automatic repository deposit, or “library dashboard” applications could be written. As of this writing Medeley is sponsoring a contest with cash prizes to see who can create the most interesting application from their API. Frankly, the sort of application described by Reichelt is the sort of application I think the library community should have created a few years ago.

In Practical relevancy testing, Naomi Dushay (Stanford University) advocated doing usability testing against the full LAMP stack. To do this she uses a program called Cucumber to design usability tests, run them, look at the results, adjust software configurations, and repeat.

Kevin Clarke (NESCent) in Sharing between data repositories first compared & contrasted two repository systems: Dryad and TreeBase. Both have their respective advantages & disadvantages. As a librarian he understands why it is good idea to have the same content in both systems. To this end he outlined and described how such a goal could be accomplished using a file packaging format called BagIt.

The final presentation of the conference was given by Eric Hellman (Gluejar, Inc) and called Why (Code4) libraries exist. In it he posited that more than half of the books sold in the near future will be in ebook format. If this happens, then, he asked, will libraries become obsolete? His answer was seemingly both no and yes. “Libraries need to change in order to continue to exists, but who will drive this change? Funding agencies? Start-up companies? Publishers? OCLC? ILS vendors?” None of these things, he says. Instead, it may be the coders but we (the Code4Lib community) have a number of limitations. We are dispersed, poorly paid, self-trained, and too practical. In short, none of the groups he outlined entirely have what it takes to keep libraries alive. On the other hand, he said, maybe libraries are not really about books. Instead, maybe, they are about space, people, and community. In the end Hellman said, “We need to teach, train, and enable people to use information.”

conference center
conference center
bell
bell
hidden flywheel
hidden flywheel

Summary

All in all the presentations were pretty much what I expected and pretty much what was intended. Everybody was experiencing some sort of computing problem in their workplace. Everybody used different variations of the LAMP stack (plus an indexer) to solve their problems. The presenters shared their experience with these solutions. Each presentation was like variations of a 12-bar blues. A basic framework is assumed, and the individual uses the framework to accomplish to create beauty. If you like the idea of the blues framework, then you would have liked the Code4Lib presentations. I like the blues.

In the past eight months I’ve attended at least four professional conferences: Digital Humanities 2010 (July), ECDL 2010 (September), Data Curation 2010 (December), and Code4Lib 2011 (February). Each one had about 300 people in attendance. Each one had something to do with digital libraries. Two were more academic in nature. Two were more practical. All four were communities unto themselves; at each conference there were people of the in-crowd, new comers, and folks in between. Many, but definitely not most, of the people I saw were a part of the other conferences but none of them were at all four. All of the conferences shared a set of common behavioral norms and at the same time owned a set of inside jokes. We need to be careful and not go around thinking our particular conference or community is the best. Each has something to offer the others. I sincerely do not think there is a “best” conference.

The Code4Lib community has a lot to offer the wider library profession. If the use of computers in libraries is only going to grow (which is an understatement), then a larger number of people who practice librarianship will need/want to benefit from Code4Lib’s experience. Yet the existing Code4Lib community is reluctant to change the format of the conference to accomodate a greater number of people. Granted, larger numbers of attendees make it more difficult to find venues, enable a single shared conference experience, and necessitates increased governance and bureaucracy. Such are the challenges of a larger group. I think the Code4Lib community is growing and experiencing growing pains. The mailing list increases by at least one or two new subscribers every week. The regional Code4Lib meetings continue. The journal is doing just fine. Code4Lib is a lot like the balance of the library profession. Practical. Accustomed to working on a shoe string. Service oriented. Without evolving in some way, the knowledge of Code4Libbers is not going to have a substancial effect on the wider library community. This makes me sad.

Next year’s conference — Code4Lib 2012 — will be held in Seattle (Washington). See you there?

wires
wires
self-portrait
self-portrait

Foray’s into parts-of-speech

February 5th, 2011

This posting is the first of my text mining essays focusing on parts-of-speech. Based on the most rudimentary investigations, outlined below, it seems as if there is not much utility in the classification and description of texts in terms of their percentage use of parts-of-speech.

Background

For the past year or so I have spent a lot of my time counting words. Many of my friends and colleagues look at me strangely when I say this. I have to admit, it does sound sort of weird. On the other hand, the process has enabled me to easily compare & contrast entire canons in terms of length and readability, locate statistically significant words & phrases in individual works, and visualize both with charts & graphs. Through the process I have developed two Perl modules (Lingua::EN::Ngram and Lingua::Concordance), and I have integrated them into my Alex Catalogue of Electronic Texts. Many people are still skeptical about the utility of these endeavors, and my implementations do not seem to be compelling enough to sway their opinions. Oh well, such is life.

My ultimate goal is to figure out ways to exploit the current environment and provide better library service. The current environment is rich with full text. It abounds. I ask myself, “How can I take advantage of this full text to make the work of students, teachers, and scholars both easier and more productive?” My current answer surrounds the creation of tools that take advantage of the full text — making it easier for people to “read” larger quantities of information, find patterns in it, and through the process create new knowledge.

Much of my work has been based on rudimentary statistics with little regard to linguistics. Through the use of computers I strive to easily find patterns of meaning across works — an aspect of linguistics. I think such a thing is possible because the use of language assumes systems and patterns. If it didn’t then communication between ourselves would be impossible. Computers are all about systems and patterns. They are very good at counting and recording data. By using computers to count and record characteristics of texts, I think it is possible to find patterns that humans overlook or don’t figure as significant. I would really like to take advantage of core reference works which are full of meaning — dictionaries, thesauri, almanacs, biographies, bibliographies, gazetteers, encyclopedias, etc. — but the ambiguous nature of written language makes the automatic application of such tools challenging. By classifying individual words as parts-of-speech (POS), some of this ambiguity can be reduced. This posting is my first foray into this line of reasoning, and only time will tell if it is fruitful.

Comparing parts-of-speech across texts

My first experiment compares & contrasts POS usage across texts. “To what degree are there significant differences between authors’ and genres’ usage of various parts-of-speech?”, I asked myself. “Do some works contain a greater number of nouns, verbs, and adjectives than others?” If so, then maybe this would be one way to differentiate works, and make it easier for the student to both select a work for reading as well as understand its content.

POS tagging

To answer these questions, I need to first identify the POS in a document. In the English language there are eight generally accepted POS: 1) nouns, 2) pronouns, 3) verbs, 4) adverbs, 5) adjectives, 6) prepositions, 7) conjunctions, and 8) interjections. Since I am a “lazy Perl programmer”, I sought a POS tagger and in the end settled on one called Lingua::TreeTagger — a full-featured wrapper around a command line driven application called Tree Tagger. Using a process called the Hidden Markov Model, TreeTagger systematically goes through a document and guesses the POS for a given word. According to the research, it can do this with 96% accuracy because is has accurately modeled the systems and patterns of the English language alluded to above. For example, it knows that sentences begin with capital letters and end with punctuation marks. It knows that capitalized words in the middle of sentences are the names of things and the names of things are nouns. It knows that most adverbs end in “ly”. It knows that adjectives often precede nouns. Similarly, it knows the word “the” also precedes nouns. In short, it has done its best to model the syntactical nature of a number of languages and it uses these models to denote the POS in a document.

For example, below is the first sentence from Abraham Lincoln’s Gettysburg Address:

Four score and seven years ago our fathers brought forth on this continent, a new nation, conceived in Liberty, and dedicated to the proposition that all men are created equal.

Using Lingua::TreeTagger it is trivial to convert the sentence into the following XML snippet where each element contains two attributes (a lemma of the word in question and its POS) and the word itself:

<pos><w lemma="Four" type="CD">Four</w> <w lemma="score" type="NN">score</w> <w lemma="and" type="CC">and</w> <w lemma="seven" type="CD">seven</w> <w lemma="year" type="NNS">years</w> <w lemma="ago" type="RB">ago</w> <w lemma="our" type="PP$">our</w> <w lemma="father" type="NNS">fathers</w> <w lemma="bring" type="VVD">brought</w> <w lemma="forth" type="RB">forth</w> <w lemma="on" type="IN">on</w> <w lemma="this" type="DT">this</w> <w lemma="continent" type="NN">continent</w> <w lemma="," type=",">,</w> <w lemma="a" type="DT">a</w> <w lemma="new" type="JJ">new</w> <w lemma="nation" type="NN">nation</w> <w lemma="," type=",">,</w> <w lemma="conceive" type="VVN">conceived</w> <w lemma="in" type="IN">in</w> <w lemma="Liberty" type="NP">Liberty</w> <w lemma="," type=",">,</w> <w lemma="and" type="CC">and</w> <w lemma="dedicate" type="VVN">dedicated</w> <w lemma="to" type="TO">to</w> <w lemma="the" type="DT">the</w> <w lemma="proposition" type="NN">proposition</w> <w lemma="that" type="IN/that">that</w> <w lemma="all" type="DT">all</w> <w lemma="man" type="NNS">men</w> <w lemma="be" type="VBP">are</w> <w lemma="create" type="VVN">created</w> <w lemma="equal" type="JJ">equal</w> <w lemma="." type="SENT">.</w></pos>

Each POS is represented by a different code. TreeTagger uses as many as 58 codes. Some of the less obscure are: CD for cardinal number, CC for conjunction, NN for noun, NNS for plural noun, JJ for adjective, VBP for the verb to be in the third-person plural, etc.

Using a slightly different version of the same trivial code, Lingua::TreeTagger can output a delimited stream where each line represents a record and the delimited values are words, lemmas, and POS. The first ten records from the sentence above are displayed below:

Word Lemma POS
Four Four CD
score score NN
and and CC
seven seven CD
years year NNS
ago ago RB
our our PP$
fathers father NNS
brought bring VVD
forth forth RB

In the end I wrote a simple program – tag.pl — taking a file name as input and streaming to standard output the tagged text in delimited form. Executing the code and saving the output to a file is simple:

$ bin/tag.pl corpus/walden.txt > pos/walden.pos

Consequently, I now have a way to quickly and easily denote the POS for each word in a given plain text file.

Counting and summarizing

Now that the POS of a given document are identified, the next step is to count and summarize them. Counting is something at which computers excel, and I wrote another program — summarize.pl — to do the work. The program’s input takes the following form:

summarize.pl <all|simple|other|pronouns|nouns|verbs|adverbs|adjectives> <t|l> <filename>

The first command line argument denotes what POS will be output. “All” denotes the POS defined by Tree Tagger. “Simple” denotes Tree Tagger POS mapped to the eight generally accepted POS of the English language. The use of “nouns”, “pronouns”, “verbs”, “adverbs”, and “adjectives” tells the script to output the tokens (words) or lemmas in each of these classes.

The second command line argument tells the script whether to tally tokens (words) or lemmas when counting specific items.

The last argument is the file to read, and it is expected to be in the form of tag.pl’s output.

Using summarize.pl to count the simple POS in Lincoln’s Address, the following output is generated:

$ summarize.pl simple t address.pos
noun 41
pronoun 29
adjective 21
verb 51
adverb 31
determiner 35
preposition 39
conjunction 11
interjection 0
symbol 2
punctuation 39
other 11

In other words, of the 272 words found in the Gettysburg Address 41 are nouns, 29 are pronouns, 21 are adjectives, etc.

Using a different from of the script, a list of all the pronouns in the Address, sorted by the number of occurances, can be generated:

$ summarize.pl pronouns t address.pos
we 10
it 5
they 3
who 3
us 3
our 2
what 2
their 1

In other words, the word “we” — a particular pronoun — was used 10 times in the Address.

Consequently, I now have tool enabling me to count the POS in a document.

Preliminary analysis

I now have the tools necessary to answer one of my initial questions, “Do some works contain a greater number of nouns, verbs, and adjectives than others?” To answer this I collected nine sets of documents for analysis:

  1. Henry David Thoreau’s Excursions (73,734 words; Flesch readability score: 57 )
  2. Henry David Thoreau’s Walden (106,486 words; Flesch readability score: 55 )
  3. Henry David Thoreau’s A Week on the Concord and Merrimack Rivers (117,670 words; Flesch readability score: 56 )
  4. Jane Austen’s Sense and Sensibility (119,625 words; Flesch readability score: 54 )
  5. Jane Austen’s Northanger Abbey (76,497 words; Flesch readability score: 58 )
  6. Jane Austen’s Emma (156,509 words; Flesch readability score: 60 )
  7. all of the works of Plato (1,162,460 words; Flesch readability score: 54 )
  8. all of the works of Aristotle (950,078 words; Flesch readability score: 50 )
  9. all of the works of Shakespeare (856,594 words; Flesch readability score: 72 )

Using tag.pl I created POS files for each set of documents. I then used summary.pl to output counts of the simple POS from each POS file. For example, after creating a POS file for Walden, I summarized the results and learned that it contains 23,272 nouns, 10,068 pronouns, 8,118 adjectives, etc.:

$ summarize.pl simple t walden.pos
noun 23272
pronoun 10068
adjective 8118
verb 17695
adverb 8289
determiner 13494
preposition 16557
conjunction 5921
interjection 37
symbol 997
punctuation 14377
other 2632

I then copied this information into a spreadsheet and calculated the relative percentage of each POS discovering that 19% of the words in Walden are nouns, 8% are pronouns, 7% are adjectives, etc. See the table below:

POS %
noun 19
pronoun 8
adjective 7
verb 15
adverb 7
determiner 11
preposition 14
conjunction 5
interjection 0
symbol 1
punctuation 12
other 2

I repeated this process for each of the nine sets of documents and tabulated them here:

POS Excursions Rivers Walden Sense Northanger Emma Aristotle Shakespeare Plato Average
noun 20 20 19 17 17 17 19 25 18 19
verb 14 14 15 16 16 17 15 14 15 15
punctuation 13 13 12 15 15 15 11 16 13 14
preposition 13 13 14 13 13 12 15 9 14 13
determiner 12 12 11 7 8 7 13 6 11 10
pronoun 7 7 8 12 11 11 5 11 7 9
adverb 6 6 7 8 8 8 6 6 6 7
adjective 7 7 7 5 6 6 7 5 6 6
conjunction 5 5 5 3 3 3 5 3 6 4
other 2 2 2 3 3 3 3 3 3 3
symbol 1 1 1 1 1 0 1 2 1 1
interjection 0 0 0 0 0 0 0 0 0 0
Percentage and average of parts-of-speech usage in 9 works or corpra

The result was very surprising to me. Despite the wide range of document sizes, and despite the wide range of genres, the relative percentages of POS are very similar across all of the documents. The last column in the table represents the average percentage of each POS use. Notice how the each individual POS value differs very little from the average.

This analysis can be illustrated in a couple of ways. First, below are nine pie charts. Each slice of each pie represents a different POS. Notice how all the dark blue slices (nouns) are very similar in size. Notice how all the red slices (verbs), again, are very similar. The only noticeable exception is in Shakespeare where there is a greater number of nouns and pronouns (dark green).


Thoreau’s Excursions

Thoreau’s Walden

Thoreau’s Rivers

Austen’s Sense

Austen’s Northanger

Austen’s Emma

all of Plato

all of Aristotle

all of Shakespeare

The similarity across all the documents can be further illustrated with a line graph:

Across the X axis is each POS. Up and down the Y axis is the percentage of usage. Notice how the values for each POS in each document are closely clustered. Each set of documents uses relatively the same number of nouns, pronouns, verbs, adjectives, adverbs, etc.

Maybe such a relationship between POS is one of the patterns of well-written documents? Maybe it is representative of works standing the test of time? I don’t know, but I doubt I am the first person to make such an observation.

Conclusion

My initial questions were, “To what degree are there significant differences between authors’ and genres’ usage of various parts-of-speech?” and “Do some works contain a greater number of nouns, verbs, and adjectives than others?” Based on this foray and rudimentary analysis the answers are, “No, there are not significant differences, and no, works do not contain different number of nouns, verbs, adjectives, etc.”

Of course, such a conclusion is faulty without further calculations. I will quite likely commit an error of induction if I base my conclusions on a sample of only nine items. While it would require a greater amount of effort on my part, it is not beyond possibility for me to calculate the average POS usage for every item in my Alex Catalogue. I know there will be some differences — especially considering the items having gone through optical character recognition — but I do not know the degree of difference. Such an investigation is left for a later time.

Instead, I plan to pursue a different line of investigation. The current work examined how texts were constructed, but in actuality I am more interested in the meanings works express. I am interested in what they say more than how they say it. Such meanings may be gleaned not so much from gross POS measurements but rather the words used to denote each POS. For example, the following table lists the 10 most frequently used pronouns and the number of times they occur in four works. Notice the differences:

Walden Rivers Northanger Sense
I (1,809) it (1,314) her (1,554) her (2,500)
it (1,507) we (1,101) I (1,240) I (1,917)
my (725) his (834) she (1,089) it (1,711)
he (698) I (756) it (1,081) she (1,553)
his (666) our (677) you (906) you (1,158)
they (614) he (649) he (539) he (1,068)
their (452) their (632) his (524) his (1,007)
we (447) they (632) they (379) him (628)
its (351) its (487) my (342) my (598)
who (340) who (352) him (278) they (509)

While the lists are similar, they are characteristic of work from which they came. The first — Walden — is about an individual who lives on a lake. Notice the prominence of the word “I” and “my”. The second — Rivers — is written by the same author as the first but is about brothers who canoe down a river. Notice the higher occurrence of the word “we” and “our”. The later two works, both written by Jane Austin, are works with females as central characters. Notice how the words “her” and “she” appear in these lists but not in the former two. (Compare these lists of pronouns with the list from Lincoln’s Address and even more interesting things appear.) It looks as if there are patterns or trends to be measured here.

‘More later.

Visualizing co-occurrences with Protovis

January 9th, 2011

This posting describes how I am beginning to visualize co-occurrences with a Javascript library called Protovis. Alternatively, I an trying to answer the question, “What did Henry David Thoreau say in the same breath when he used the word ‘walden’?”

“In the same breath”

Network diagrams are great ways to illustrate relationships. In such diagrams nodes represent some sort of entity, and lines connecting nodes represent some sort of relationship. Nodes clustered together and sharing many lines denote some kind of similarity. Conversely, nodes whose lines are long and not interconnected represent entities outside the norm or at a distance. Network diagrams are a way of visualizing complex relationships.

Are you familiar with the phrase “in the same breath”? It is usually used to denote the relationship between one or more ideas. “He mentioned both ‘love’ and ‘war’ in the same breath.” This is exactly one of the things I want to do with texts. Concordances provide this sort of functionality. Given a word or phrase, a concordance will find the query in a corpus and display the words on either side of it. A KWIK (key word in context) index, concordances make it easier to read how words or phrases are used in relationship with their surrounding words. The use of network diagrams seem like good idea to see — visualize — how words or phrases are used within the context of surrounding words.

Protovis is a Javascript charting library developed by the Stanford Visualization Group. Using Protovis a developer can create all sorts of traditional graphs (histograms, box plots, line charts, pie charts, scatter plots) through a relatively easy-to-learn API (application programmer interface). One of the graphs Protovis supports is an interactive simulation of network diagrams called “force-directed layouts“. After experiencing some of the work done by a few of my colleagues (“Thank you Michael Clark and Ed Summers“), I wondered whether or not network diagrams could be used to visualize co-occurrences in texts. After discovering Protovis, I decided to try to implement something along these lines.

Implementation

The implementation of the visualization requires the recursive creation of a term matrix. Given a word (or regular expression), find the query in a text (or corpus). Identify and count the d most frequently used words within b number of characters. Repeat this process d times with each co-occurrence. For example, suppose the text is Walden by Henry David Thoreau, the query is “spring”, d is 5, and b is 50. The implementation finds all the occurrences of the word “spring”, gets the text 50 characters on either side of it, finds the 5 most commonly used words in those characters, and repeats the process for each of those words. The result is the following matrix:

spring day morning first winter
day days night every today
morning spring say day early
first spring last yet though
winter summer pond like snow

Thus, the most common co-occurrences for the word “spring” are “day”, “morning”, “first”, and “winter”. Each of these co-occurrences are recursively used to find more co-occurrences. In this example, the word “spring” co-occurs with times of day and seasons. These words then co-occur with more times of day and more seasons. Similarities and patterns being to emerge. Depending on the complexity of a writer’s sentence structure, the value of b (“breath”) may need to be increased or decreased. As the value of d (“detail”) is increased or decreased so does the number of co-occurrences to return.

Once this matrix is constructed, Protovis requires it to be converted into a simple JSON (Javascript Object Notation) data structure. In this example, “spring” points to “day”, “morning”, “first”, and “winter”. “Day” points to “days”, “night”, “every”, and “today”. Etc. As terms point to multiples of other terms, a network diagram is manifested, and the magic of Protovis is put to work. See the following illustration:

spring in walden
“spring” in Walden

It is interesting enough to see the co-occurrences of any given word in a text, but it is even more interesting to compare the co-occurrences between texts. Below are a number of visualizations from Thoreau’s Walden. Notice how the word “walden” frequently co-occurs with the words “pond”, “water”, and “woods”. This makes a lot of sense because Walden Pond is a pond located in the woods. Notice how the word “fish” is associated with “pond”, “fish”, and “fishing”. Pretty smart, huh?

walden in walden
“walden” in Walden
fish in walden
“fish” in Walden
woodchuck in walden
“woodchuck” in Walden
woods in walden
“woods” in Walden

Compare these same words with the co-occurrences in a different work by Thoreau, A Week on the Concord and Merrimack Rivers. Given the same inputs the outputs are significantly different. For example, notice the difference in co-occurrences given the word “woodchuck”.

walden in rivers
“walden” in Rivers
fish in rivers
“fish” in Rivers
woodchuck in walden
“woodchuck” in Rivers
woods in rivers
“woods” in Rivers

Give it a try

Give it a try for yourself. I have written three CGI scripts implementing the things outlined above:

In each implementation you are given the opportunity to input your own queries, define the “size of the breath”, and the “level of detail”. The result is an interactive network diagram visualizing the most frequent co-occurrences of a given term.

The root of the Perl source code is located at http://infomotions.com/sandbox/network-diagrams/.

Implications for librarianship

The visualization of co-occurrences obviously has implications for text mining and the digital humanities, but it also has implications for the field of librarianship.

Given the current environment where data and information abound in digital form, libraries have found themselves in an increasingly competitive environment. What are libraries to do? Lest they become marginalized, librarians can not rest on their “public good” laurels. Merely providing access to information is not good enough. Everybody feels as if they have plenty of access to information. What is needed are methods and tools for making better use of the data and information they acquire. Implementing text mining and visualization interfaces are one way to accomplish that goal within context of online library services. Do a search in the “online catalog”. Create a subset of interesting content. Click a button to read the content from a distance. Provide ways to analyze and summarize the content thus saving the time of the reader.

Us librarians have to do something differently. Think like an entrepreneur. Take account of your resources. Examine the environment. Innovate and repeat.

MIT’s SIMILE timeline widget

December 20th, 2010

For a good time, I took a stab at learning how to implement a MIT SIMILE timeline widget. This posting describes what I learned.

Background

The MIT SIMILE Widgets are a set of cool Javascript tools. There are tools for implementing “exhibits”, time plots, “cover flow” displays a la iTunes, a couple of other things, and interactive timelines. I have always had a fondness for timelines since college when I created one to help me study for my comprehensive examinations. Combine this interest with the rise of digital humanities and my belief that library data is too textual in nature, I decided to learn how to use the timeline widget. Maybe this tool can be used in Library Land?

timeline
Screen shot of local timeline implementation

Implementation

The family of SIMILE Widgets Web pages includes a number of sample timelines. By playing with the examples you can see the potencial of the tool. Going through the Getting Started guide was completely necessary since the Widget documentation has been written, re-written, and moved to other platforms numerous times. Needless to say, I found the instructions difficult to use. In a nutshell, using the Timeline Widget requires the developer to:

  1. load the libraries
  2. create and modify a timeline object
  3. create a data file
  4. load the data file
  5. render the timeline

Taking hints from “timelines in the wild“, I decided to plot my writings — dating from 1989 to the present. Luckily, just about all of them are available via RSS (Really Simple Syndication), and they include:

Consequently, after writing my implementation’s framework, the bulk of the work was spent converting RSS files into an XML file the widget could understand. In the end I:

  • created an HTML file complete with the widget framework
  • downloaded the totality of RSS entries from all my my RSS feeds
  • wrote a slightly different XSL file for each RSS feed
  • wrote a rudimentary shell script to loop through each XSL/RSS combination and create a data file
  • put the whole thing on the Web

You can see the fruits of these labors on a page called Eric Lease Morgan’s Writings Timeline, and you can download the source code — timeline-2010-12-20.tar.gz. From there a person can scroll backwards and forwards in time, click on events, read an abstract of the writing, and hyperlink to the full text. The items from the Water Collection work in the same way but also include a thumbnail image of the water. Fun!?

Take-aways

I have a number of take-aways. First, my implementation is far from perfect. For example, the dates from the Water Collection are not correctly formatted in the data file. Consequently, different Javascript interpreters render the dates differently. Specifically, the Water Collection links to not show up in Safari, but they do show up in Firefox. Second, the timeline is quite cluttered in some places. There has got to be a way to address this. Third, timelines are a great way to visualize events. From the implementation you can readily see what how often I was writing and on what topics. The presentation makes so much more sense compared to a simple list sorted by date, title, or subject terms.

Library “discovery systems” could benefit from the implementation of timelines. Do a search. Get back a list of results. Plot them on a timeline. Allow the learner, teacher, or scholar to visualize — literally see — how the results of their query compare to one another. The ability to visualize information hinges on the ability to quantify information characteristics. In this case, the quantification is a set of dates. Alas, dates in our information systems are poorly recorded. It seems as if we — the library profession — have made it difficult for ourselves to participate in the current information environment.

Illustrating IDCC 2010

December 8th, 2010

This posting illustrates the “tweets” assigned to the hash tag #idcc10.

I more or less just got back from the 6th International Data Curation Conference that took place in Chicago (Illinois). Somewhere along the line I got the idea of applying digital humanities computing techniques against the conference’s Twitter feed — hash tag #idcc10. After installing a Perl module implementing the Twitter API (Net::Twitter::Lite), I wrote a quick hack, fed the results to Wordle, and got the following word cloud:

idcc10

What sorts of conclusions can you make based on the content of the graphic?

The output static and rudimentary. What I’d really like to do is illustrate the tweets over time. Get the oldest tweets. Illustrate the result. Get the newer tweets. Update the illustration. Repeat for all the tweets. Done. In the end I see some sort of moving graphic where significant words represent bubbles. The size of the bubbles grow in size depending on number of times they are used. Each bubble is attached to other bubbles with a line representing associations. The color of the bubbles might represent parts of speech. Using this technique a person could watch the ebb and flow of the virtual conversation.

For a good time time, you can also download the Perl script used to create the textual output. Called twitter.pl, it is only forty-three lines long and many of those lines are comments.
