MARC Reader: a HyperCard script to demystify the MARC record
The purpose of this article is to demystify the MARC record and list a short HyperCard script that translates a MARC record into an easy-to-read format. Furthermore, this article demonstrates that advanced library applications can be created with simple, readily-available tools; with HyperCard and a bit of investigation any librarian can create their own electronic card catalog.
A copy of the MARC Reader HyperCard stack is available at http://infomotions.com/musings/marc-reader/marc-reader.hqx .
About the MARC record
Since the late '60s, when cataloging information was stored on tape, the MARC record has been the standard format for transferring cataloging information. ("MARC" is an acronym for machine readable cataloging.) Even though it has been a standard for more than two decades, the majority of librarians do not know how to read it.
On one hand, the confusion about the MARC record is comprehensible. At first glance, an unformatted MARC record looks like computer garbage or telecommunications line noise.
After further investigation, the MARC record is a highly structured piece of information. It is like a sentence with a subject, predicate, objects, separated with commas, semicolons, and one period. In data structure language, the MARC record is a hybrid sequential/random access record.
The structure of a MARC record
The MARC record is made up of three parts: the leader, the directory, the bibliographic data. The leader (or subject in our analogy) is always represented by the first 24 characters of each record. The numbers and letters within the leader describe the record's characteristics. For example, the length of the record is in positions 1 to 5. The type of material the record represents (authority, bibliographic, holdings, et cetera) is signified by the character at position 7. More importantly, the characters from positions 13 to 17 represent the base. The base is a number pointing to the position in the record where the bibliographic information begins. See Figure 1.
Figure 1. This is MARC record in raw, communications format. The leader is contained in the first 24 characters. The directory starts at the 25th character and continues until the "ocm". The bibliographic section begins after the directory and continues to the end of the example. The mysterious looking rectangles represent the field delimiters, ASCII codes 29, 30, and 31.
The directory is the second part of a MARC record. (It is the predicate in our analogy.) The directory describes the record's bibliographic information with directory entries. Each entry lists the types of bibliographic information (items called "tags"), how long the bibliographic information is, and where the information is stored in relation to the base. The end of the directory and all variable length fields are marked with a special character, the ASCII character 30.
The last part of a MARC record is the bibliographic information. (It is the object in our sentence analogy.) It is simply all the information (and more) on a catalog card. Each part of the bibliographic information is separated from the rest with the ASCII character 30. Within most of the bibliographic fields are indicators and subfields describing in more detail the fields themselves. The subfields are delimited from the rest of the field with the ASCII character 31.
The end of a MARC record is punctuated with an end-of-record mark, ASCII character 29. The ASCII characters 31, 30, and 29 represent our commas, semicolons, and periods, respectively.
The appendix lists a script from a HyperCard program I call "The MARC Reader". It:
- reads a single MARC record,
- displays the raw data in a field,
- parses out the leader, length, and base,
- reads the directory and puts it into another field, and
- reads and displays the bibliographic data in an easy-to-read format.
The fundamental purpose of The MARC Reader is to demystify the MARC record. It is based on Frederick J. Raithel's article in Small Computers in Libraries 1 and Walt Crawford's tome, MARC for Library Use: Understanding Integrated USMARC .2 (Note: The MARC Reader is designed to read a single, stand-alone MARC record. Many times MARC records are concatenated together. You can easily modify The MARC Reader to contend with this contingency.)
This is how to get The MARC Reader to work for you. You will need HyperCard 2.0 and at least one MARC record. Then:
- Create a new HyperCard 2.0 stack.
- Create two scrolling card fields.
- Name the first card field "theField". Set its font to something like Monaco 9. Size it to take up most of the screen.
- Name the second card field "theDirectory". Hide it.
- Create a card button called "Read MARC" and enter the script from the appendix into this button.
After clicking "Read MARC" and selecting a MARC record, the file will be reformatted and look something like Figure 2.

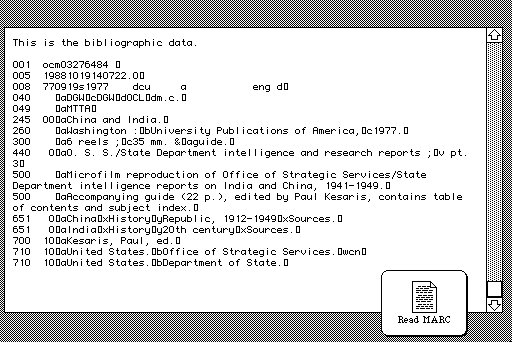

Figure 2. After running the script contained in the button "Read MARC" your MARC record will look something like the above illustration. This is called a tagged format.
The MARC Reader represents the beginning of an automated catalog. With this program and your data it would be a trivial matter to create new cards for each new record and parse the data into individual fields. This exciting exercise is left up to you.
- Raithel, F.J., "READMARC: A simple BASIC program to read MARC bibliographic records," Small Computers in Libraries (April 1987):33-36.
- Walt Crawford, MARC for Library Use: Understanding Integrated USMARC, Second edition. New York: G.K. Hall & Co., 1989.
Appendix: The MARC Reader script
on mouseUp -- initialize some variables put the numToChar of 29 into endOfFile -- ASCII 29 is the end of file mark put the numToChar of 30 into endOfField -- ASCII 30 is the end of subfield mark put the numToChar of 31 into endOfSubfield -- ASCII 31 is the end of file mark put 24 into thePointer -- the begining of the directory put empty into card field theField -- a window to see the record put empty into card field theDirectory -- a storage place for the directory data -- retrieve the raw data answer file "What record do you want to read?" if it is empty then exit mouseUp put it into theFile open file theFile read from file theFile until endOfFile put it into theRawData close file theFile lock screen set cursor to watch put return & "This is MARC record, " & theFile & "." & return into card field theField -- read and display the raw data put return & "This is the raw data." & return after card field theField put theRawData after card field theField -- read and display the LEADER. it is stored in the first 24 characters repeat with i = 1 to 24 put char i of theRawData after theLeader end repeat put return & return & "The leader is " & theLeader after card field theField -- read and display the LENGTH. it is stored in the first five characters repeat with i = 1 to 5 put char i of theRawData after theLength end repeat put return & "The length is " & the value of (theLength) after card field theField -- read and display the BASE. it is stored in characters 13 through 17 repeat with i = 13 to 17 put char i of theRawData after theBase end repeat put the value of (theBase) into theBase put return & "The base is " & theBase after card field theField -- read and display the directory put "Reading the directory...please wait." put return & return & "MARC tag Field offset Offset" after card field theField put return & "-------- ------------ ------" after card field theField repeat forever -- read the tag put empty into theTag repeat with i = 1 to 3 if theCharacter is endOfField then exit repeat add 1 to thePointer put char thePointer of theRawData into theCharacter put theCharacter after theTag end repeat -- exit the repeat loop if the end of field mark was found if theCharacter is endOfField then exit repeat put return & theTag after card field theField -- read the field offset put empty into theFieldOffset repeat with i = 1 to 4 if theCharacter is endOfField then exit repeat add 1 to thePointer put char thePointer of theRawData into theCharacter put theCharacter after theFieldOffset end repeat put " " & theFieldOffset after card field theField -- read the offset put empty into theOffset repeat with i = 1 to 5 if theCharacter is endOfField then exit repeat add 1 to thePointer put char thePointer of theRawData into theCharacter put theCharacter after theOffset end repeat put " " & theOffset after card field theField -- store the directory put theTag & "," & theFieldOffset & "," & theOffset & return after card field theDirectory end repeat -- read and display the bibliographic data put "Reading the bibliographic data...please wait." put return & return & "This is the bibliographic data." & return & return after card field theField put the number of lines in card field theDirectory into theNumberOfLines repeat with i = 1 to theNumberOfLines put item 1 of line i of card field theDirectory into theTag put the value of (item 2 of line i of card field theDirectory) into theFieldOffset put the value of (item 3 of line i of card field theDirectory) + theBase into theOffset put empty into theExtractedData repeat with j = 1 to theFieldOffset put char j + theOffset of theRawData after theExtractedData end repeat put theTag & " " & theExtractedData & return after card field theField end repeat put return & return & return after card field theField hide message end mouseUp
Creator: Eric Lease Morgan <email@example.com>
Source: This article was originally published in Computers in Libraries 11(11):52-55, December 1991.
Date created: 1991-12-01
Date updated: 2004-12-09
Subject(s): HyperCard; MARC (Machine Readable Cataloging); computer programs and scripts; articles;
